Rental LED displays are frequently used equipment for stage performances, exhibitions, and temporary press events. While many clients focus primarily on visual performance, they often overlook the mechanical structure of the cabinets.
In reality, the design of the cabinet structure directly determines installation efficiency, the flatness of the assembled screen, and on-site safety. Today, using MileStrong FR series rental LED display as an example, we will break down the cabinet’s core components to understand the structural design behind rental displays.
The core requirements for rental displays are rapid assembly, precise alignment, ease of handling, and reliable protection. Every structural element of the FR series led screen cabinet is designed with these goals in mind.
Cabinet Structures

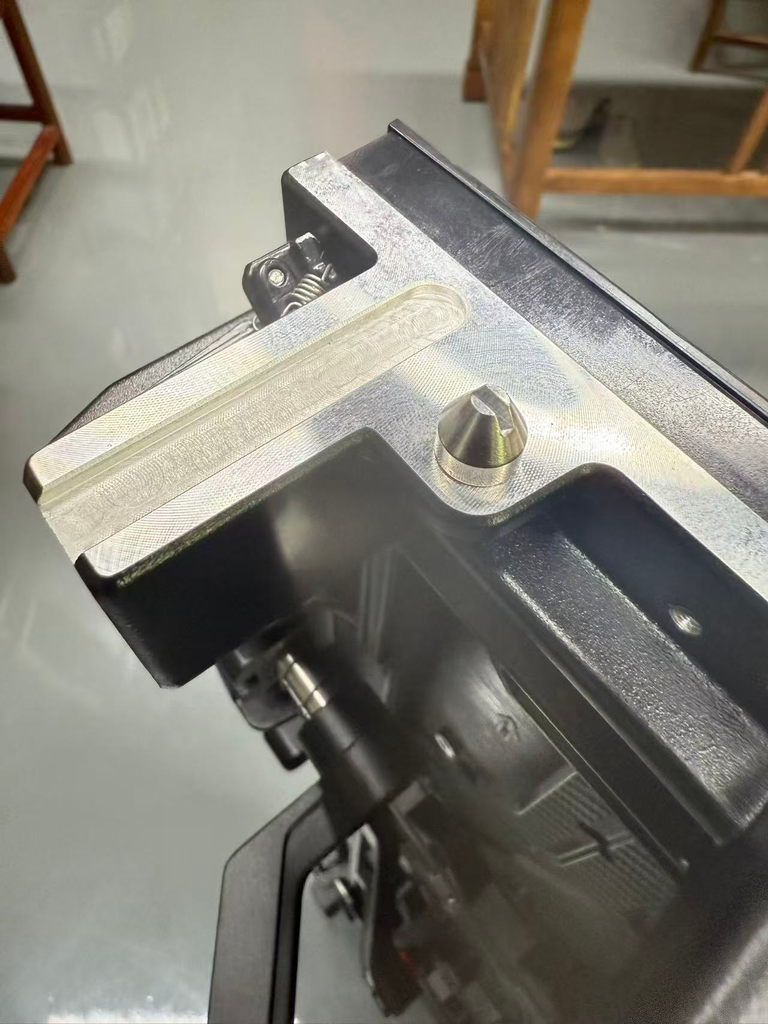

Locating Pin:Enhances Installtion Accuracy
Locating Pins serve as the reference points for cabinet assembly. When multiple cabinets are brought together rapidly, the tapered locating pins guide them into automatic alignment, pre-locking their horizontal and vertical positions. This significantly simplifies manual leveling and minimizes assembly gaps. Even when constructing large-scale displays, these pins ensure the flatness of the entire screen surface, preventing issues such as image misalignment or protruding seams.

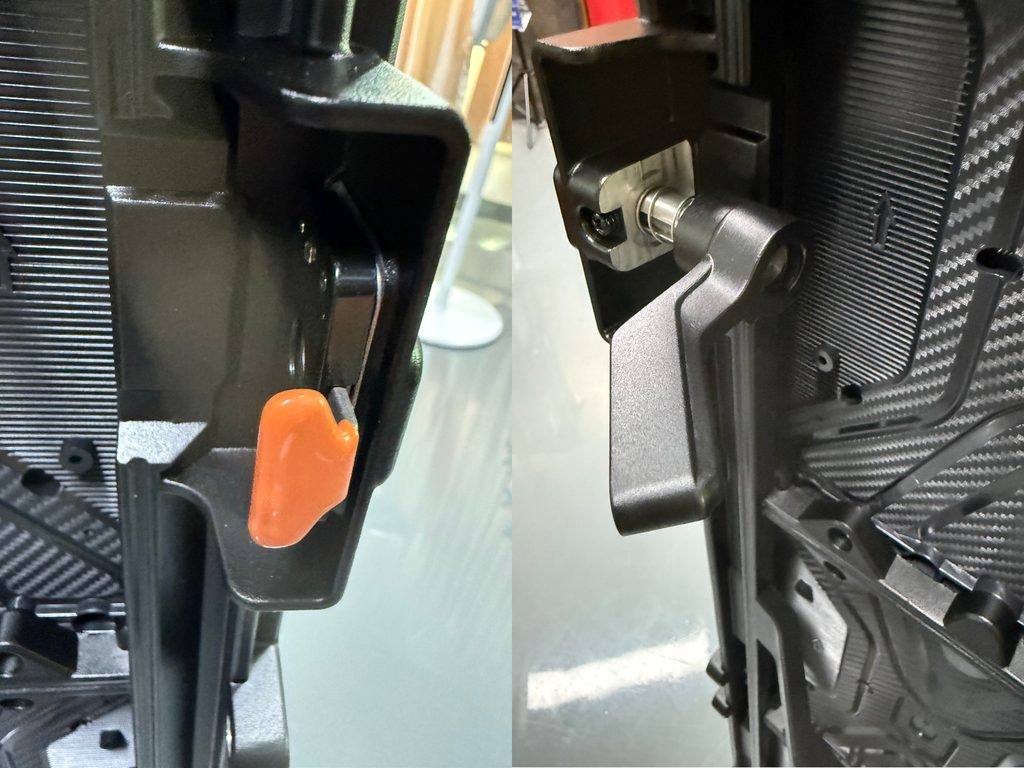

Locking Mechanism:Improve Installation Efficiency
Once positioning is complete, locking latches and quick locks are used to secure the assembly. Their combined use is key to the rapid setup of rental LED screens. The locking latch handles the initial engagement and stabilization, while the quick-lock features a handle mechanism that allows operators to secure the cabinets by hand—without the need for extra tools.
Assembly and disassembly require no screwdrivers, significantly reducing on-site installation time and meeting the demands for rapid setup and teardown at short-term events. Once locked, the cabinets are tightly connected with enhanced vibration resistance, making the system suitable for overhead rigging.

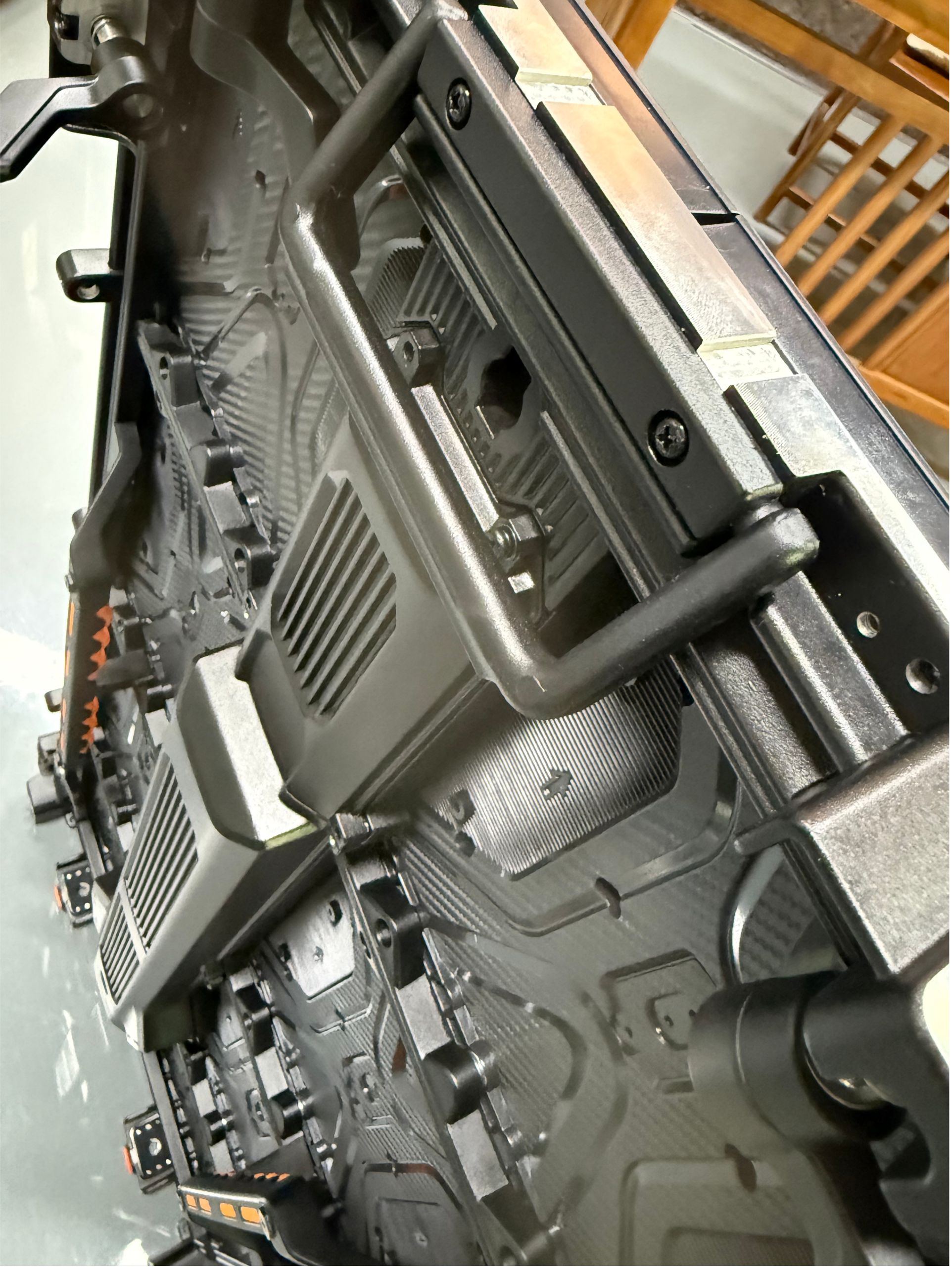

Cabinet Handle:Convenient for Transportation
The cabinet handle facilitates handling. Designed to fit the palm comfortably, the FR series handle allows a single operator to lift the cabinet with ease, reducing the effort required for transport and hoisting into the frame. Securely embedded in the cabinet framework, the handle ensures stable load-bearing and resists loosening during repeated handling or installation, thereby safeguarding the personnel on site.

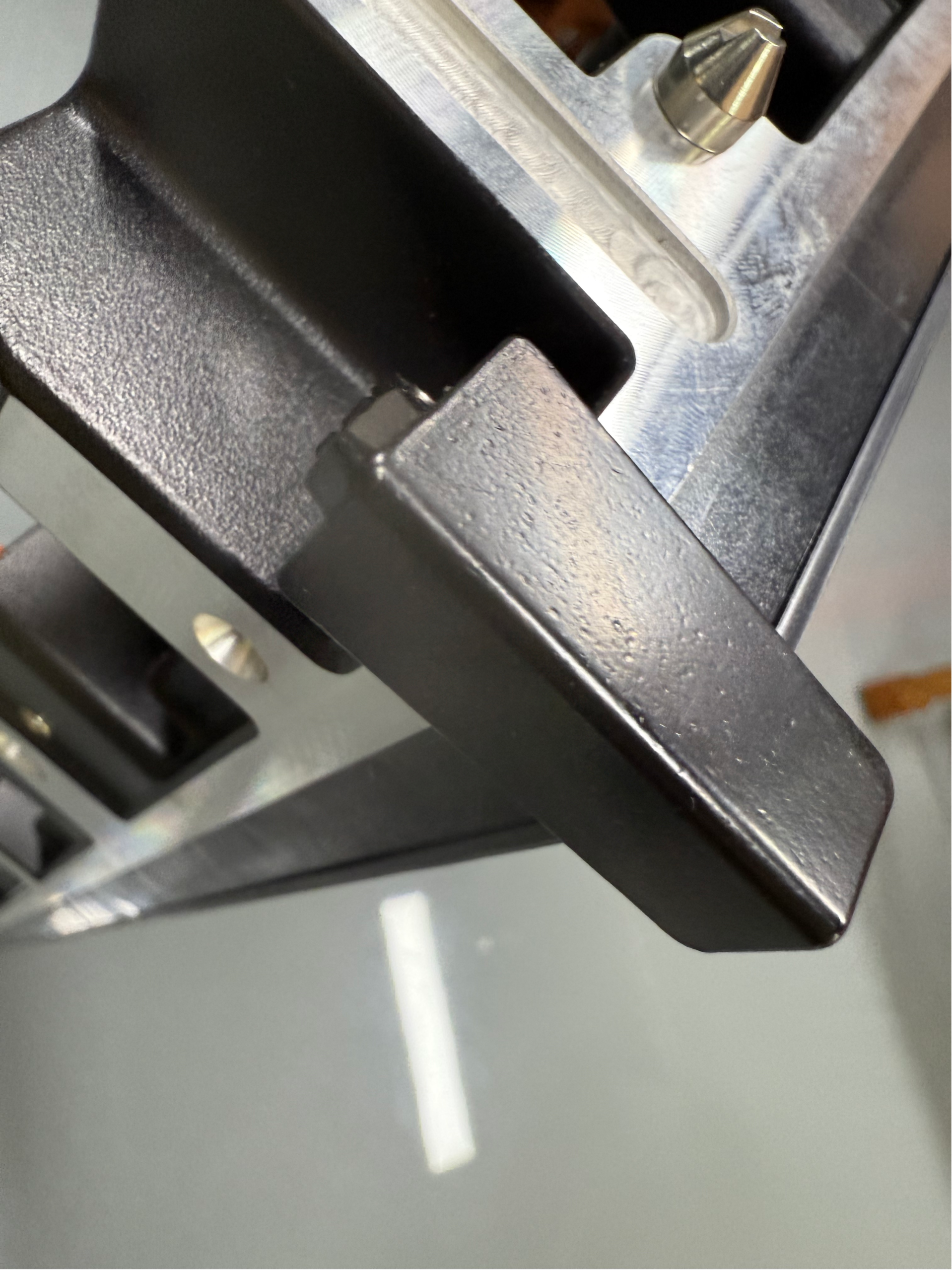

Corner Protector:Collision Prevention
Corner protectors serve as impact-resistant armor for the cabinet. Rental LED screens require frequent transport and handling, and their corners are most susceptible to damage during loading and moving. These protectors encase the cabinet corners to cushion against impacts, preventing deformation and panel scratches, thereby extending the screen’s lifespan and reducing loss-related costs for rental projects.
Summary
The FR series cabinet system integrates positioning, locking and protection into a unified structure. These mechanical components work in concert to deliver a rental display solution characterized by rapid assembly, seamless splicing, and high reliability.
Many rental projects operate under tight schedules, leaving limited time for screen setup. A well-engineered cabinet design not only facilitates installation but also minimizes on-site malfunctions and reduces labor costs. Designed for the global rental market, the MileStrong FR series LED display is suitable for diverse indoor and outdoor applications, including concerts, exhibitions, sporting events, and product launches.
If you are planning a rental LED display project and would like to learn more about the FR series’ load-bearing capacity and rigging solutions, please contact us for detailed technical specifications.
