| Items | D3 Panel Series | D3 Module Series |
| Pixel Pitch (mm) | P3.91 | P3.91 |
| LED Lamp Type | SMD1515 | SMD1515 |
| Panel Size (mm) | 1,000x1,000 | / |
| Module Size (mm) | 250×1,000 | 250×1,000 / 250x1,200/250×1,500 |

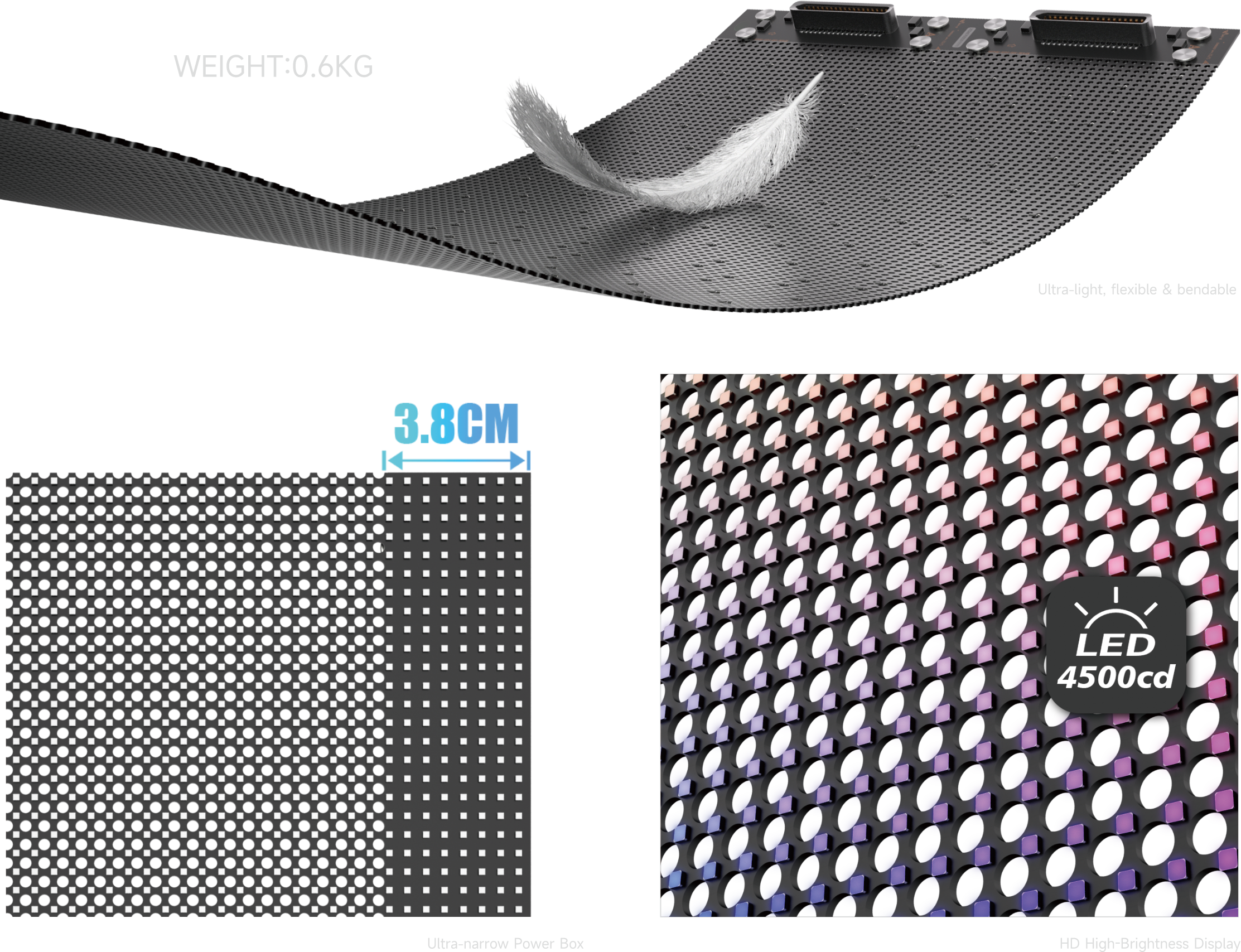

| Module Weight (kg/pcs) | 0.6 | 0.6 |
| Total Weight (kg/panel) | 6 | / |
| White Balance Luminance | ≥4,500 cd/m² | |
| Pixel Density (pixels/m²) | 65536 | |
| Transparency Rate | 0.8 | |
| LED Control System | Synchronous/Asynchronous | |
| Viewing Angle (H/V) | 140°/140° | |
| Grayscale (bit) | 16 | |
| Refresh Rate (Hz) | 7680 | |
| Color Temperature (K) | 5,500–9,300 | |
| LED Chip Lifespan (h) | ≥100,000 | |
| Factory Aging Test | ≥72h continuous aging | |
| Peak Power Consumption (W/m²) | 800 | |
| Average Power Consumption (W/m²) | 240 | |
| Input Voltage | AC110V–AC240V, 50/60Hz | |
| Working Temperature | -20 ℃ ~ 60 ℃ | |
| Working Humidity | 10% ~ 90% RH, no condensation | |
