FR Series

Pixel Pitch (mm): 1.56 / 1.9 / 2.6 / 2.9 / 3.9 (Indoor) 2.6 / 2.9 / 3.9 (Outdoor) Cabinet Size (mm): 500×500 / 500×1,000

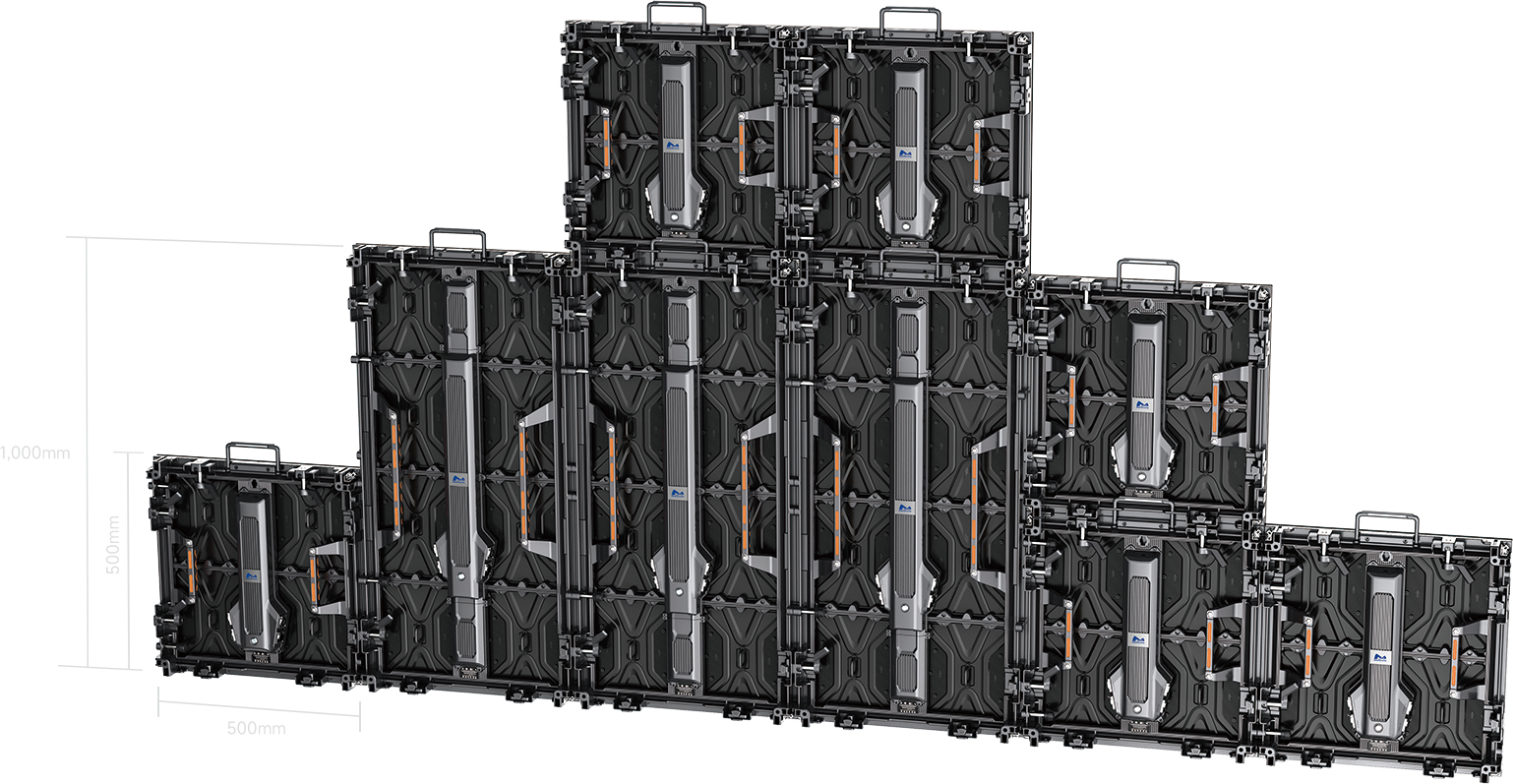

Modular Design

Featuring a 250×250mm module size with cabinet options of 500×500mm and 500×1,000mm, the FR Series is built for stability and durability, ensuring reliable performance at every event.

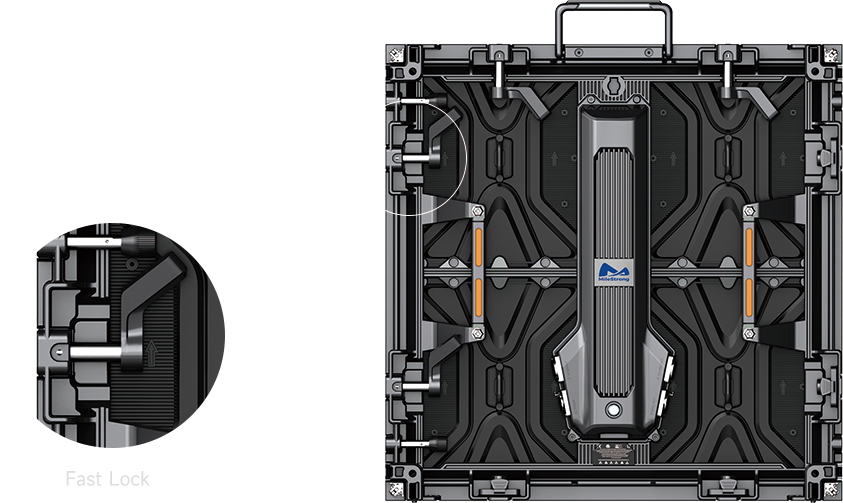

Quick Installation

Equipped with a fast lock system, the FR Series allows for effortless setup and dismantling, saving valuable time during rental operations.

Curved Flexibility

Supports curvature from -7.5° to +10° with 2.5° increments per unit, enabling creative curved screen configurations to suit different stage designs.

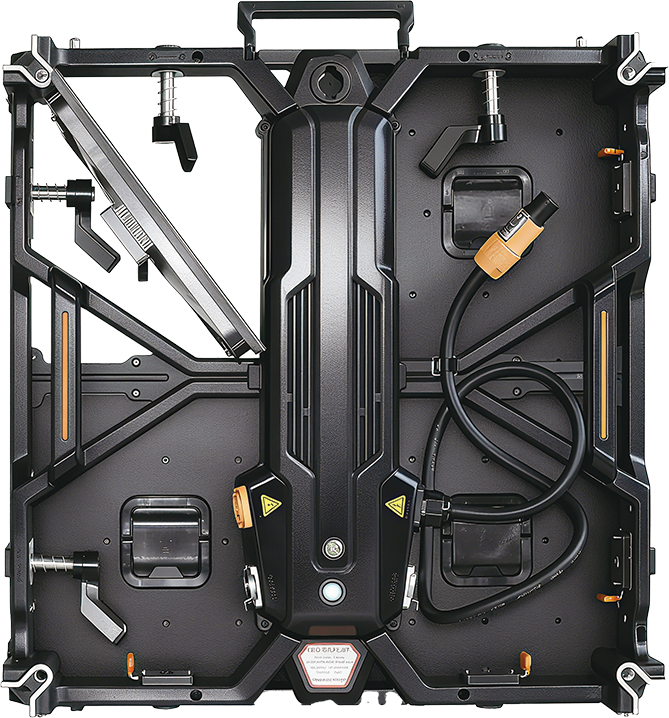

Easy Maintenance

Designed with convenient access for both front and rear maintenance, ensuring efficient service and minimal downtime.

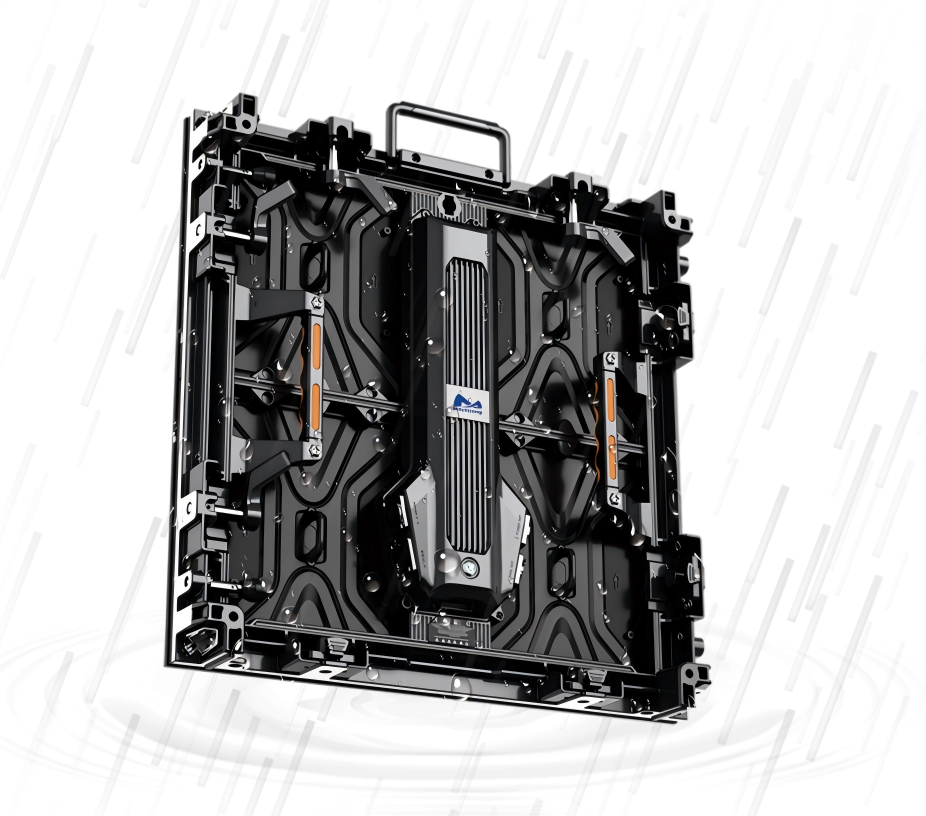

Weatherproof Performance

With an IP65 rating for outdoor models, the FR Series guarantees consistent display performance in all weather conditions.

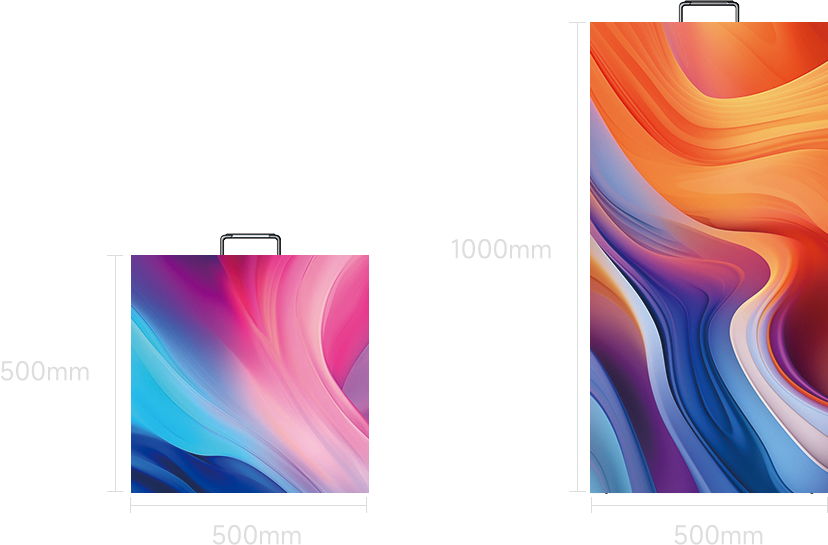

Seamless Compatibility

500×500mm and 500×1,000mm cabinets can be seamlessly combined, offering maximum flexibility for various installation requirements.

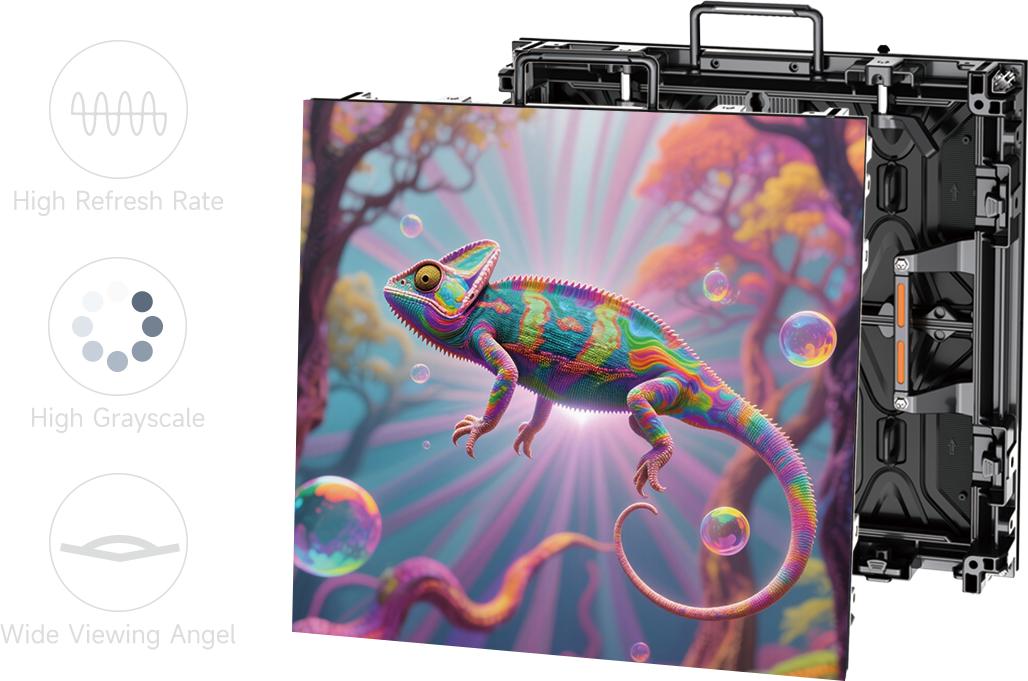

Vivid Display Quality

Delivers high refresh rate, high grayscale levels, and a wide viewing angle, presenting vibrant, clear visuals from every direction.

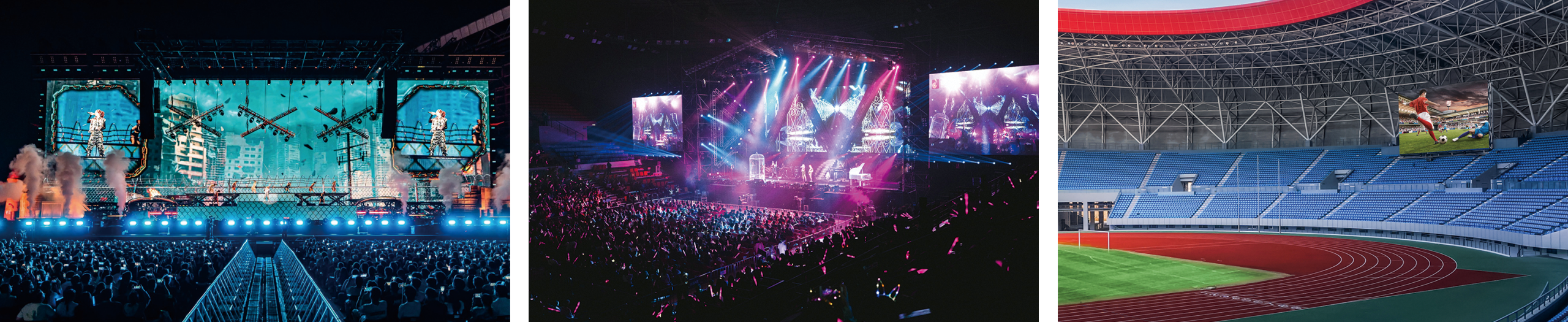

Application Scenarios

Ideal for concerts, exhibitions, award ceremonies, opening events, sports venues, and other rental staging applications where stunning visuals are essential.

Parameters

Items	FR15	FR19	FR26	FR29	FR39
Pixel Pitch (mm)	1.56	1.9	2.6	2.9	3.9
LED Type	SMD1212	SMD1515	Indoor: SMD1515 Outdoor: SMD1415	Indoor: SMD2020 Outdoor: SMD1415	Indoor: SMD2020 Outdoor: SMD1921
Pixel Density (pixels/m²)	409,600	262,144	147,456	112,896	65,536
Module Resolution (W×H)	160×160	128×128	96×96	84×84	64×64
Module Size (W×H)	250×250
Cabinet Size (mm)	500×500 / 500×1,000
Module Arrangement (W×H)	2×2 / 2×4
Cabinet Resolution (W×H)	320×320 / 320×640	256×256 / 256×512	192×192 / 192×384	168×168 / 168×336	128×128 / 128×256
Maintenance	Indoor: Rear ; Outdoor: Front & Rear
Cabinet Material	Die-cast aluminum
Brightness (nits)	Indoor: ≥600 ; Outdoor: ≥4,000
Color Temperature (K)	6,500–8,500
Viewing Angle (H/V)	≤140°/140°
Contrast Ratio	Indoor: ≥5,000:1 ; Outdoor: ≥4,000:1
Frame Rate (Hz)	60
Scan Mode	1/40	1/32	1/32	1/28	1/16
Grayscale (bit)	Indoor: ≥13 ; Outdoor: ≥12
Refresh Rate (Hz)	≥3,840Hz
Peak Power Consumption (W/m²)	≤600
Average Power Consumption (W/m²)	240-360
Protection Level	Indoor: IP30 ; Outdoor: Front IP65 & Rear IP63
Input Voltage	AC110V–AC230V
