STX Series

Pixel Pitch (mm) : 3.75 / 5 / 6 / 8 / 10 / 15 / 20 / 30
Module Size (mm): 540×240 / 720×240 / 960×240 / 1000×240

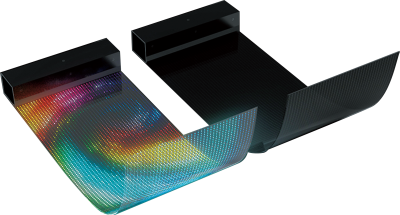

STX

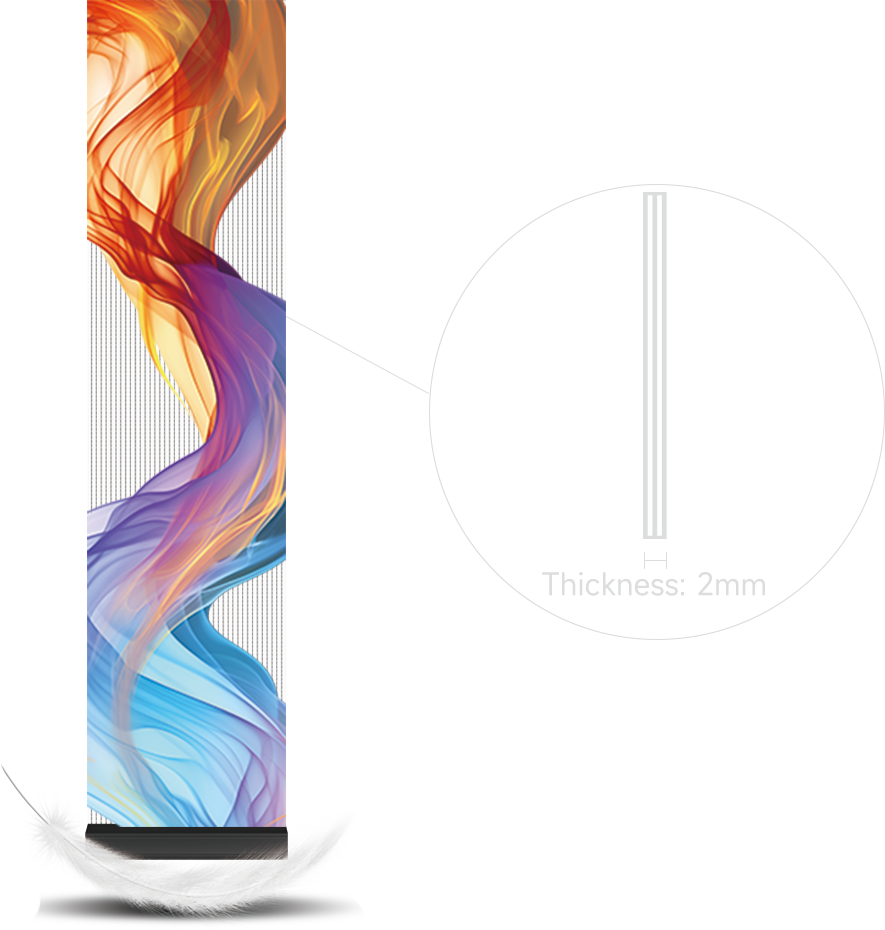

Ultra-Slim & Lightweight

With an ultra-slim profile of just 2mm, the STX Series sets a new standard for lightweight LED displays.
Available in pixel pitches of 3.75, 5, 6, 8, 10, 15, 20, 30 mm, and module sizes of 540×240, 720×240, 960×240, and 1000×240 mm,
it delivers high performance while maintaining an elegant, minimalist look.

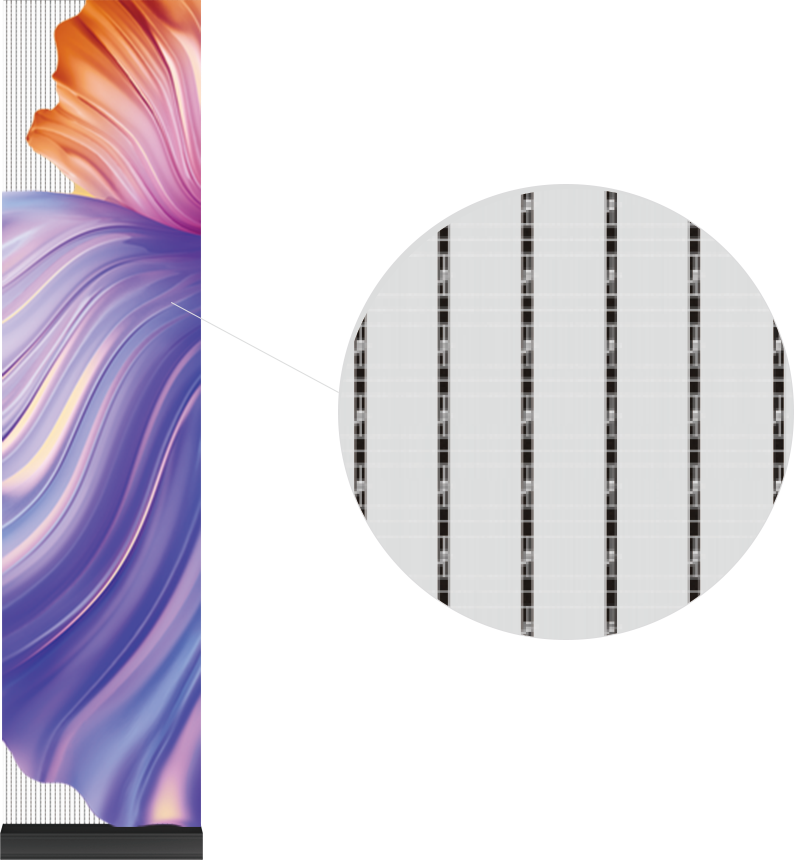

Revolutionary LED Naked Crystal Chip Technology

The STX Series adopts advanced LED Naked Crystal Chip implantation technology.
Using a transparent crystal film etched with a mesh circuit, components are mounted on a high-transparency flexible substrate.
A vacuum sealing process integrates the components into an optical lens-like panel, achieving exceptional clarity, brightness, and transparency with a sleek, modern design.

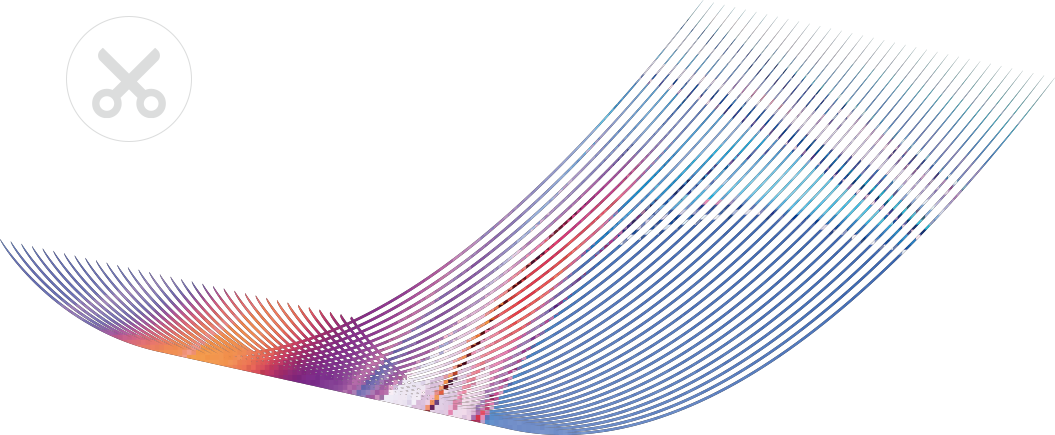

Flexible & Customizable

Unlike traditional LED displays, the STX Series features a soft, bendable structure that adapts seamlessly to complex surfaces such as curves and arcs.
It can also be cut to size, allowing for limitless creative possibilities in installation.

High Transparency with Vivid Performance

With a transparency rate of 75%–93%, the STX Series delivers crystal-clear visuals without obstructing the view behind.
Its 3840Hz refresh rate, 16-bit grayscale, and 4000:1 contrast ratio ensure vibrant, smooth, and detailed image presentation.

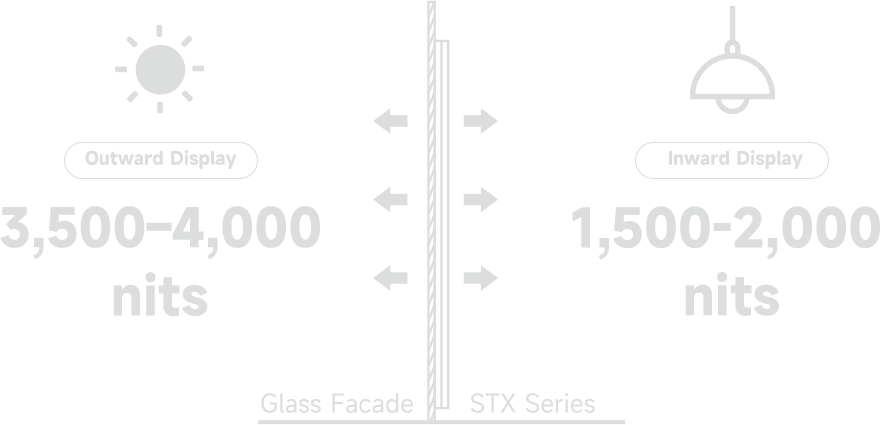

Brilliant Indoor Brightness

Standard brightness ranges from 1500 to 2000 nits, while custom configurations can achieve up to 3500–4000 nits,
ensuring brilliant performance even in well-lit indoor environments.

Cool Operation & Energy Efficiency

Thanks to flip-chip COB technology, the STX Series achieves efficient heat dissipation, stable light output, and extended service life.
With average power consumption controlled at just 50–80W/m², it reduces energy usage by up to 70%, maintaining both performance and sustainability.

Seamless Module Splicing

The unique module splicing method supports vertical stacking and unlimited horizontal extension,
enabling flexible screen configurations from small-scale displays to expansive video walls.

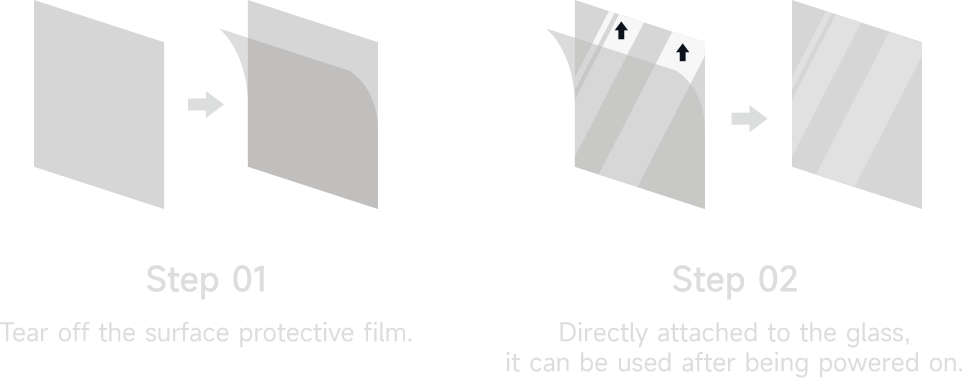

Easy Glass-Mount Installation

Installation is quick and effortless — simply peel off the protective film and attach the module directly to a glass surface.
Power it on, and it’s ready to display, eliminating the need for complex steel frameworks.

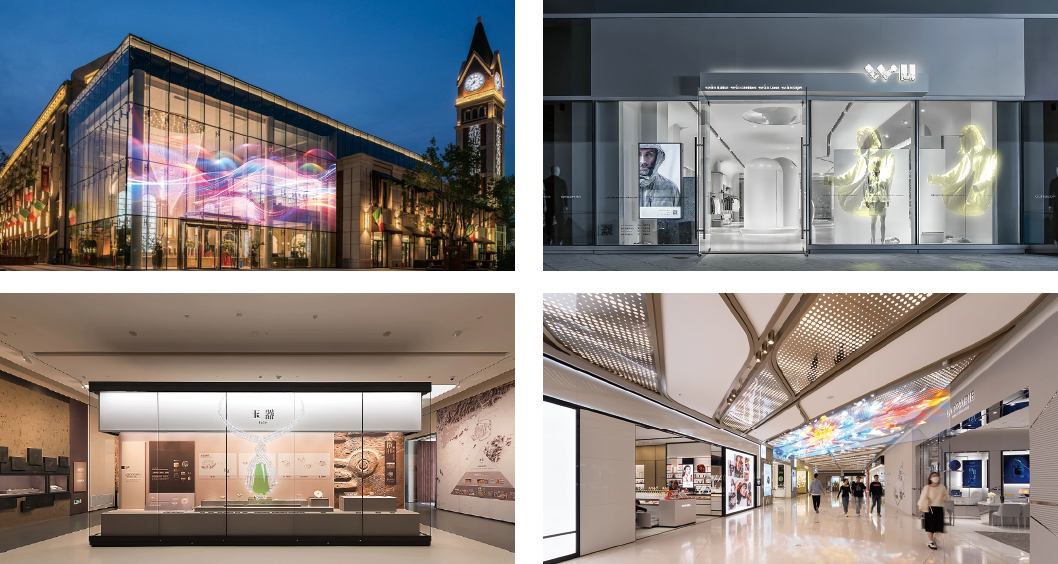

Applicaiton Scenarios

Ideal for retail windows, commercial facades, exhibition halls, creative installations, cultural and tourism venues, and shopping centers,
the STX Series offers limitless potential for captivating visual experiences.

Parameters

Download
Items STX375 STX5 STX6 STX8 STX10 STX15 STX20 STX30
Pixel Pitch (mm) 3.75 5 6 8 10 15 20 30
Module Resolution (W×H) 144×64 144×48 160×40 123×30 100×24 64×16 50×12 32×8
Module Size (mm) 540×240×2 720×240×2 1,000×240×2 1,000×240×2 1,000×240×2 960×240×2 1,000×240×2 960×240×2
Module Weight (kg) 0.18 0.2 0.3 0.3 0.3 0.3 0.3 0.3
Pixel Density (pixels/m²) 71,111 40,000 26,560 15,375 10,000 4,444 2,500 1,111
Brightness (cd/m²) 1,500–2,000 / 3,500–4,000
Viewing Angle (H/V) 140°/140°
Flatness ≥98%
Contrast Ratio 4,000:1
Protection Level IP43
Grayscale (bit) 16bit
Refresh Rate (Hz) 3,840
Frame Rate (Hz) 60 fps (120 fps with High Refresh for 3D)
Color Temperature (K) 2,000–9,500
Software Interface Windows
Input Voltage AC110V–AC240V, 50–60Hz
Peak Power Consumption (W/m²) 160 190 180 180 160 160 160 160
Average Power Consumption (W/m²) 50–60 50–70 50–60 50–60 40–50 40–50 40–50 40–50
Installation Method Direct Glass Mount / Clamped Inside Tempered Glass / Inner Arc Installation
Working Time 24/7 operation; lifespan ≥100,000 hours
Screen Temperature Rise (in Use) ≤3°C
Operating Environment -10 ℃ ~ 60 ℃, 10% ~ 90% RH
