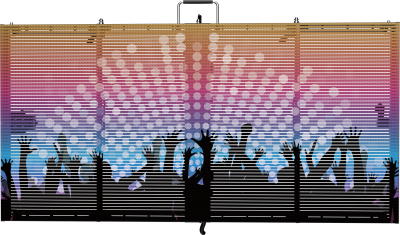

STR Series

Pixel Pitch (mm) : 3.9-7.8 / 5.2-10.4 / 10.4-10.4 / 15.6-15.6

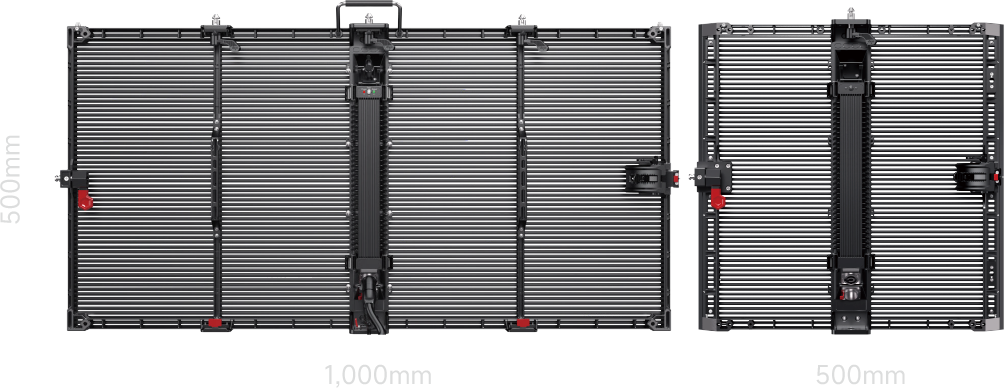

Cabinet Size (mm): 500×500 / 1000×500

STR

Versatile Pixel Pitch & Sizes

Choose from pixel pitches of 3.9-7.8mm, 5.2-10.4mm, 10.4-10.4mm, or 15.6-15.6mm.
The modules measure 500×250mm, and cabinets come in 1000×500mm or 1000×1000mm sizes — perfectly adaptable for any rental setup or event.

Lightweight Die-Casting Aluminum Cabinet

The 500×500mm cabinet weighs just 6kg, and the 1000×500mm cabinet is only 8.5kg.
Crafted from die-cast aluminum, it offers feather-light weight without sacrificing strength.

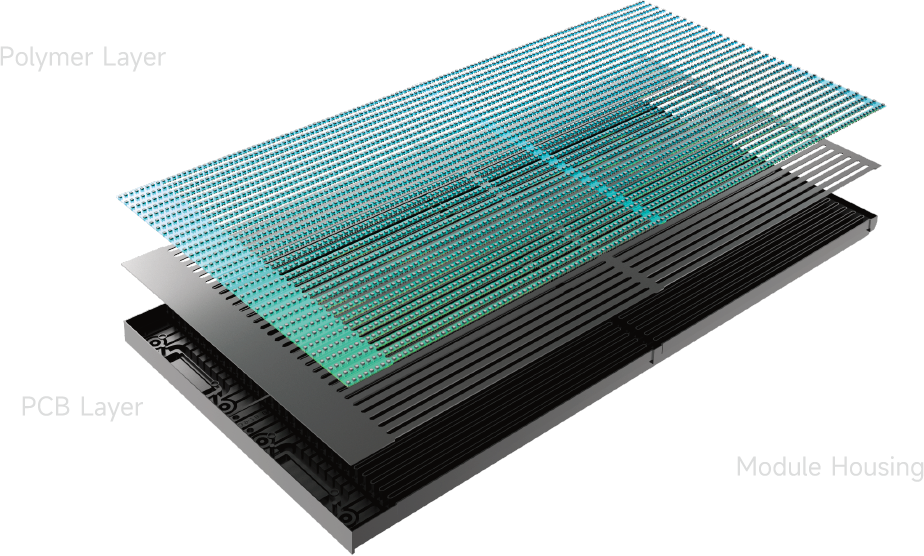

Modular Design

Featuring a modular structure, the cabinet ensures ergonomic efficiency and industrial durability—making installation and transport smooth and reliable.

High Performance Display

Transparency rates range from 55% to 75%, with a high brightness of 4500 nits and a 6000:1 contrast ratio.
It supports a 3840Hz refresh rate and 14-bit grayscale for superior visual quality.

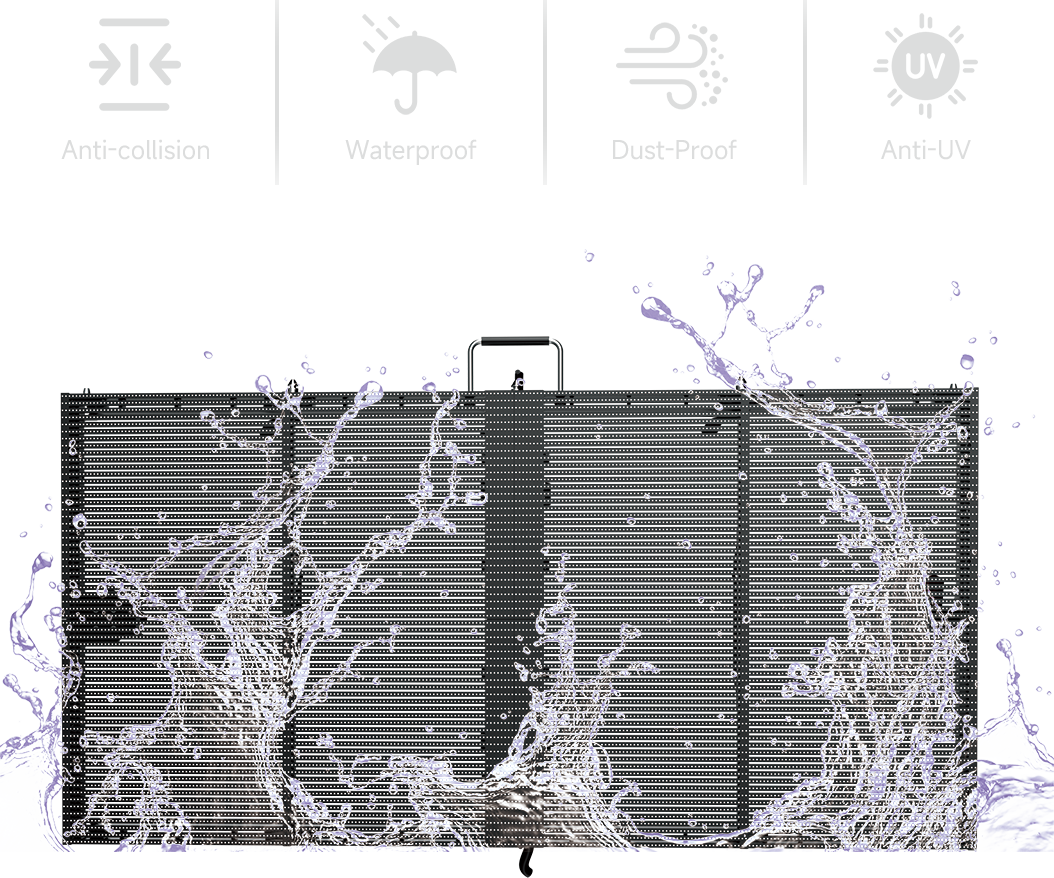

IP65 Waterproof

With IP65 protection, the screen handles rain, dust, and bumps effortlessly.
Edge guards prevent LED damage, ensuring reliable performance indoors and outdoors.

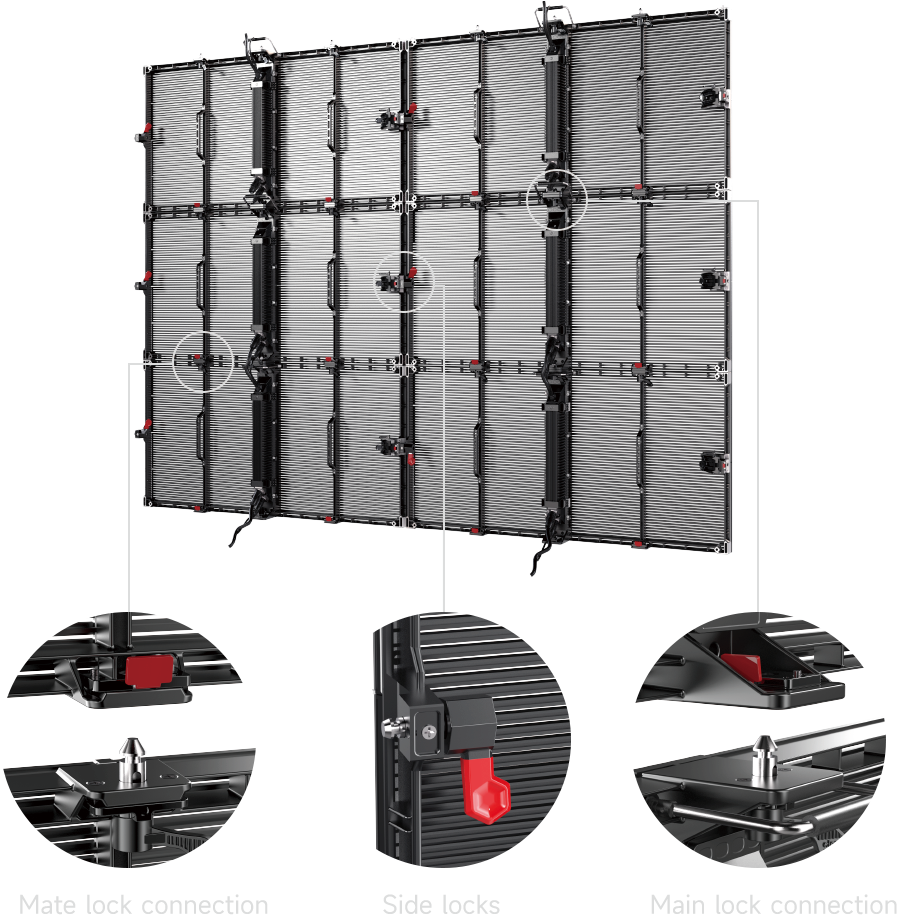

Easy Assembly & Disassembly

All fastening locks use a quick-release structure combining durability with operational efficiency,
making installation, removal, and onsite maintenance fast and easy for rental events.

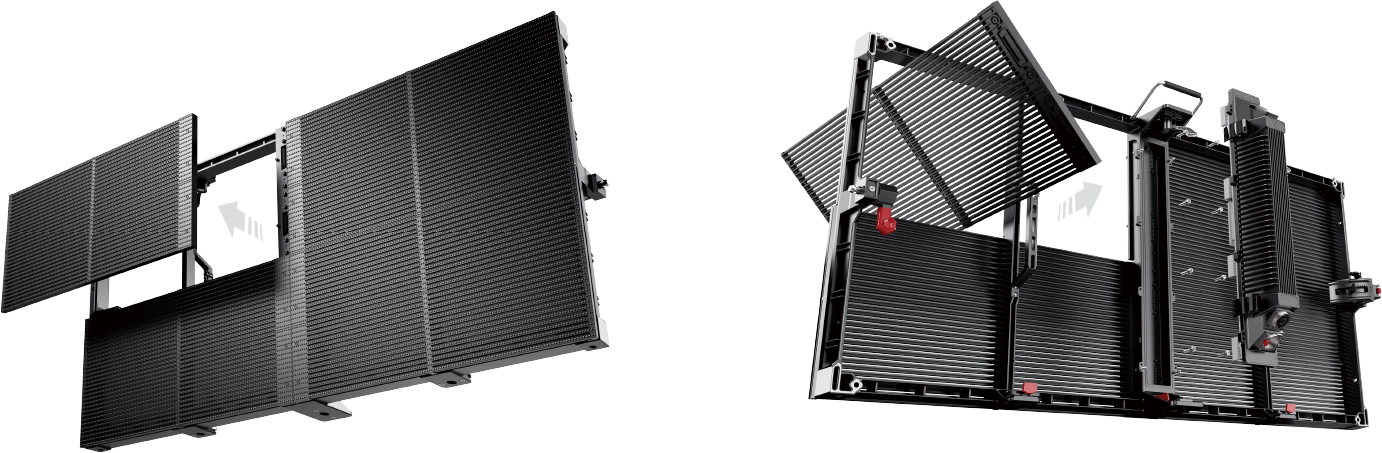

Front and Rear Access Maintenance

Modular power supplies and cabinets support both front and rear access for maintenance, keeping display areas clean and unobstructed during events.

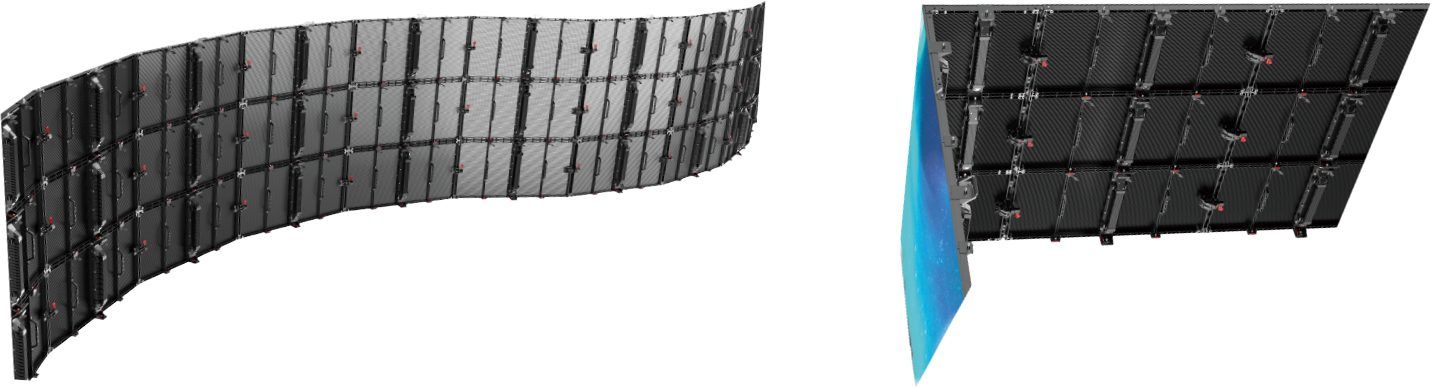

Flexible Curved & Right-Angle Options

Enhance your display with an optional curved lock for ±15° bending in 2.5° increments, and a right-angle configuration using 500×500mm cabinets that
integrate with 1000×500mm units — ideal for creating hybrid curved and angular displays for indoor or outdoor events.

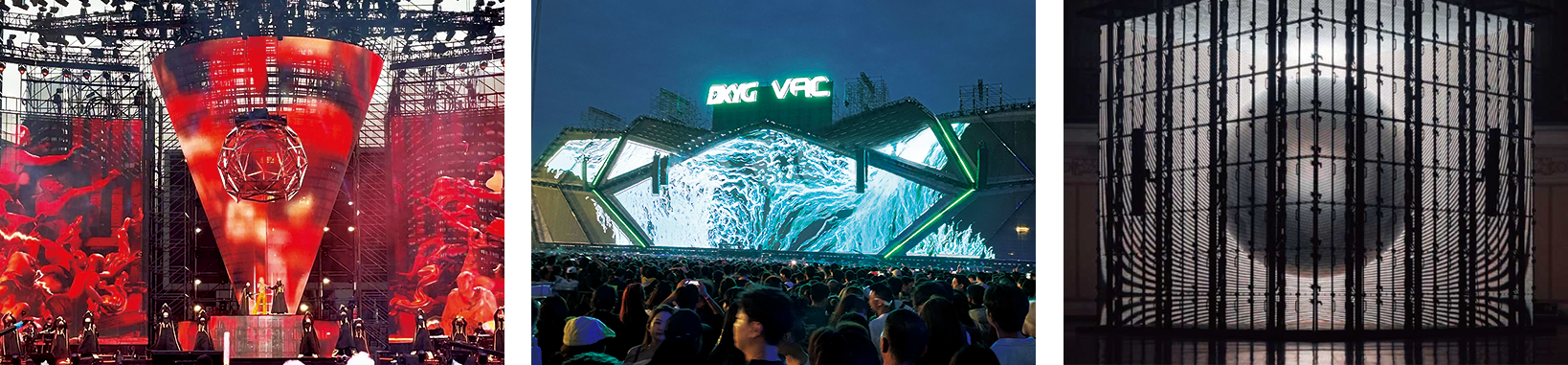

Application Scenarios

Perfect for concerts, exhibitions, award ceremonies, opening ceremonies, stadium screens, and other rental events requiring high transparency and visual impact.

Parameters

Download
Items STR3.9-7.8 STR5.2-10.4 STR10.4-10.4 STR15.6-15.6
Pixel Pitch   3.9-7.8mm 5.2-10.4mm 10.4-10.4mm 15.6-15.6mm
LED Lamp Bead Model SMD1921 SMD1921 SMD2727 SMD2727
Pixel Composition 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Module Size (W×H) 500×250mm 500×250mm 500×250mm 500×250mm
Module Resolution (W×H) 129×32 96×24 48×24 32×16
Pixel Density (pixels/m²) 32,768  18,432  9,216  4,096
Brightness (cd/m²) 4,500  4,500  4,500  4,500
Scan Mode 1/8 1/4 1/2 Static
Cabinet Size (W×H) 1,000×500mm / 500×500mm
Cabinet Weight (kg/m²) 15
Cabinet Material Aluminum die-casting
Refresh Rate 3,840Hz
Viewing Angle (H/V) 140°/140°
Grayscale 14 bit
Contrast Ratio 6,000:1
Transparency rate 55% 58% 60% 75%
Maintenance Front & Rear
IP Grade IP65
Signal Input HDMI, DVI
Input Voltage AC100V–AC240V @ 50Hz/60Hz
Maximum Power (W/m²) 800  800  800  800
Average Power (W/m²) 240  240  240  240
Operating Environment -20 ℃ ~ 50 ℃, 10% ~ 90% RH
Working Time 24/7 operation; lifespan ≥100,000 hours
