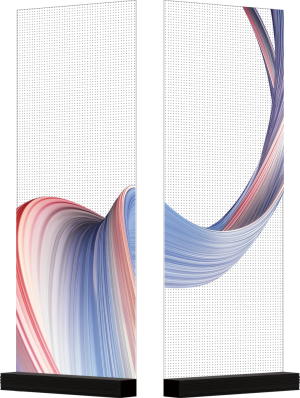

STJ Series

Pixel Pitch (mm) : 4 / 5 / 6.25 / 8 / 10 / 15 / 20
Module Size (mm): 440×1,000 / 320×1,000 / 400×1,000 / 390×990 / 1,000×400

STJ

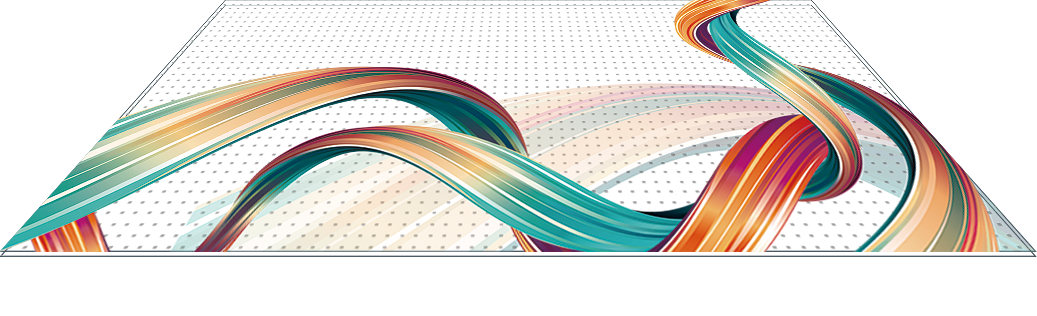

Lightweight & Ultra-Thin

The P4 module weighs only 1kg, while P5, P6.25, P8, P10, P15, and P20 modules all weigh just 1.3kg.
With a super-thin profile of only 2mm, the STJ Series ensures minimal impact on glass structures and allows for elegant, nearly invisible installation.

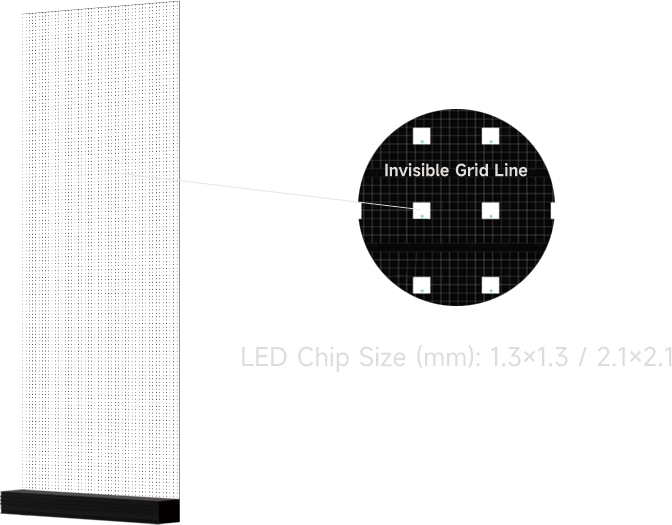

High Transparency

Featuring invisible grid circuits and over 90% transmittance, the STJ Series preserves natural daylight while maintaining the aesthetic appeal and openness of your space.

Flexible & Customizable

With excellent scalability and flexibility, modules can be cut and seamlessly stitched, enabling customized screen sizes and unique shapes to fit a wide variety of installation requirements.

Wide Viewing & High Performance

A 160° viewing angle, 16-bit color depth, and 3840Hz refresh rate guarantee smooth, vivid visuals from almost any viewing position, ensuring an exceptional display experience.

High-Brightness Indoor Display

Capable of reaching up to 4000 nits, the STJ Series delivers bright and clear content even on indoor glass facades for outward display, ensuring visibility in high-light environments.

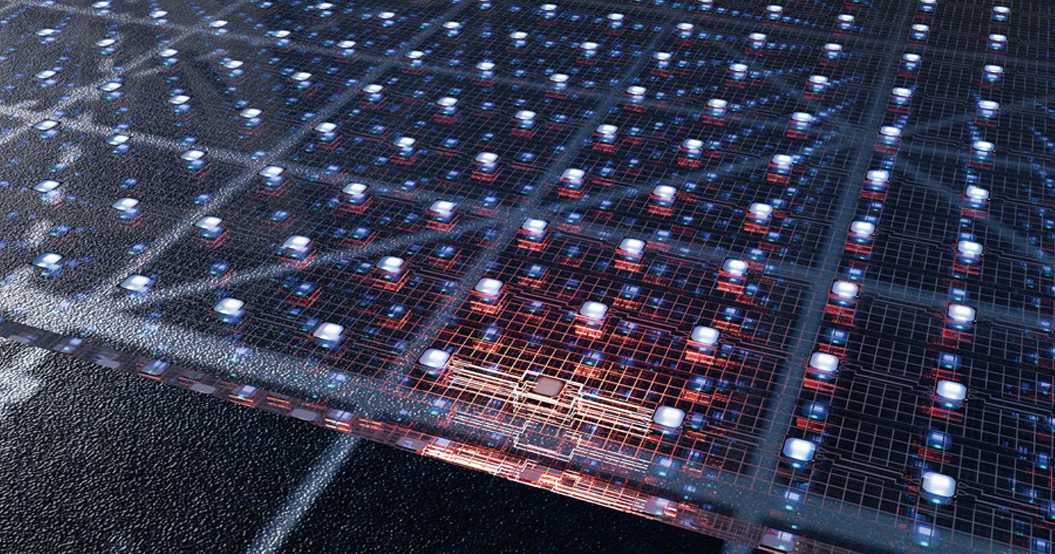

Reliable Playback

Equipped with break-point resume functionality and independently developed light and drive systems,
the display ensures stable, high-reliability performance for uninterrupted operation.

Hard Connection

Designed for secure and stable connections, the modules maintain consistent performance over long-term installations.

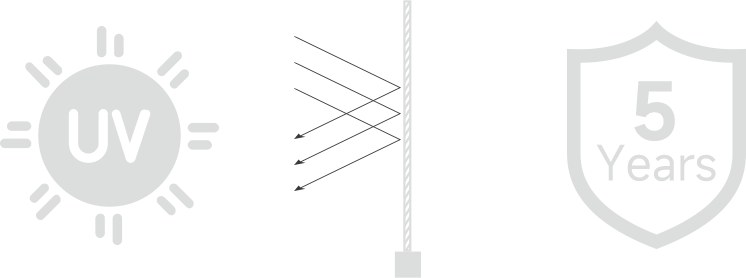

UV Resistant & Non-Yellowing

The materials resist UV damage and maintain clarity for at least 5 years, preventing yellowing and ensuring long-lasting aesthetic quality.

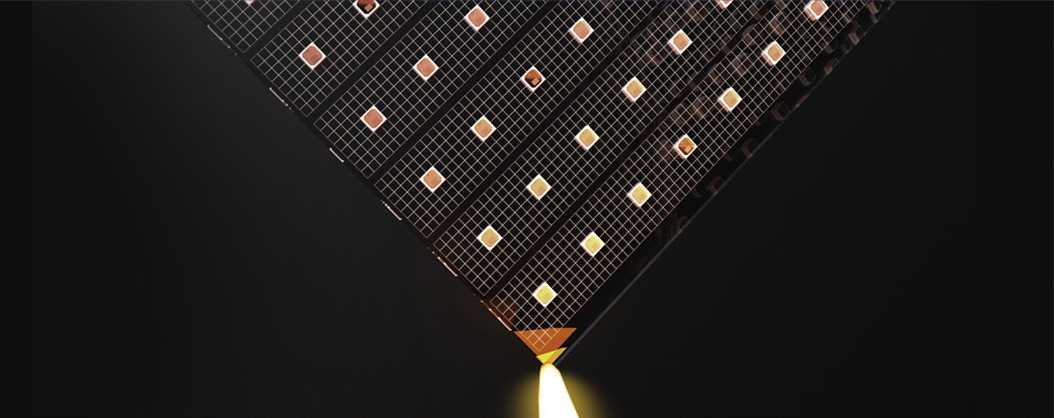

V1 Fire Rating

Complies with V1 flame-retardant standards, providing enhanced safety for indoor applications.

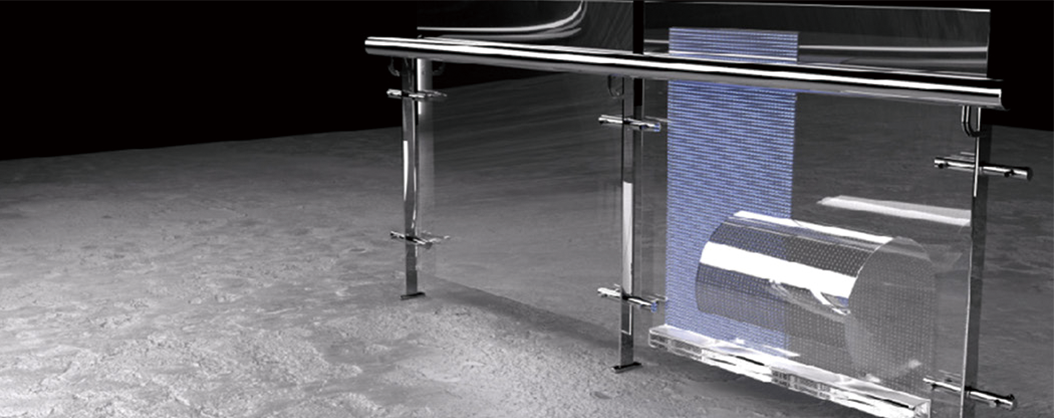

Easy Installation

No steel structure is required. Simply stick the ultra-thin screen onto the glass and connect the power and signal.
The glue-filling process ensures strong adhesion that strengthens over time, making installation simple and secure.

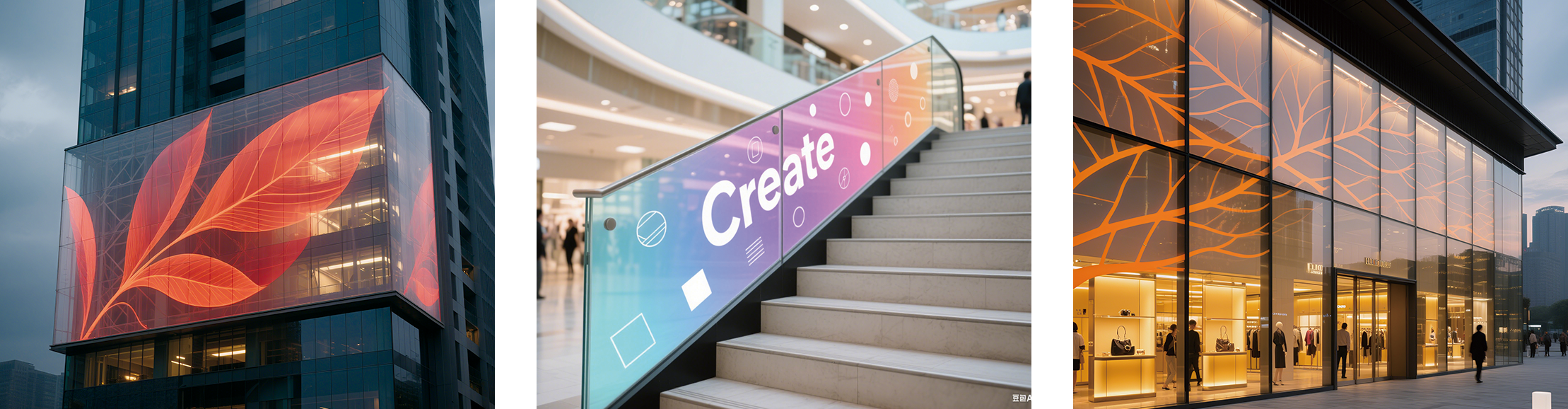

Application Scenarios

Ideal for retail storefronts, corporate offices, exhibition centers, and other high-visibility glass surfaces, bringing dynamic, eye-catching visuals to indoor spaces.

Parameters

Download
Items STJ4 STJ5 STJ625 STJ8 STJ10 STJ15 STJ20
Pixel Pitch (mm) 4 5 6.25 8 10 15 20
Module Size (W×H) 240×1,000×2 320×1,000×2 400×1,000×2 400×1,000×2 400×1,000×2 390×990×2 1,000×400×2
LED Type 1313 1313 1313 / 2121 1313 / 2121 1313 / 2121 2121 2121
Brightness (cd/m²) 2,000 2,500 2,000 / 4,000 2,000 / 4,000 2,000 / 4,000 3,000 3,000
Pixel Composition 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Module Resolution (W×H) 250×60 200×64 160×64 125×50 100×40 66×26 50×20
Pixel Density (pixels/m²) 62,500 40,000 25,600 15,625 10,000 4,356 2,500
Transparency Rate 90% 91% 92% 92% 94% 94% 95%
Module Weight (kg) 1 1.3 1.3 1.3 1.3 1.3 1.3
Viewing Angle (H/V) 160°/160°
Grayscale (bit) 16
Refresh Rate (Hz) 3840
Input Voltage AC100V–AC240V, 50–60Hz
Peak Power Consumption (W/m²) 600
Average Power Consumption (W/m²) 200
Operating Environment -10 ℃ ~ 60 ℃, 10% ~ 90% RH
Drive Mode Static
Control System Nova / Colorlight
Working Time 24/7 operation; lifespan ≥100,000 hours
