SL Series

Cabinet Size (mm): 1,000×1,000×83
Pixel Pitch (mm): 2.976 / 3.91 / 4.81 / 6.25 / 7.81 / 10.42
Cabinet Size (mm): 960×960×88.5
Pixel Pitch (mm): 4 / 5 / 5.71 / 6.66 / 8 / 10

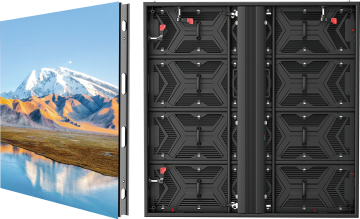

产品图

Lightweight & Modular Design

Featuring multiple pixel pitch options and a lightweight aluminum cabinet, this outdoor LED display combines durability with flexibility.
Its modular structure ensures convenient handling, quick installation, and efficient maintenance,
making it adaptable to a wide range of outdoor display applications.

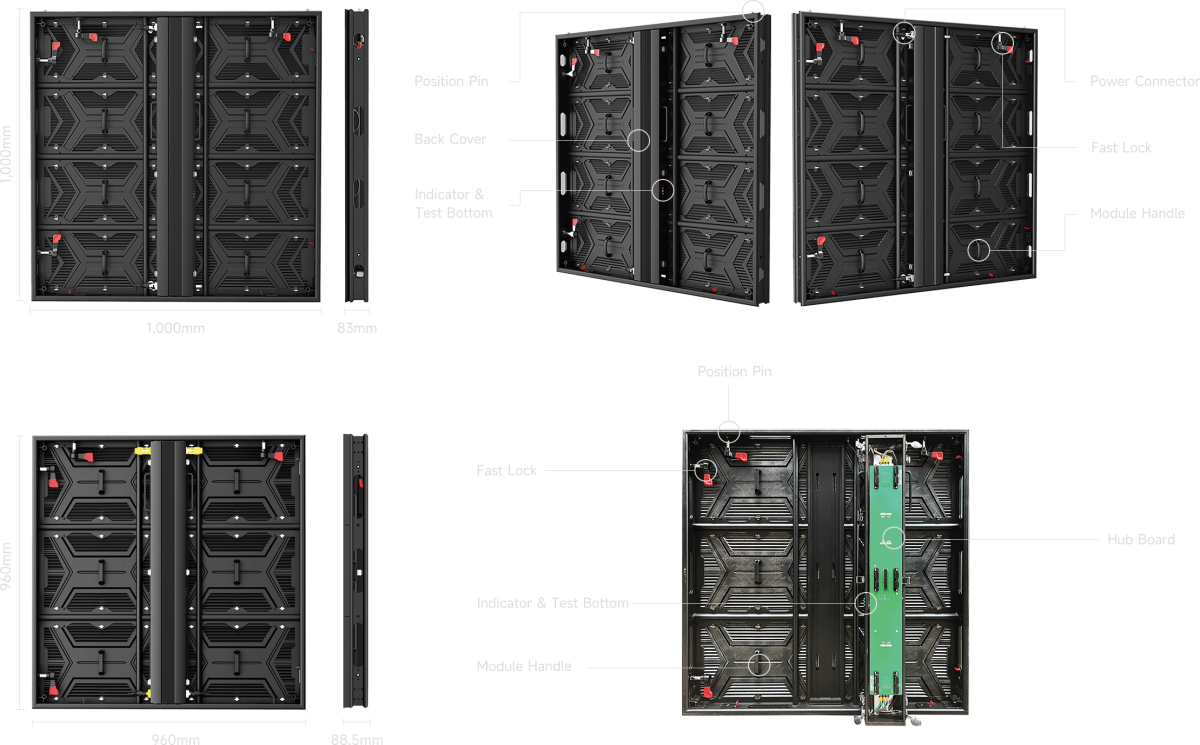

组 9

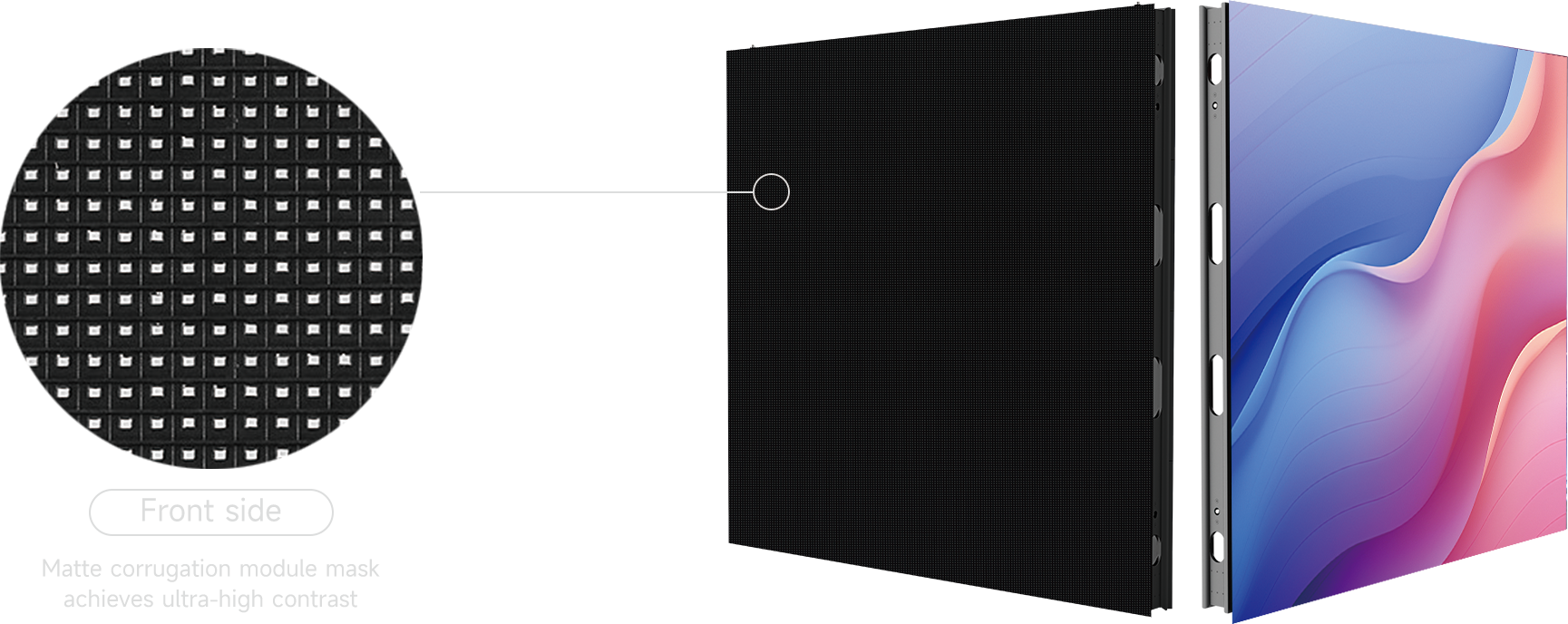

Matte Corrugation Module Mask

Equipped with a high-contrast ripple mask, the SL Series achieves ultra-high contrast, delivering sharp and vivid images even under direct sunlight.

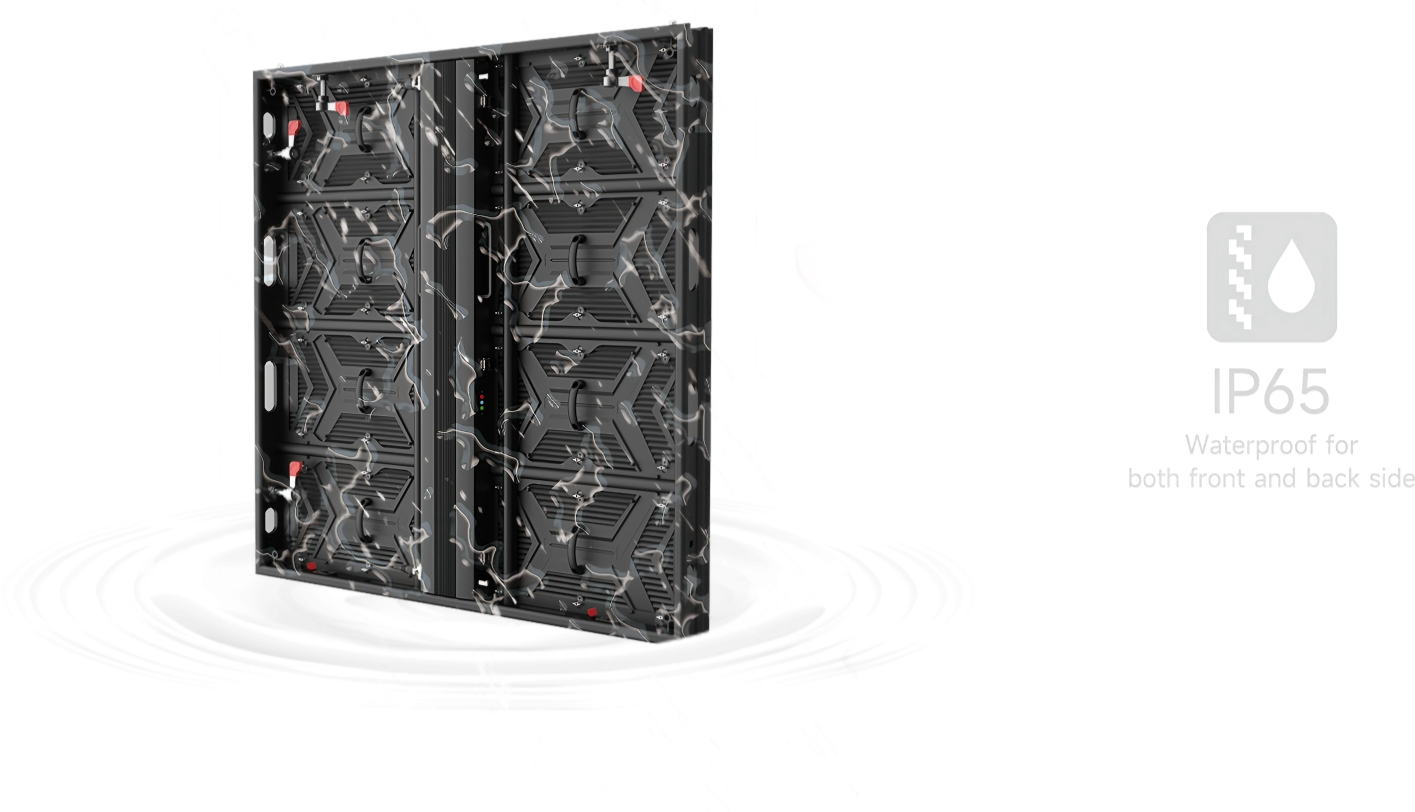

IP65 Protection

Fully dustproof and waterproof, the SL Series withstands harsh outdoor environments, ensuring reliable performance in any weather conditions.

High Brightness & Energy Efficient

Delivers bright, eye-catching visuals while maintaining energy efficiency, reducing operating costs without compromising display quality.

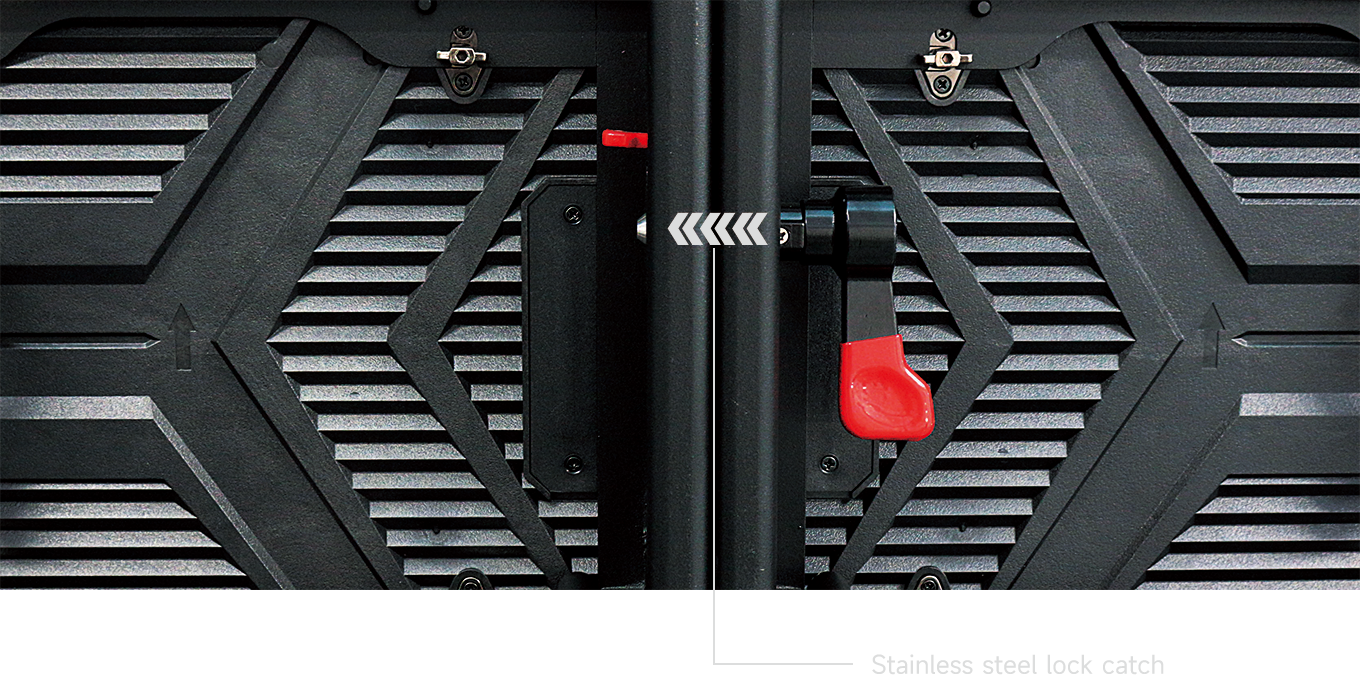

Fast Installation

Stainless fast locks and high-precision aluminum alloy panels allow quick assembly, excellent flatness, and efficient setup for large-scale installations.

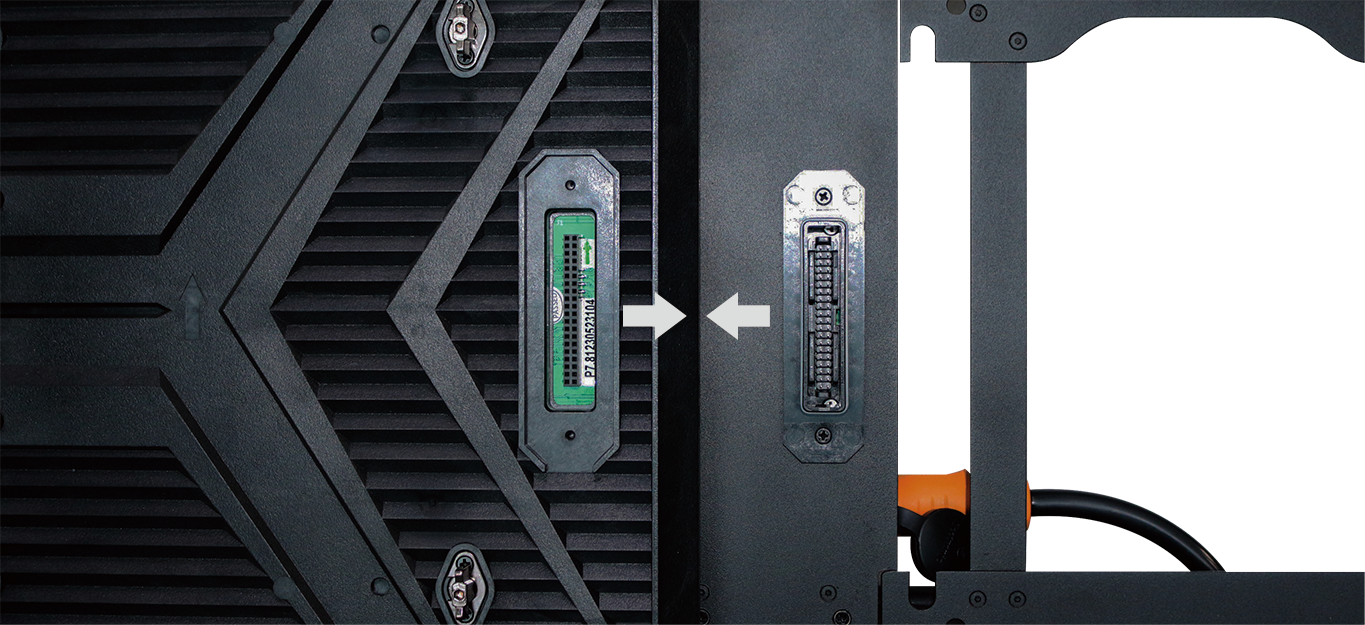

Hot-Swapping & Hard Connection

Hard connection design supports full front access and hot-swapping, enabling quick module replacement and maintenance without interrupting operation.

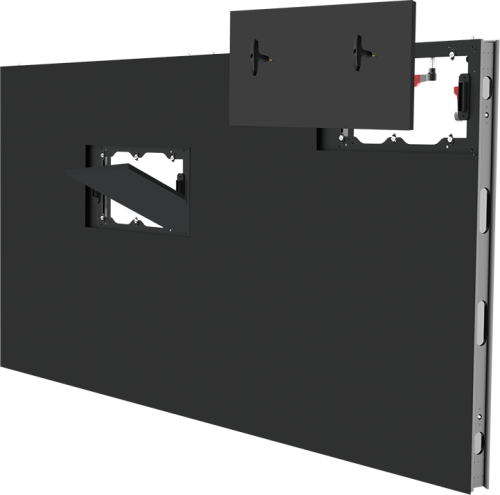

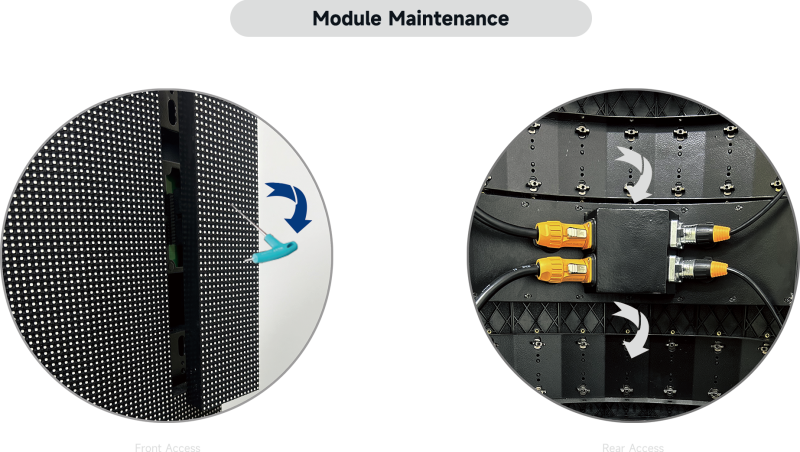

Front & Rear Maintenance

Supports both front and rear maintenance, simplifying servicing and minimizing downtime.

8

Seamless Splicing

High-precision cabinets ensure natural, smooth, and seamless splicing for large-format displays, maintaining uniform visual quality across the entire screen.

High Refresh Rate & Grayscale

High refresh rate and superior grayscale rendering provide smooth video playback and vibrant image reproduction for professional-grade content.

Wide Viewing Angle

160° wide viewing angle ensures consistent and clear images from multiple perspectives, enhancing audience engagement.

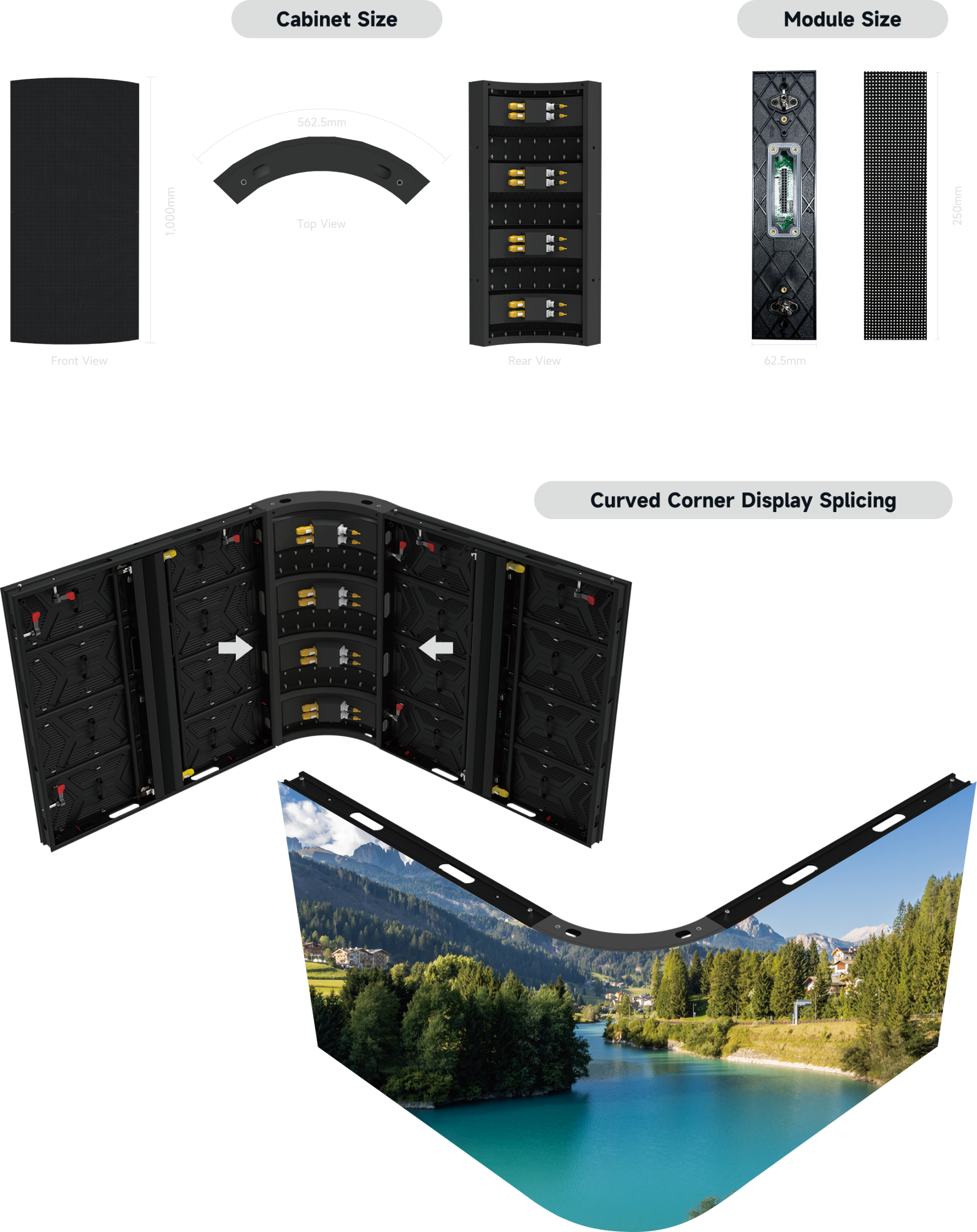

Curved & Corner Cabinets

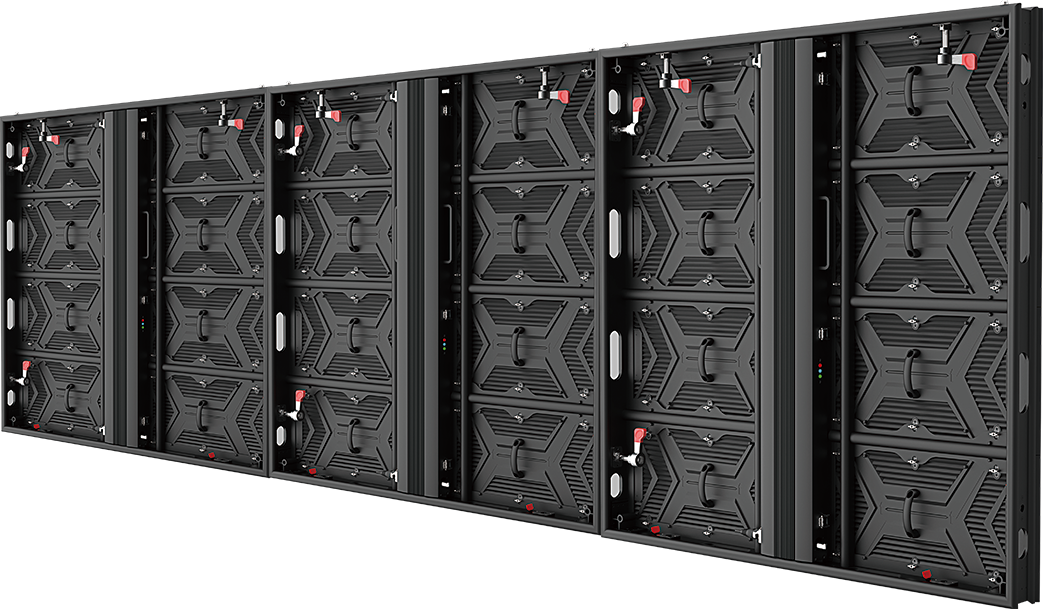

Curved and corner cabinets seamlessly integrate with standard cabinets, enabling creative curved screen layouts and dynamic installations.

11-2

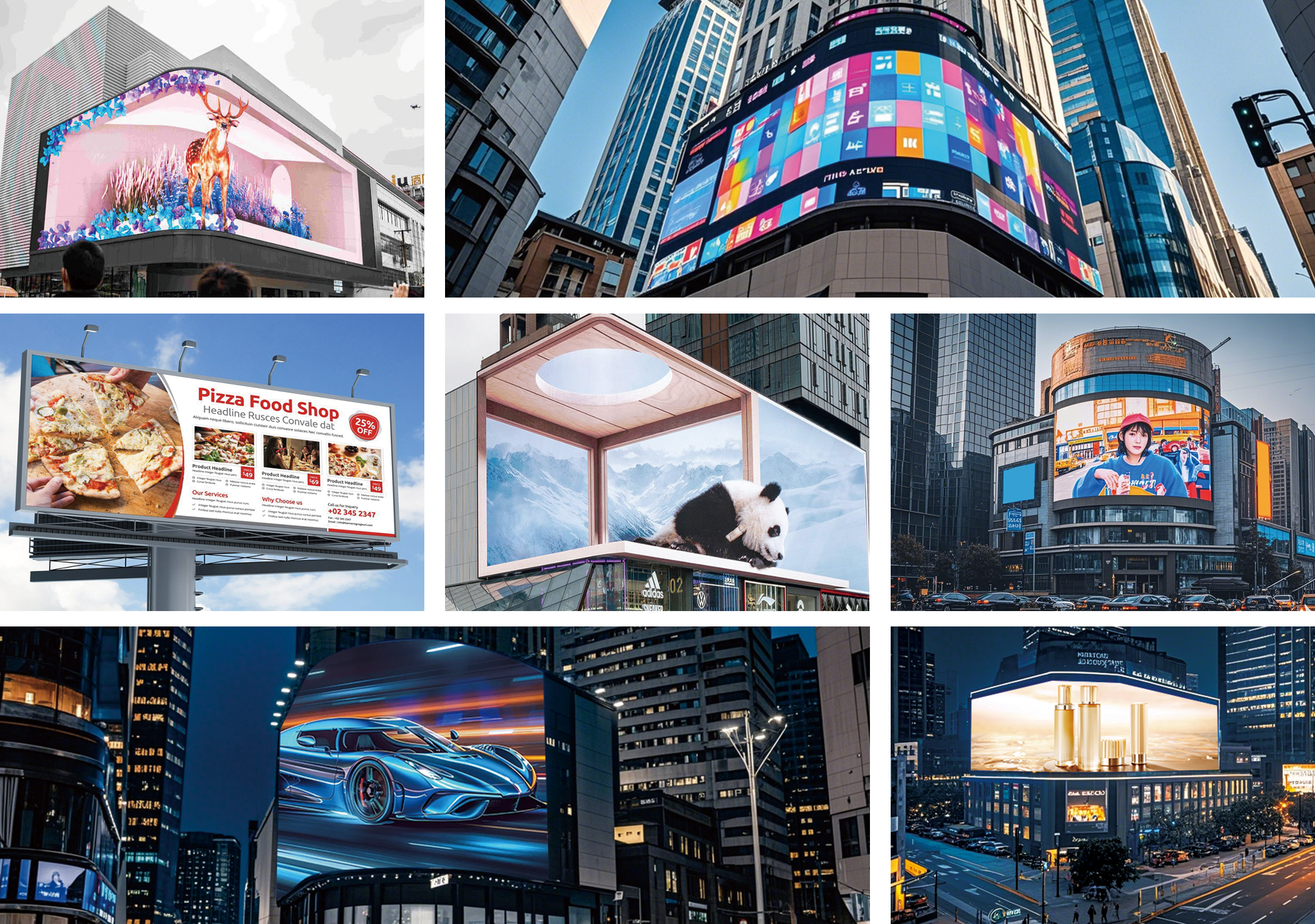

Application Scenarios

Ideal for outdoor advertising, sports venues, city landmarks, and large public events, delivering high-impact visuals in diverse environments.

Parameters

Download
Standard Cabinet (1,000×1,000mm)
Items SL297 SL391 SL481 SL625 SL781 SL104
Pixel Pitch (mm) 2.976 3.91 4.81 6.25 7.81 10.42
LED Type SMD1415 SMD1921 SMD1921 SMD2727 SMD2727 SMD2727
Pixel Density (pixels/m²) 112,896  65,536  43,264  25,600  16,384  9,216
Module Resolution (W×H) 168×84 128×64 104×52 80×40 64×32 48×24
Module Size (W×H) 500×250
Cabinet Size (mm) 1,000×1,000×83 (Customizable to 1,500mm width and 500mm or 750mm height)
Module Arrangement (W×H) 2×4
Cabinet Resolution (W×H) 336×336 256×256 208×208 160×160 128×128 96×96
Cabinet Weight (kg) 22.5
Maintenance Front & Rear
Cabinet Material Aluminum profile
Brightness (nits) 4,500 6,000 6,000 6,000 6,000 6,000
Color Temperature (K) 1,000–18,500 (adjustable)
Viewing Angle (H/V) 140°/160°
Contrast Ratio 5,000:1 10,000:1 10,000:1 10,000:1 10,000:1 10,000:1
Frame Rate (Hz) 50/60
Scan Mode 1/21 1/16 1/13 1/8 1/4 1/2
Grayscale (bit) 16
Refresh Rate (Hz) 3,840
Peak Power Consumption (W/m²) 800 650 650 650 650 650
Average Power Consumption (W/m²) 100–200
Protection Level IP65
Input Voltage AC90V–AC264V, 47–63Hz
Operating Environment -20 ℃ ~ 60 ℃, 10% ~ 85% RH
Certifications CCC, CE, RoHS, FCC, CB, TUV, IEC
Standard Cabinet (960×960mm)
Items SL4 SL5 SL571 SL6 SL8 SL10
Pixel Pitch (mm) 4 5 5.71 6.66 8 10
LED Type SMD1921 SMD1921 SMD2727 SMD2727 SMD2727 SMD2727
Pixel Density (pixels/m²) 62,500 40,000 30,625 22,500 15,625 10,000
Module Resolution (W×H) 120×80 96×64 84×56 72×48 60×40 48×32
Module Size (W×H) 480×320
Cabinet Size (mm) 960×960
Module Arrangement (W×H) 2×3
Cabinet Resolution (W×H) 240×240 192×192 168×168 144×144 120×120 96×96
Cabinet Weight (kg) 21
Maintenance Front & Rear
Cabinet Material Aluminum profile
Brightness (nits) 4,500–8,000 (optional) 5,000–10,000 (optional) 6,000–10,000 (optional)
Color Temperature (K) 5,000–12,000 (optional)
Viewing Angle (H/V) 140°/160°
Contrast Ratio 15,000:1
Frame Rate (Hz) 50/60
Scan Mode 1/8 1/8 1/7 1/6 1/4 1/2
Grayscale (bit) 16
Refresh Rate (Hz) 3,840–7,680
Peak Power Consumption (W/m²) 800
Average Power Consumption (W/m²) 200–300 100–200
Protection Level IP65
Input Voltage AC90V–AC264V, 47–63Hz
Operating Environment -20 ℃ ~ 60 ℃, 10% ~ 85% RH
Certifications CCC, CE, RoHS, FCC, CB, TUV, IEC
Curved Coner Cabinet
Items SLC391 SLC481 SLC625 SLC781 SLC104
Pixel Pitch (mm) 3.91 4.81 6.25 7.81 10.42
LED Type SMD1921 SMD1921 SMD2727 SMD2727 SMD2727
Pixel Density (pixels/m²) 65,535  43,264  25,600  16,384  9,216
Module Resolution (W×H) 16×64 104×52 80×40 8×32 6×24
Module Size (W×H) 62.5×250
Cabinet Size (mm) 562.5×1,000
Module Arrangement (W×H) 9×4
Cabinet Resolution (W×H) 144×256 208×208 160×160 72×128 54×96
Cabinet Weight (kg) 24.6
Maintenance Front & Rear
Cabinet Material Steel
Brightness (nits) 5,000 6,000 6,000 5,000 5,000
Color Temperature (K) 1,000–18,500 (adjustable)
Viewing Angle (H/V) 140°/160°
Cabinet Flatness (mm) ≤0.1
Contrast Ratio 10,000:1
Frame Rate (Hz) 50/60
Driving Method Constant current
Scan Mode 1/16 1/13 1/8 1/16 1/16
Grayscale (bit) 16
Refresh Rate (Hz) 3,840
Peak Power Consumption (W/m²) 650
Average Power Consumption (W/m²) 200–300 100–200 100–200 200–300 200–300
Protection Level IP65
Input Voltage AC90V–AC264V, 47–63Hz
Operating Environment -20 ℃ ~ 60 ℃, 10% ~ 85% RH
Certifications CCC, CE, RoHS, FCC, CB, TUV, IEC
