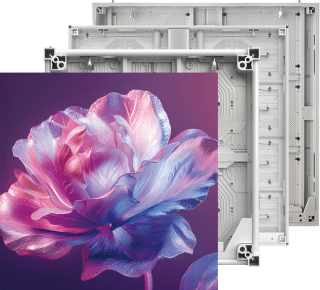

SFC Series

Cabinet Size (mm): 960×640 / 960×960 / 960×1,280 / 1,440×640 / 1,440×960 (P4.44/5.7/6.67/8/10)
Cabinet Size (mm): 500×500 / 500×750 / 500×1,000 / 1,000×500 / 1,000×1,000 (P2.97/3.91/4.81/6.25/7.81/10.42)
Cabinet Size (mm): 500×500 / 500×750 / 500×1,000 / 750×500 / 750×750 (P1.3/1.95/2.6/2.97/3.91/4.81)

1

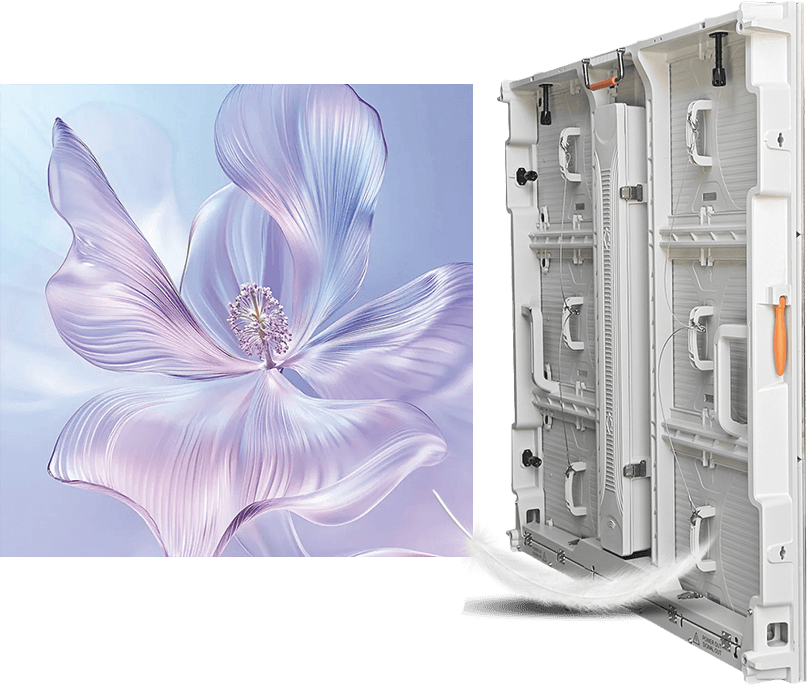

Slim and Lightweight

Designed with a streamlined cabinet structure, the SFC Series features a slim and lightweight profile. It reduces installation load and makes transportation, handling, and setup more efficient.

Ultra-High Brightness

With brightness reaching up to 10,000 nits, the display delivers clear and vibrant visuals even under direct sunlight. Content remains sharp and visible in any outdoor lighting condition.

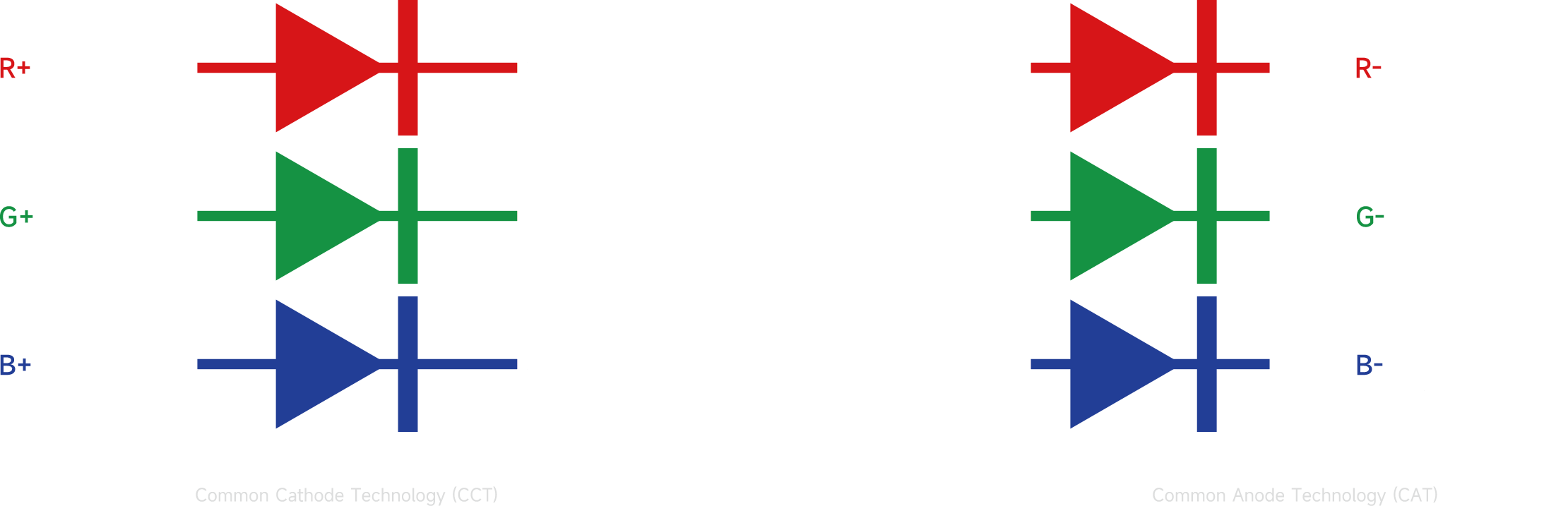

Common Cathode Energy Saving

Powered by common cathode technology, the SFC Series reduces energy consumption by up to 25% compared to traditional DIP products.
This results in lower operating costs and improved return on investment over time.

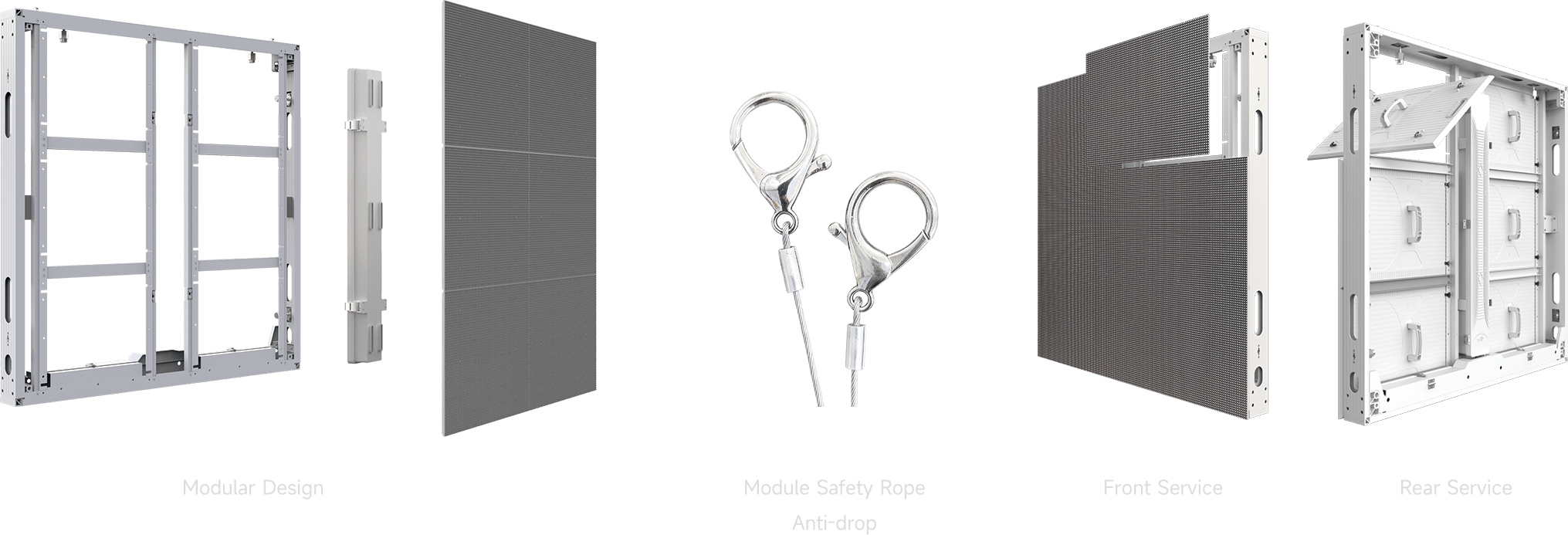

Front & Rear Maintenance

Supports both front and rear service for maximum flexibility. The modules are equipped with a fast-lock system, allowing quick installation and easy dismantling, saving time and labor.

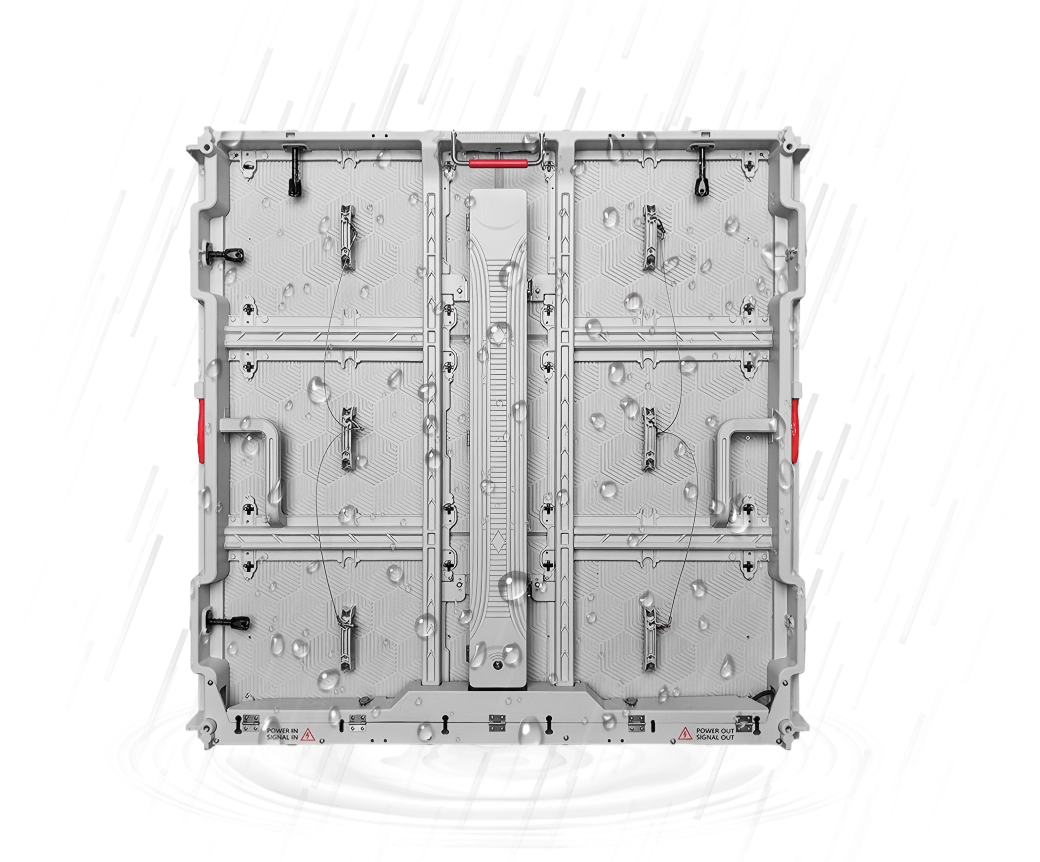

IP66 Protection

With IP66-rated protection on both front and rear sides, the cabinet is fully sealed against dust, rain, and snow.
It is built for direct outdoor exposure without additional enclosure, ensuring stable performance in harsh environments.

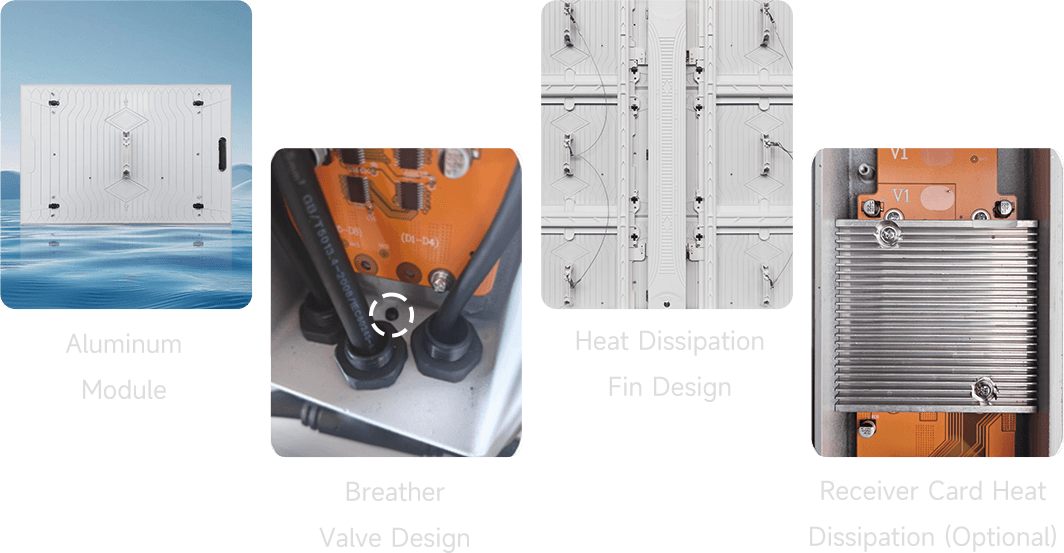

Efficient Heat Dissipation

Multiple heat dissipation designs enhance thermal performance. Contact-based thermal conduction accelerates heat transfer,
while the fin-shaped structure increases the surface area for more effective cooling.

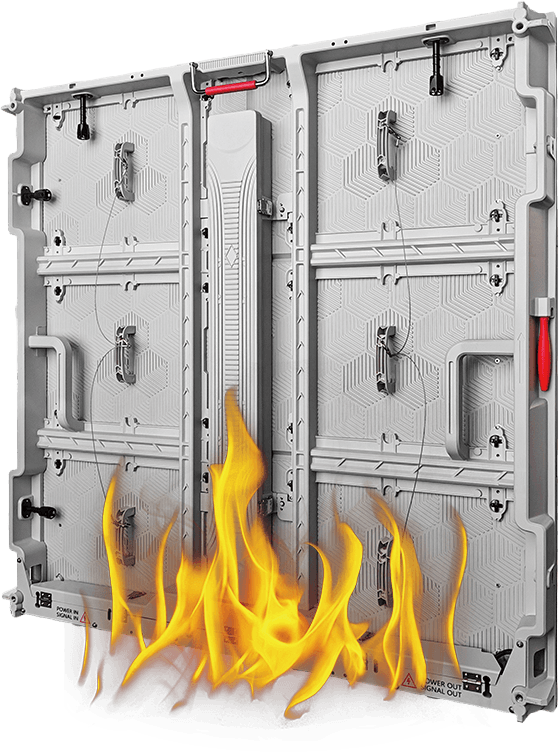

Fireproof & Flame-Retardant

The module adopts a full aluminum profile design, offering excellent fireproof and flame-retardant performance for enhanced safety and durability.

Vivid Display Performance

Enjoy shadow-free and flicker-free visuals with high grayscale and contrast ratio.
Combined with a wide viewing angle, the display delivers delicate image quality with vibrant and saturated colors.

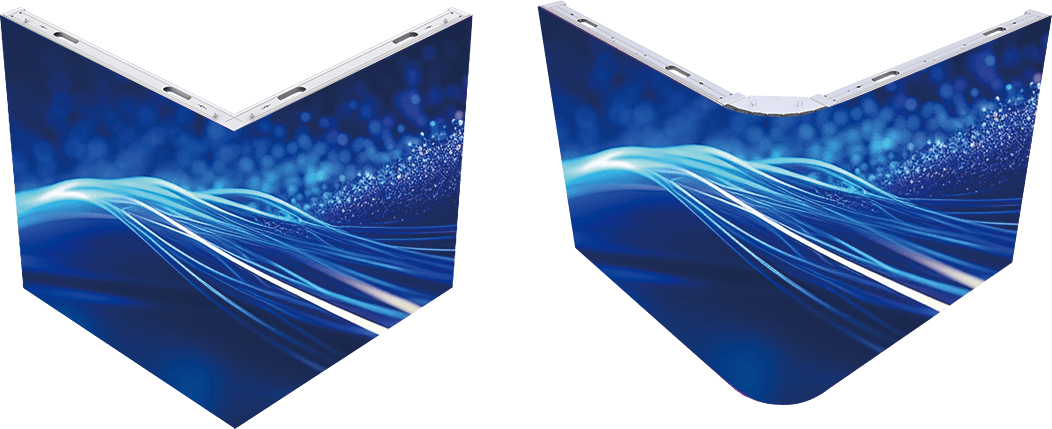

Flexible Splicing Design

Supports 90° right-angle and curved splicing, enabling more flexible installations and adapting to different structural requirements.

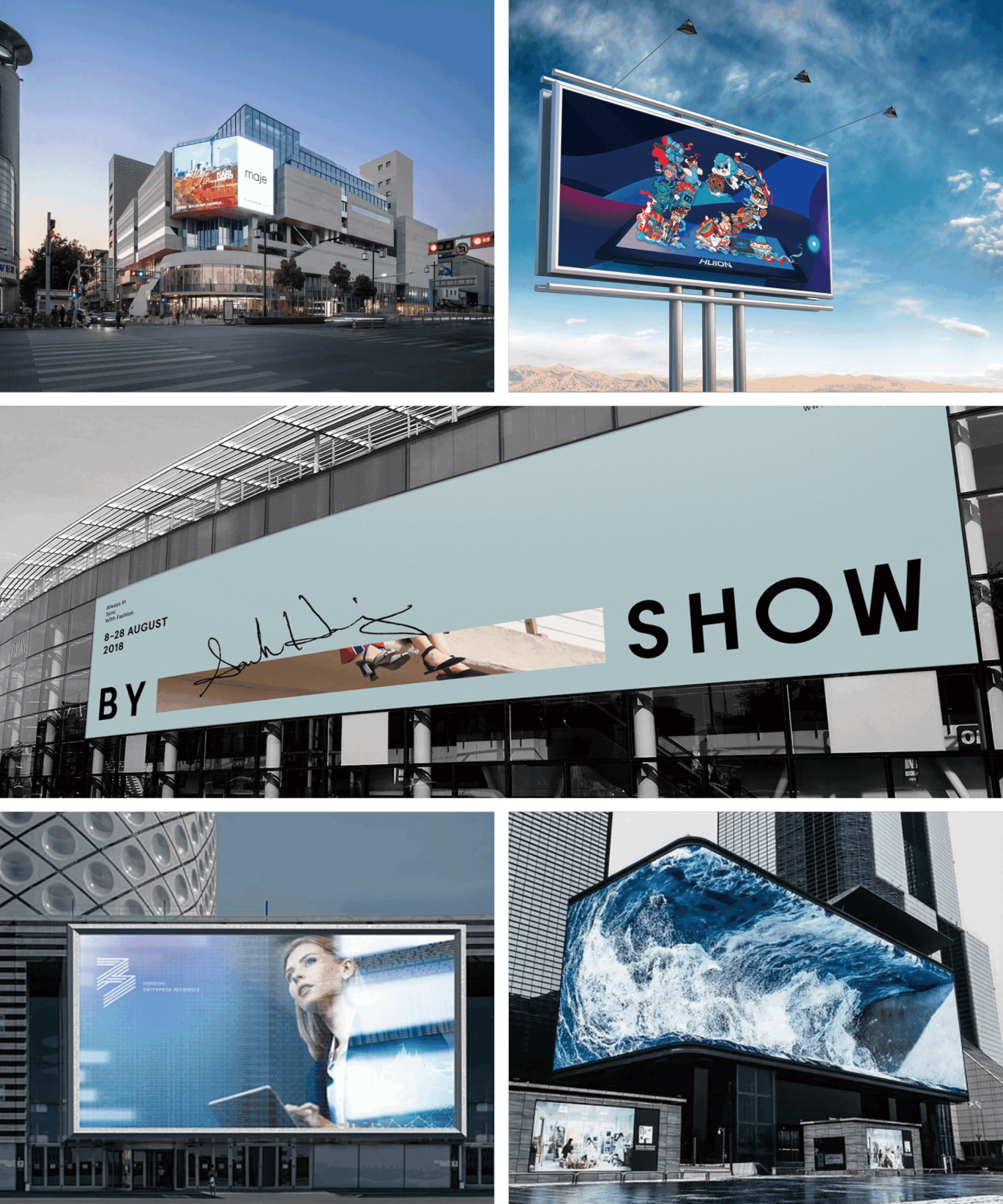

Application Scenarios

Ideal for outdoor advertising, stadiums, transportation hubs, commercial plazas, and public spaces
where high brightness, durability, and reliable performance are essential.

11

Parameters

Items SFC04 SFC05 SFC06 SFC08 SFC10
Pixel Pitch (mm) 4.44 5.7 6.67 8 10
LED Type SMD1921 SMD2727 SMD2727 SMD2727 SMD2727
Module Resolution (W×H) 108×72 84×56 72×48 60×40 48×32
Cabinet Resolution (W×H) 216×216 168×168 144×144 120×120 96×96
Cabinet Material profile Cabinet
Module Size (mm) 480×320
Cabinet Size (mm) 960×960×90 960×960×91 960×960×92 960×960×93 960×960×93
Cabinet Weight (kg/cabinet) 24.5
Maintenance Front & Rear
Protection Level IP66
Brightness (nits) ≥5,500 ≥6,500 ≥6,500 ≥6,500 ≥6,500
Color Temperature (K) 6,500–9,000 (adjustable)
Viewing Angle (H/V) 140°/120°
Input Voltage AC100V–AC240V
Scan Mode 1/9 1/7 1/6 1/3 1/2
Refresh Rate (Hz) 3,840/7,680Hz
Peak Power Consumption (W/m²) ≤550
Average Power Consumption (W/m²) ≤186
Items SFCH02 SFCH03 SFCH04 SFCH06 SFCH07 SFCH10
Pixel Pitch (mm) 2.97 3.91 4.81 6.25 7.81 10.42
LED Type SMD1415 SMD1415 SMD1921 SMD2727 SMD2727 SMD2727
Module Resolution (W×H) 168×84 128×64 104×52 80×40 64×32 48×24
Cabinet Resolution (W×H) 336×336 256×256 208×208 160×160 128×128 96×96
Cabinet Material Profile Cabinet
Module Size (mm) 500×250
Cabinet Size (mm) 1,000×1,000×85 1,000×1,000×85 1,000×1,000×85 1,000×1,000×87 1,000×1,000×87 1,000×1,000×87
Cabinet Weight (kg/cabinet) 25
Maintenance Front & Rear
Protection Level IP66
Brightness (nits) ≥5,000 ≥5,500 ≥6,000 ≥6,500 ≥6,500 ≥6,500
Color Temperature (K) 6,500–9,000 (adjustable)
Viewing Angle (H/V) 140°/120°
Input Voltage AC100V–AC240V
Scan Mode 1/21 1/8 1/7 1/5 1/4 1/2
Refresh Rate (Hz) 3,840/7,680Hz
Peak Power Consumption (W/m²) ≤550
Average Power Consumption (W/m²) ≤186
Items SFCS13 SFCS19 SFCS26 SFCS29 SFCS39 SFCS48
Pixel Pitch (mm) 1.3 1.95 2.6 2.97 3.91 4.81
LED Type MIP1010 SMD1415 SMD1415 SMD1415 SMD1415 SMD1921
Module Resolution (W×H) 192×192 128×128 96×96 84×84 64×64 52×52
Cabinet Resolution (W×H) 384×768 256×512 192×384 168×336 128×256 104×208
Cabinet Material Profile Cabinet
Module Size (mm) 250×250
Cabinet Size (mm) 500×500×83 500×1,000×84 500×1,000×84 500×1,000×85 500×1,000×85 500×1,000×85
Cabinet Weight (kg/cabinet) 8.5 16 16 16 16 16
Maintenance Front & Rear
Protection Level IP66
Brightness (nits) ≥4,000 ≥5,000 ≥5,000 ≥5,000 ≥5,500 ≥6,000
Color Temperature (K) 6,500–9,000 (adjustable)
Viewing Angle (H/V) 140°/120°
Input Voltage AC100V–AC240V
Scan Mode 1/48 1/32 1/24 1/21 1/8 1/7
Refresh Rate (Hz) 3,840/7,680Hz
Peak Power Consumption (W/m²) ≤550
Average Power Consumption (W/m²) ≤186
