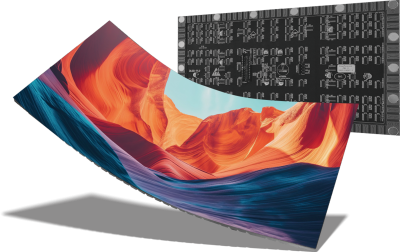

SF Series Flexible LED Module

Pixel Pitch (mm) : 0.9–4
Cabinet Size (mm): 240×120 / 320×160 / 250×250 / 256×128 / 300×168.75 / 480×160 / 480×320

产品图

Various Module Sizes

The SF Series Flexible LED Modules are available in a range of sizes to meet diverse project requirements, offering full adaptability for creative installations.

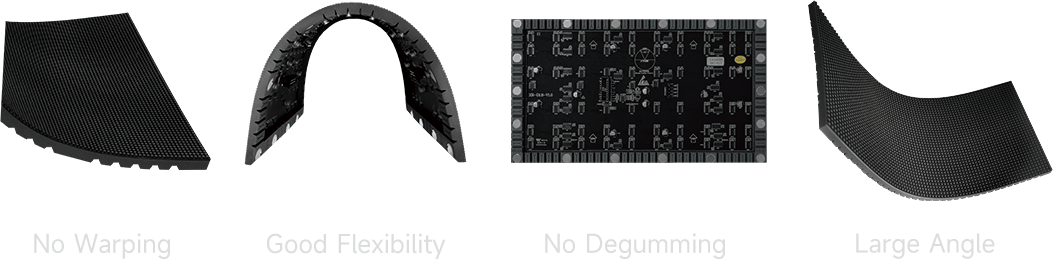

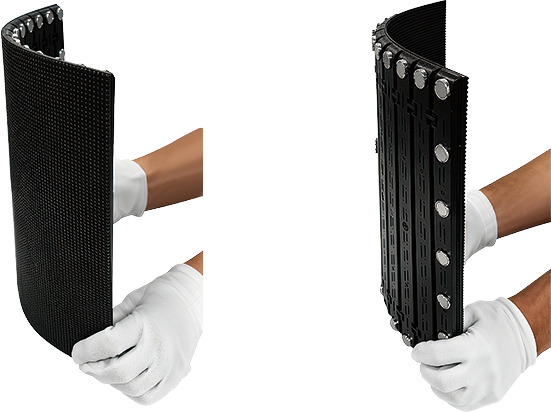

No Warping, Excellent Flexibility

Featuring strong adhesion with no degumming, these modules ensure smooth, curved installations while supporting wide viewing angles and reliable long-term performance.

Concave & Convex

Capable of bending both inward and outward, the modules allow versatile design possibilities for unique display shapes.

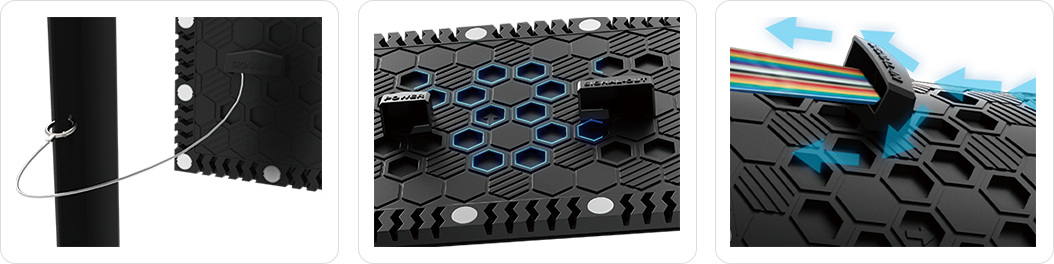

Safe & Protective Design

The cell structure ensures secure anti-dropping performance, while the interface design offers added protection for stable operation.

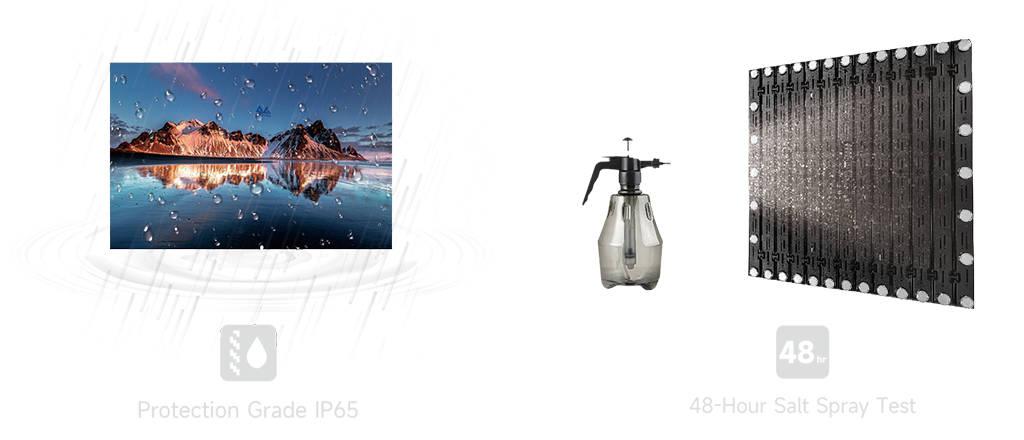

Outdoor Durability

The outdoor version is rated IP65 waterproof and has passed a 48-hour salt spray test, ensuring high reliability even in harsh environments.

Easy Installation

With strong magnetic installation, setup is quick and efficient, providing seamless assembly without complexity.

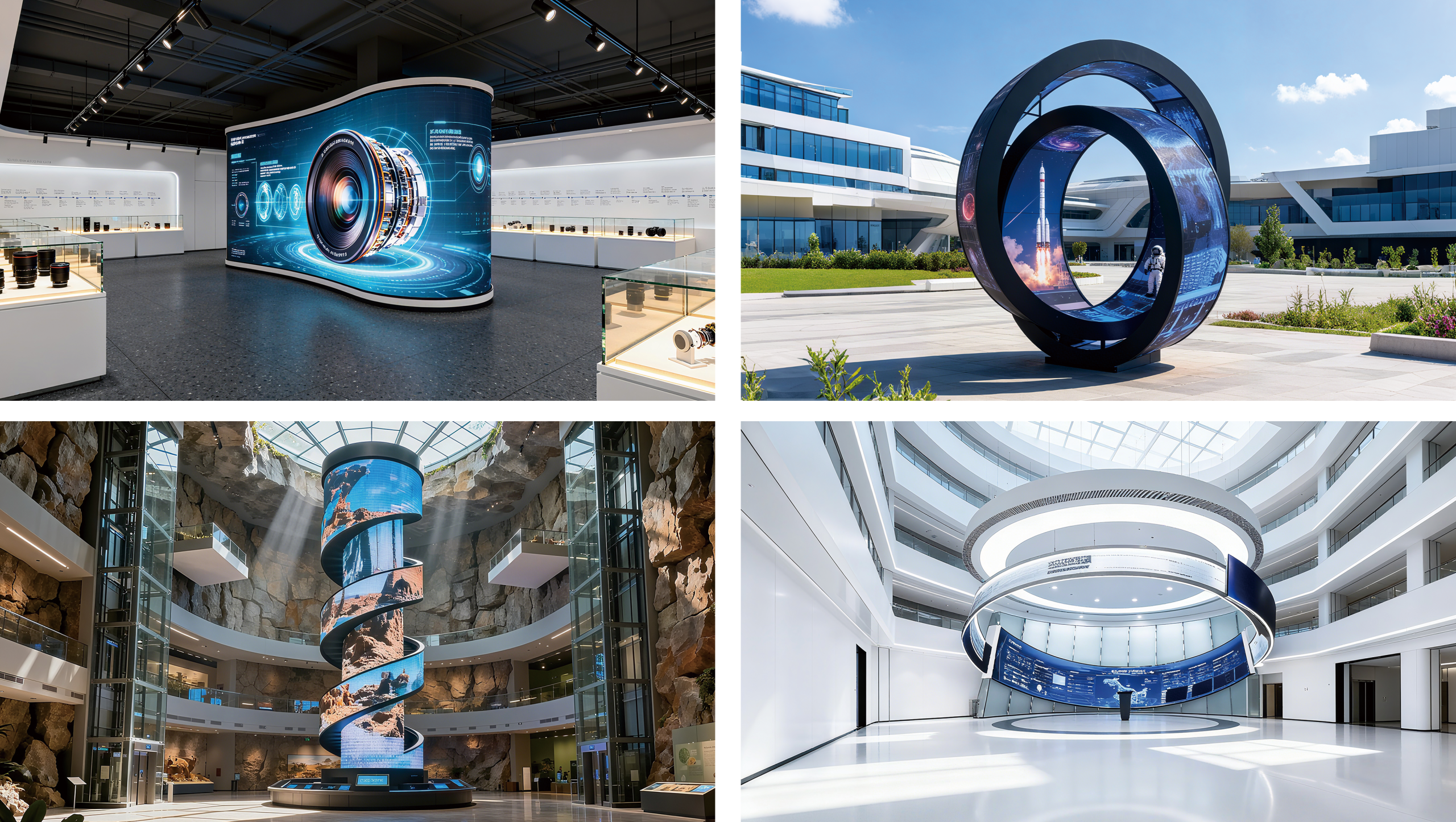

Unlimited Design Possibilities

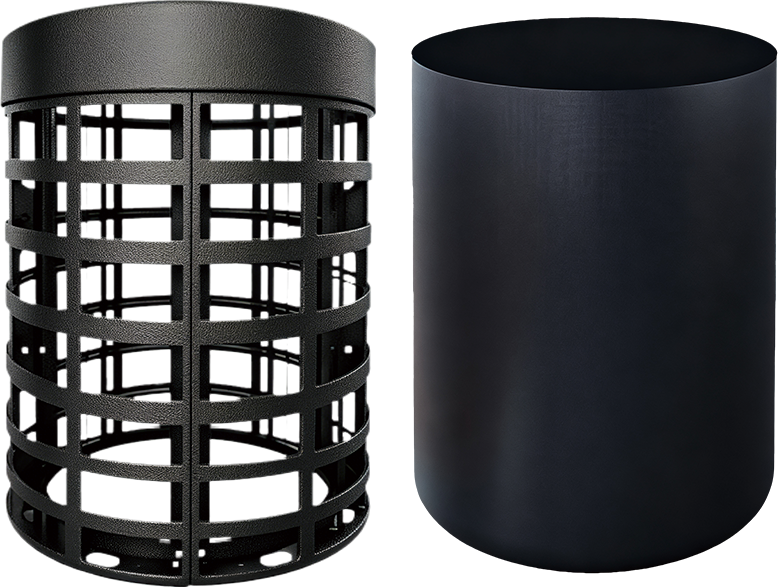

From square columns and round pillars to Möbius rings, arcs, ribbons, spheres, or curved walls, these flexible modules make almost any creative design possible.

Immersive Experience Support

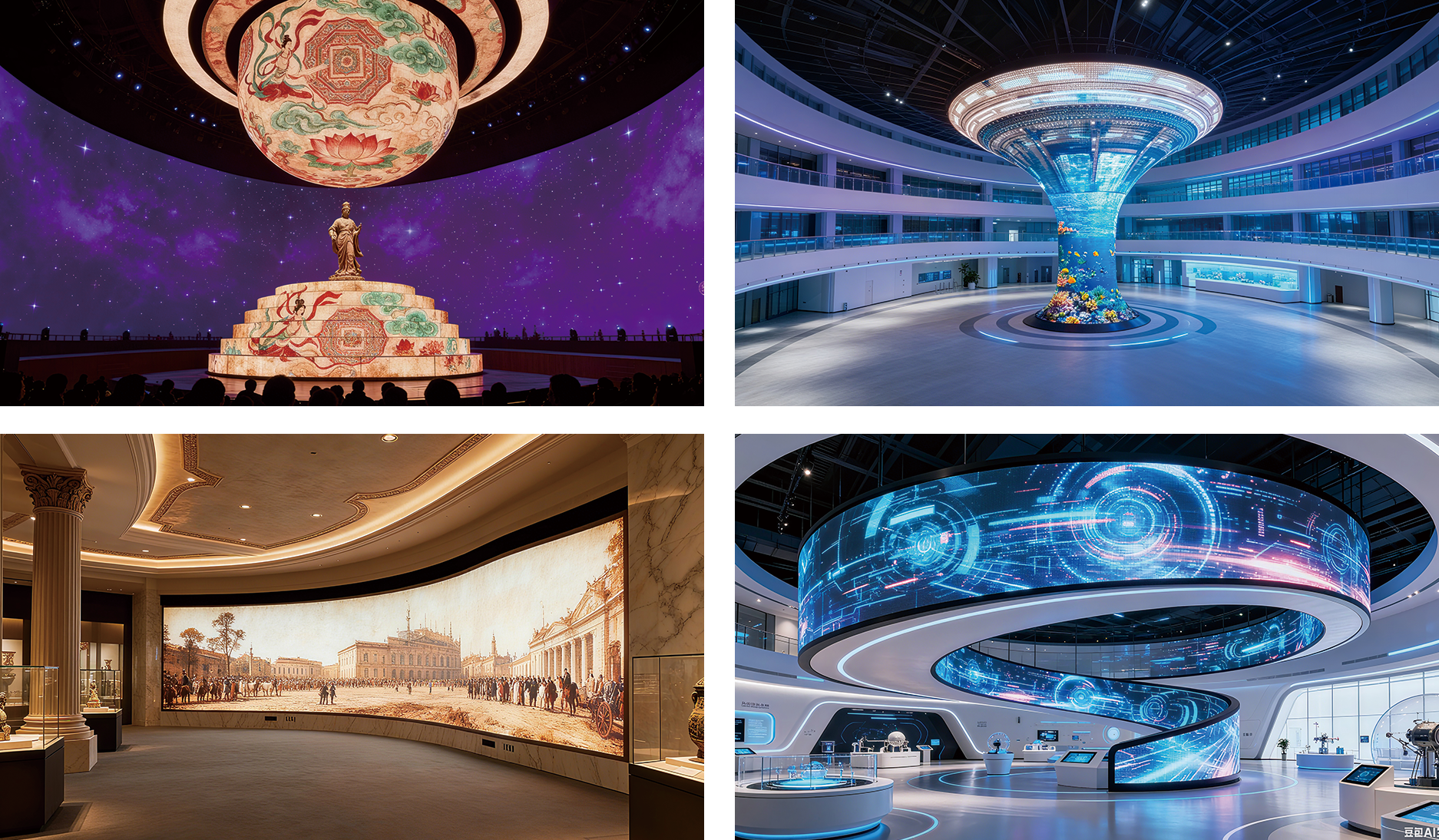

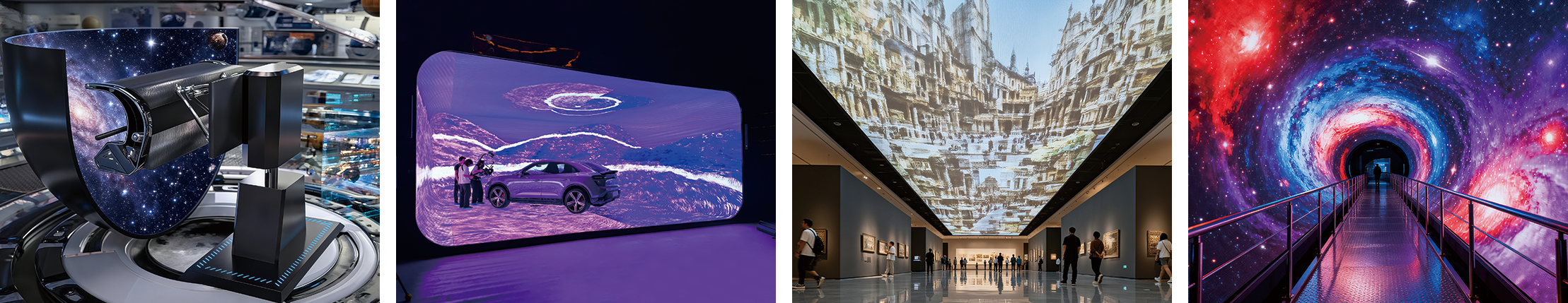

Flexible LED modules enable the creation of dome displays, arc cave immersive displays, ceiling installations, and tunnel-style LED displays for captivating experiences.

Application Scenarios

Ideal for corporate showrooms, science and technology museums, cinemas, shopping malls, studios, amusement parks, cultural attractions, and gaming environments.

Parameters

Download
SF Series (COB Technology) : 240×120
Items SF-COB
Pixel Pitch (mm) 0.9
Pixel Composition 1R1G1B
Pixel Density (pixels/m²) 1,137,777
Module Size (mm) 240×120×3.9
Module Resolution (W×H) 256×128
Scan Mode 1/64
Standard Constant Current IC PWM
Refresh Rate (Hz) 3,840–4,200
Frame Rate (Hz) 60
Grayscale (bit) 13
Minimum Assembly Diameter (mm) 764
Minimum Bending Arc ≥162°
Signal Interface Type 320 Interface
Module Weight (g/pc) 150
Flatness (mm) ≤0.3
Protection Level Front: IP65 ; Back: IP30
Installation / Maintenance Front Installation / Front & Rear Maintenance
Brightness (nits) 1,000 (after calibration)
Color Temperature (K) 10,000–12,000 (adjustable)
Coordinates X: 0.2500 ±0.01, Y: 0.3000 ±0.01
Viewing Angle (H/V) 160°/140°
Contrast Ratio 15,000:1
Module Power Supply Voltage DC (V) R: 2.8 / GB: 3.8
Module Maximum Current DC (A) R: 1 / GB: 1.8
Module Maximum Power Consumption (W/pc) 10
Input Voltage AC100V–AC240V
Peak Power Consumption (W/m²) 370
Average Power Consumption (W/m²) 111
Lifespan (h) 100,000
Operating Environment -20 ℃ ~ 45 ℃, 10% ~ 90% RH, no condensing
Storage Environment -20 ℃ ~ 50 ℃, 10% ~ 90% RH, no condensing
FLASH Function Supported
SF-A Series: 240×120
Items SFA09 SFA12 SFA15 SFA16 SFA18 SFA2 SFA25 SFA3-15 SFA3-20 SFA4
Pixel Pitch (mm) 0.9375 1.25 1.579 1.667 1.875 2 2.5 3 3 4
Pixel Composition 1R1G1B
LED Type Mini LED 4-in-1 SMD1010 Chip SMD1212 SMD1212 SMD1515 SMD1515 SMD1515 SMD1515 SMD2020 SMD2020
Pixel Density (pixels/m²) 1,137,775 640,000 401,110 359,999 284,444 250,000 160,000 111,111 111,111 62,500
Module Size (mm) 240×120×8.4 240×120×8.6
Module Resolution (W×H) 256×128 192×96 152×76 144×72 128×64 120×60 96×48 80×40 80×40 60×30
Scan Mode 1/64 1/48 1/38 1/36 1/32 1/30 1/24 1/20 1/20 1/15
Standard Constant Current IC Common Cathode PWM PWM PWM PWM PWM PWM Dual-Buffer or PWM Dual-Buffer Dual-Buffer Dual-Buffer
Refresh Rate (Hz) 2,880–3,840 3,840–4,200 3,840–4,200 3,840–4,200 3,840 3,840 1,920–3,840 1,920 1,920 1,920
Frame Rate (Hz) 60
Grayscale (bit) 13–14 13–14 13–14 13–14 12–13 12–13 12 12 12 12
Minimum Assembly Diameter (mm) 1,222 1,222 917 764 611 611 306 306 458 306
Minimum Bending Arc ≥169° ≥169° ≥165° ≥162° ≥158° ≥158° ≥135° ≥135° ≥150° ≥135°
Signal Interface Type HUB320 (non-cascading) HUB75 (non-cascading) HUB75 (input & output)
Module Back Shell Material Silicone Soft Back Shell
Module Weight (g/pc) 220 220 210 200 217 210 190 190 200 175
Flatness (mm) ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5
Installation / Maintenance Front & Rear
Brightness (nits) 500–550 600–650 700–750 700–750 750–800 750–800 750–800 750–800 850–900 750–800
Color Temperature (K) 10,000–12,000 (adjustable)
Coordinates X: 0.2500 ±0.01, Y: 0.3000 ±0.01
Viewing Angle (H/V) 150°/120° 160°/140° 150°/120° 150°/120° 150°/120° 150°/120° 150°/120° 150°/120° 140°/120° 140°/120°
Contrast Ratio ≥5,000:1 ≥6,000:1 ≥6,000:1 ≥6,000:1 ≥5,000:1 ≥5,000:1 ≥5,000:1 ≥5,000:1 ≥5,000:1 ≥5,000:1
Module Power Supply Voltage DC (V) R: 2.8 / GB: 3.8 5
Module Maximum Current DC (A) 3.8 3.2 2.8 2.8 2.8 2.8 2.6 2.5 2.8 2.6
Module Maximum Power Consumption (W/pc) 14 16 14 14 14 14 13 12.5 14 13
Input Voltage AC220V
Peak Power Consumption (W/m²) 490 560 490 490 490 490 460 440 490 460
Average Power Consumption (W/m²) 140 160 140 140 140 140 130 125 140 130
Lifespan (h) 100,000
Operating Environment -20 ℃ ~ 40 ℃, 20% ~ 75% RH
SF-B Series: 256×128
Items SFB2 SFB4
Pixel Pitch (mm) 2 4
Pixel Composition 1R1G1B
LED Type SMD1515 SMD2020
Pixel Density (pixels/m²) 250,000 62,500
Module Size (mm) 256×128×8.6
Module Resolution (W×H) 128×64 64×32
Scan Mode 1/32 1/16
Standard Constant Current IC PWM Dual-Buffer
Refresh Rate (Hz) 3,840 1,920
Frame Rate (Hz) 60
Grayscale (bit) 12–13 12
Minimum Assembly Diameter (mm) 652 326
Minimum Bending Arc ≥158° ≥135°
Signal Interface Type HUB75 (input & output)
Module Back Shell Material Silicone Soft Back Shell
Module Weight (g/pc) 225 195
Flatness (mm) ≤0.5
Installation / Maintenance Front & Rear
Brightness (nits) 750–800 750–800
Color Temperature (K) 10,000–12,000 (adjustable)
Coordinates X: 0.2500 ±0.01, Y: 0.3000 ±0.01
Viewing Angle (H/V) 150°/120° 140°/120°
Contrast Ratio ≥5,000:1
Module Power Supply Voltage DC (V) 5
Module Maximum Current DC (A) 2.8
Module Maximum Power Consumption (W/pc) 14
Input Voltage AC220V
Peak Power Consumption (W/m²) 490
Average Power Consumption (W/m²) 140
Lifespan (h) 100,000
Operating Environment -20 ℃ ~ 40 ℃, 20% ~ 75% RH
SF-C Series: 320×160
Items SFC125 SFC129 SFC153 SFC156 SFC186 SFC2 SFC2.5 SFC3 SFC4
Pixel Pitch (mm) 1.25 1.29 1.538 1.568 1.86 2 2.5 3 4
Pixel Composition 1R1G1B
LED Type SMD1010 Top SMD1010 Chip SMD1212 SMD1212 SMD1515 SMD1515 SMD1515 SMD1515 SMD2020
Pixel Density (pixels/m²) 640,000 600,625 422,500 406,406 288,906 250,000 160,000 105,625 62,500
Module Size (mm) 320×160×8.6
Module Resolution (W×H) 256×128 248×124 208×104 204×102 172×86 160×80 128×64 104×52 80×40
Scan Mode 1/64 1/62 1/52 1/51 1/43 1/40 1/32 1/26 1/20
Standard Constant Current IC PWM PWM PWM PWM PWM PWM Dual-Buffer or PWM Dual-Buffer Dual-Buffer
Refresh Rate (Hz) 3,840 3,840 3,840 3,840 3,840 3,840 1,920–3,840 1,920 1,920
Frame Rate (Hz) 60
Grayscale (bit) 13–14 12–13 12
Minimum Assembly Diameter (mm) 1,222 1,222 1,019 815 611 611 407 407 407
Minimum Bending Arc ≥165° ≥165° ≥162° ≥158° ≥150° ≥150° ≥135° ≥135° ≥135°
Signal Interface Type HUB75 (non-cascading) HUB75 (input & output)
Module Back Shell Material Silicone Soft Back Shell
Module Weight (g/pc) 330 400 340 340 340 340 290 290 280
Flatness (mm) ≤0.3 ≤0.5
Installation / Maintenance Front & Rear
Brightness (nits) 600–650 600–650 600–650 600–650 700–750 700–750 700–750 650–750 700–750
Color Temperature (K) 10,000–12,000 (adjustable)
Coordinates X: 0.2500 ±0.01, Y: 0.3000 ±0.01
Viewing Angle (H/V) 140°/120° 160°/130° 150°/120° 140°/120°
Contrast Ratio ≥6,000:1 ≥6,000:1 ≥6,000:1 ≥6,000:1 ≥5,000:1 ≥6,000:1 ≥6,000:1 ≥6,000:1 ≥5,000:1
Module Power Supply Voltage DC (V) 5
Module Maximum Current DC (A) 5 5 4.5 4.5 4.4 4.6 4.2 4.2 3.6
Module Maximum Power Consumption (W/pc) 30 30 22.5 22.5 22 23 21 21 18
Input Voltage AC220V
Peak Power Consumption (W/m²) 600 600 440 440 430 450 410 410 360
Average Power Consumption (W/m²) 170 170 125 125 123 128 118 118 103
Lifespan (h) 100,000
Operating Environment -20 ℃ ~ 40 ℃, 20% ~ 75% RH
SF-D Series: 300×168.75
Items SFD12 SFD15 SFD18 SFD23
Pixel Pitch (mm) 1.2 1.5 1.8 2.3
Pixel Composition 1R1G1B
LED Type SMD1010 Chip SMD1212 SMD1212 SMD1515
Pixel Density (pixels/m²) 640,000 409,600 284,440 182,041
Module Size (mm) 320×168.75×7.5
Module Resolution (W×H) 240×135 192×108 160×90 128×72
Scan Mode 1/45 1/54 1/45 1/36
Standard Constant Current IC PWM
Refresh Rate (Hz) 3,840
Frame Rate (Hz) 60
Grayscale (bit) 13–14 12–13
Minimum Assembly Diameter (mm) 1,146 955 764 573
Minimum Bending Arc ≥165° ≥162° ≥158° ≥150°
Signal Interface Type HUB320 (non-cascading) HUB75 (non-cascading)
Module Back Shell Material Silicone Soft Back Shell
Module Weight (g/pc) 280 280 290 250
Flatness (mm) ≤0.3 ≤0.5
Installation / Maintenance Front & Rear
Brightness (nits) 600–650 700–750
Color Temperature (K) 10,000–12,000 (adjustable)
Coordinates X: 0.2500 ±0.01, Y: 0.3000 ±0.01
Viewing Angle (H/V) 160°/130° 150°/120°
Contrast Ratio ≥6,000:1 ≥5,000:1
Module Power Supply Voltage DC (V) 5
Module Maximum Current DC (A) 4.5 4.2 4 4
Module Maximum Power Consumption (W/pc) 22.5 21 20 20
Input Voltage AC220V
Peak Power Consumption (W/m²) 450 420 400 400
Average Power Consumption (W/m²) 128 120 115 115
Lifespan (h) 100,000
Operating Environment -20 ℃ ~ 40 ℃, 20% ~ 75% RH
SF-E Series: 250×250
Items SFE15 SFE19 SFE26
Pixel Pitch (mm) 1.5625 1.953 2.604
Pixel Composition 1R1G1B
LED Type SMD1212 SMD1515 SMD1515
Pixel Density (pixels/m²) 409,600 262,144 147,456
Module Size (mm) 250×250×11.2
Module Resolution (W×H) 160×160 128×128 96×96
Scan Mode 1/40 1/32 1/32
Standard Constant Current IC PWM
Refresh Rate (Hz) 3,840
Frame Rate (Hz) 60
Grayscale (bit) 13–14 14 14
Minimum Assembly Diameter (mm) 1,592 1,273 1,273
Bending Arc 171° ≥169° ≥169°
Signal Interface Type HUB75 (non-cascading)
Module Back Shell Material Plastic Back Shell
Module Weight (g/pc) 480 500±10 450±10
Flatness (mm) ≤0.3
Protection Level IP10
Installation / Maintenance Front Front Installation / Front & Rear Maintenance Front & Rear
Brightness (nits) 650–700 700–750 650–700
Color Temperature (K) 10,000–12,000 (adjustable)
Coordinates X: 0.2500 ±0.01, Y: 0.3000 ±0.01
Viewing Angle (H/V) 150°/120°
Contrast Ratio ≥5,000:1
Module Power Supply Voltage DC (V) 5
Module Maximum Current DC (A) 6 6.2 6
Module Maximum Power Consumption (W/pc) 30 31 30
Input Voltage AC220V
Peak Power Consumption (W/m²) 480 500 490
Average Power Consumption (W/m²) 140 143 140
Lifespan (h) 100,000
Operating Environment -20 ℃ ~ 50 ℃, 20% ~ 90% RH -10 ℃ ~ 40 ℃, 20% ~ 75% RH
SF-AC Series: 480×320
Items SFAC25
Pixel Pitch (mm) 2.5
Pixel Composition 1R1G1B
LED Type SMD1515
Pixel Density (pixels/m²) 160,000
Module Size (mm) 480×320×5.8
Module Resolution (W×H) 192×128
Scan Mode 1/32
Standard Constant Current IC PWM
Refresh Rate (Hz) 3840
Frame Rate (Hz) 60
Grayscale (bit) 14–15
Minimum Assembly Diameter (mm) 1,222
Bending Arc ≥158°
Signal Interface Type Hard Connection
Module Back Shell Material Silicone Soft Back Shell
Module Weight (kg/pc) 1.5
Flatness (mm) ≤0.3
Protection Level Back: IP20
Installation / Maintenance Front Installation / Front & Rear Maintenance
Brightness (nits) 600
Color Temperature (K) 10,000–12,000 (adjustable)
Coordinates X: 0.2500 ±0.01, Y: 0.3000 ±0.01
Viewing Angle (H/V) 150°/120°
Contrast Ratio 6,000:1
Module Power Supply Voltage DC (V) 4.2
Module Maximum Current DC (A) 14
Module Maximum Power Consumption (W/pc) 65
Input Voltage AC100V–AC240V
Peak Power Consumption (W/m²) 440
Average Power Consumption (W/m²) 125
Lifespan (h) 100,000
Operating Environment -20 ℃ ~ 40 ℃, 20% ~ 80% RH
FLASH Function Optional
Items SFCA4
Pixel Pitch (mm) 4
Pixel Composition 1R1G1B
LED Type SMD1921
Pixel Density (pixels/m²) 625,000
Module Size (mm) 480×160×10.8
Module Resolution (W×H) 120×40
Scan Mode 1/10
Standard Constant Current IC PWM
Refresh Rate (Hz) ≥3840
Frame Rate (Hz) 60
Grayscale (bit) 15
Minimum Assembly Diameter (mm) 917
Bending Arc ≥150°
Signal Interface Type HUB75
Module Back Shell Material PC+GF
Module Weight (g/pc) 560
Flatness (mm) ≤0.4
Protection Level IP65
Installation / Maintenance Front Installation / Front & Rear Maintenance
Brightness (nits) 4,500
Color Temperature (K) 9,000–9,500 (adjustable)
Coordinates X: 0.2800 ±0.01, Y: 0.3000 ±0.01
Viewing Angle (H/V) 140°/120°
Contrast Ratio 3,000:1
Module Power Supply Voltage DC (V) 4.2–5
Module Maximum Current DC (A) 10
Module Maximum Power Consumption (W/pc) 50
Input Voltage AC100V–AC240V
Peak Power Consumption (W/m²) 670
Average Power Consumption (W/m²) 190
Lifespan (h) 100,000
Operating Environment -20 ℃ ~ 50 ℃, 20% ~ 90% RH
TOP
