SE Series

COB Technology
SE-A Series: 108" / 135" / 163" / 216" SE-B Series: 130" / 147" / 158"
SMD Technology
SE-C Series: 110" / 130" / 165" / 220"

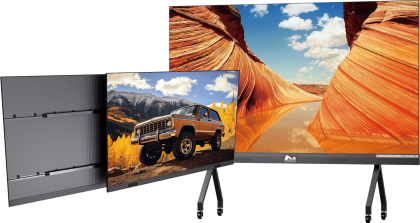

组 6

SE-A Series (COB)

108" · 135" · 163" · 216"

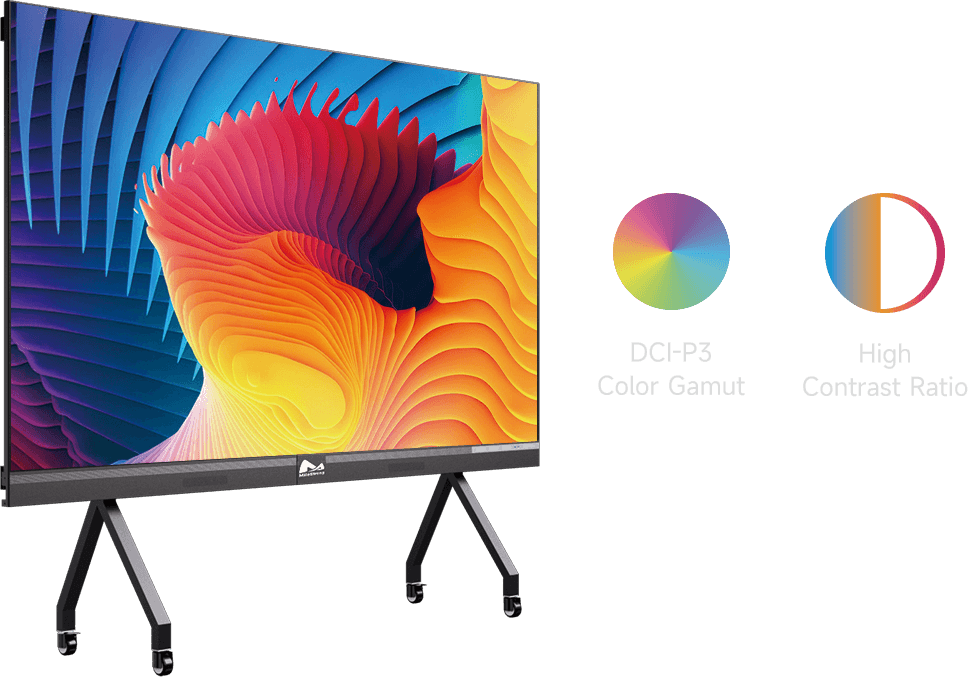

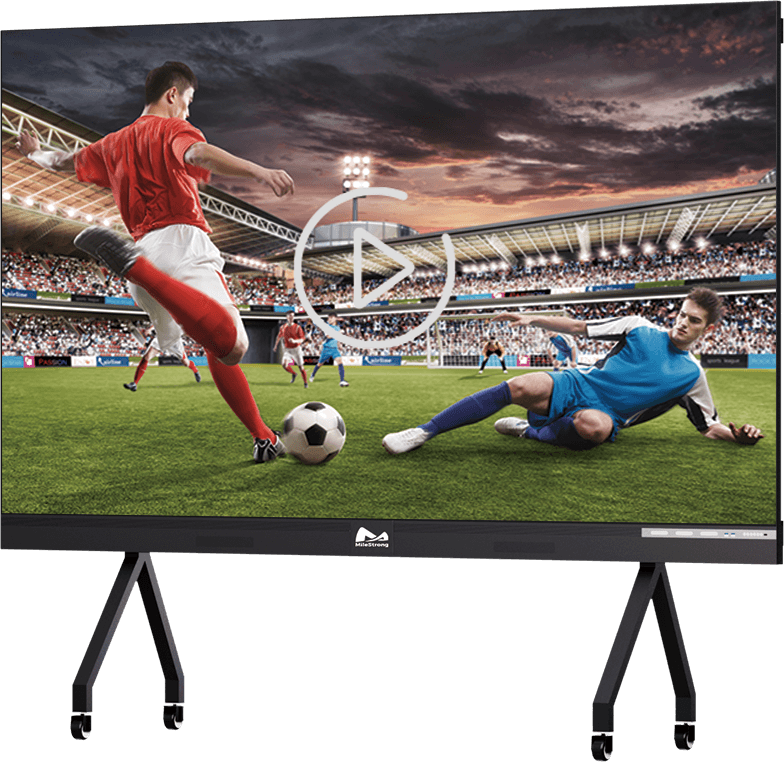

Superior Visual Quality

Powered by advanced flip-chip COB technology, the all-in-one display delivers energy efficiency with enhanced eye comfort.
Featuring a DCI-P3 wide color gamut and high contrast ratio, it ensures smooth color transitions and precise detail reproduction for truly refined visuals.

All-in-One Smart Design

Designed with a built-in Android 11.0 system and octa-core processor for powerful performance.
Equipped with multiple input and output interfaces and dual-channel surround sound.
Supports external cameras, microphones, and other peripherals for seamless connectivity.

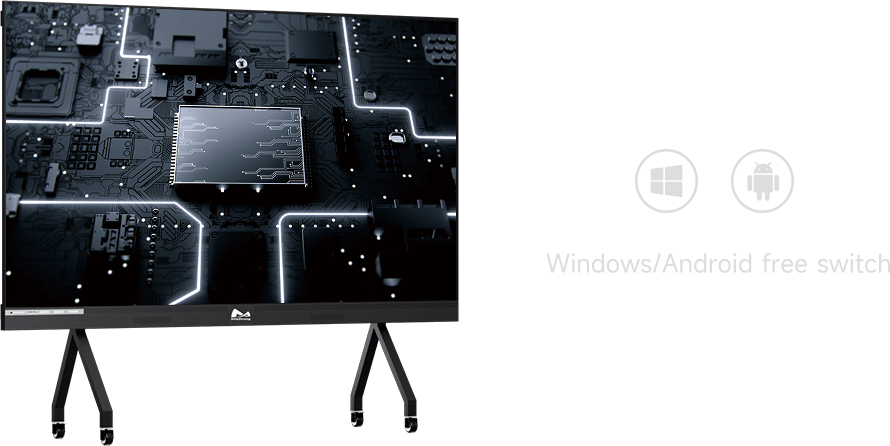

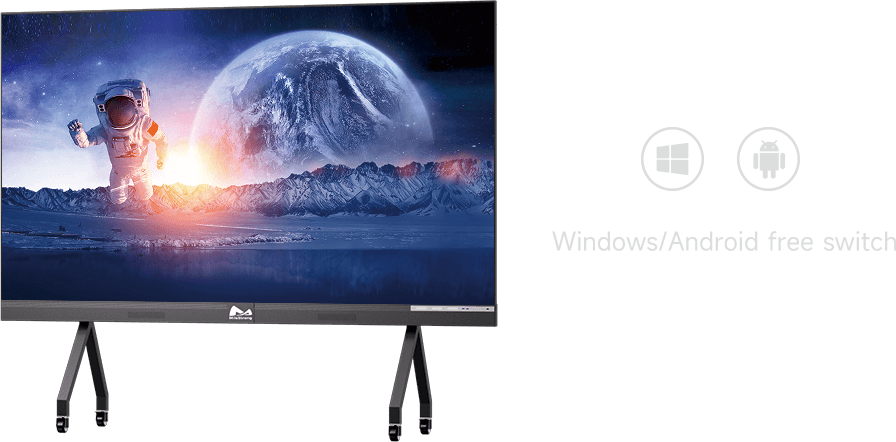

Dual Operating System (Optional)

Seamless switching between Windows and Android systems for enhanced flexibility and productivity.

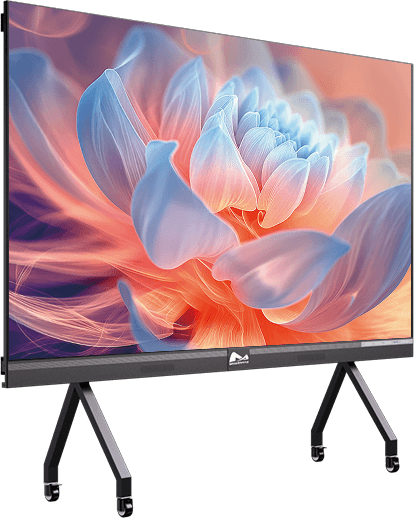

Immersive UHD Display

Available in 2K and 4K resolutions with a 16:9 aspect ratio.
Multiple size options: 108" · 135" · 163" · 216"

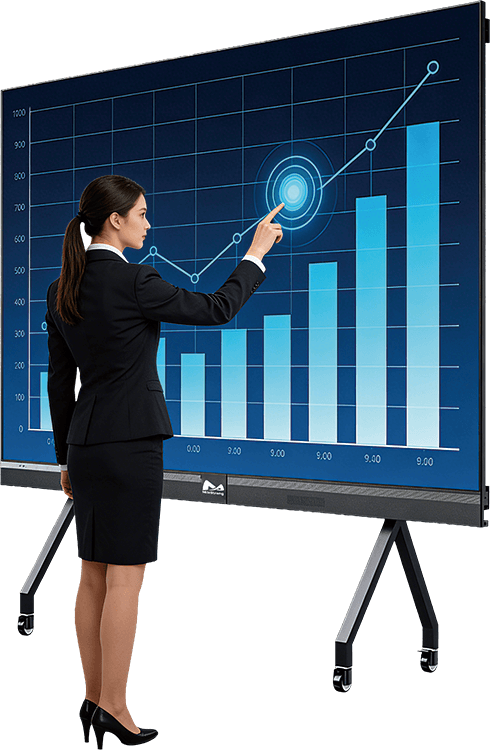

Precision Touch Control

Equipped with highly accurate infrared touch technology, compatible with dual systems. Touch accuracy of ±2mm enables responsive,
precise interaction and smooth, natural writing for more efficient collaboration.

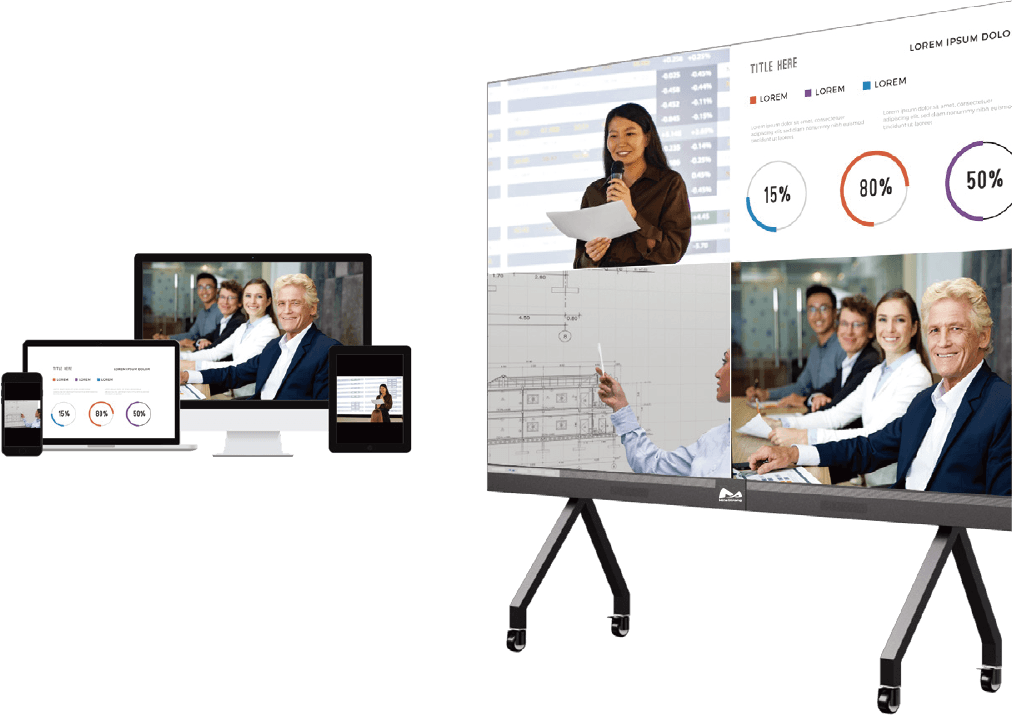

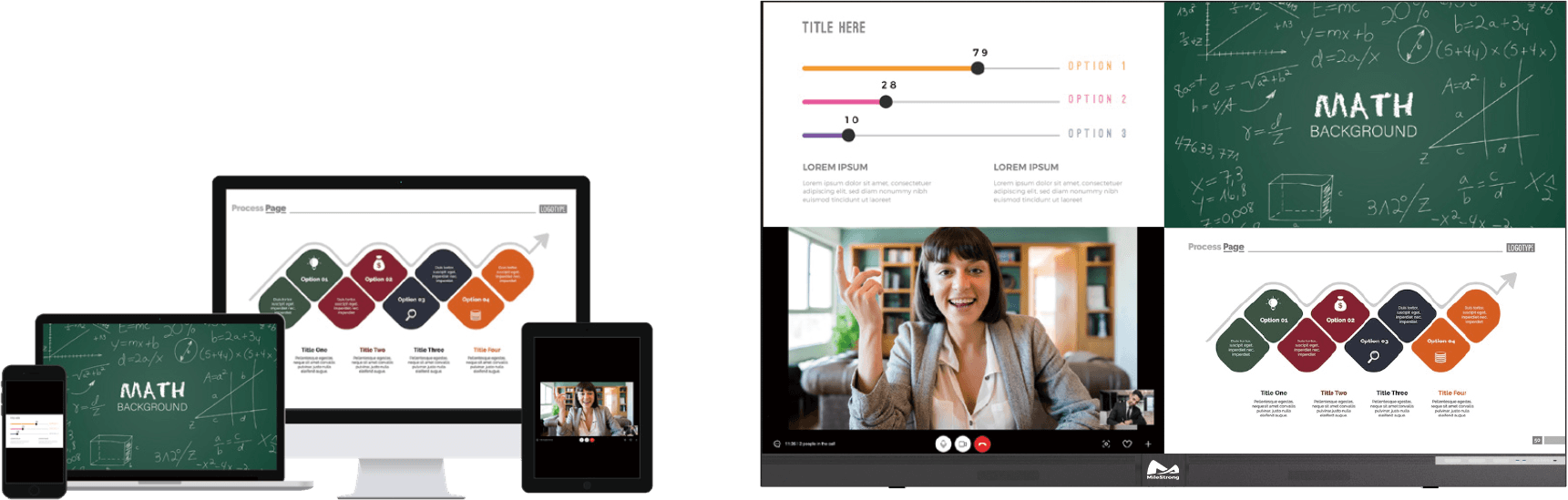

Smart Screen Mirroring

Supports wireless screen sharing across Windows, macOS, iOS, and Android platforms, with up to four screens displayed simultaneously.
Pre-installed whiteboard and video conferencing applications, with support for additional app installations.

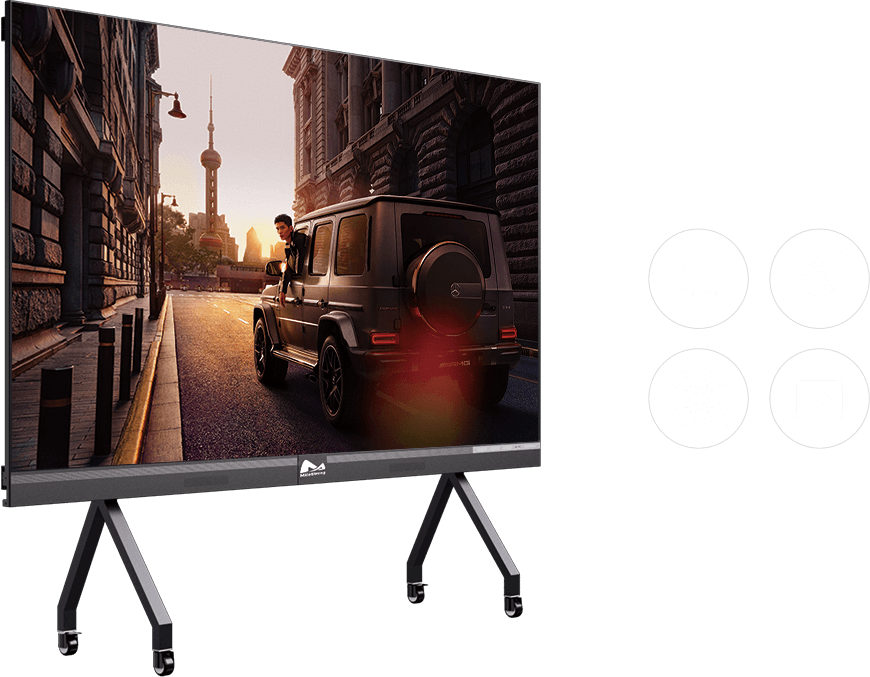

Multiple Display Modes

Offers Standard, Soft, Cinema, and Video modes to adapt to different meeting environments and visual preferences.

Easy Installation & Maintenance

Supports wall mounting and mobile stand installation. Full front-service design ensures convenient installation and easy maintenance.

SE-B Series (COB)

130" · 147" · 158"

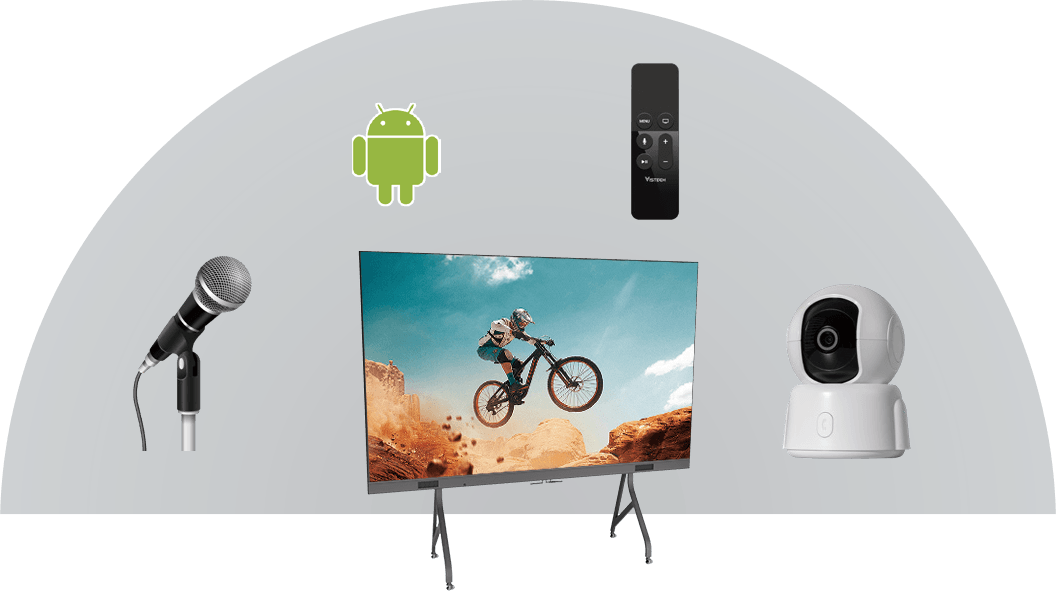

Smart Interaction, Complete Control

Powered by a built-in Android 13.0 system with 4GB RAM and 64GB storage, the SE-B Series delivers smooth and responsive operation.
Integrated speakers support external cameras and microphones, while brightness, volume, and input sources can be easily adjusted via
onboard buttons or remote control for seamless user experience.

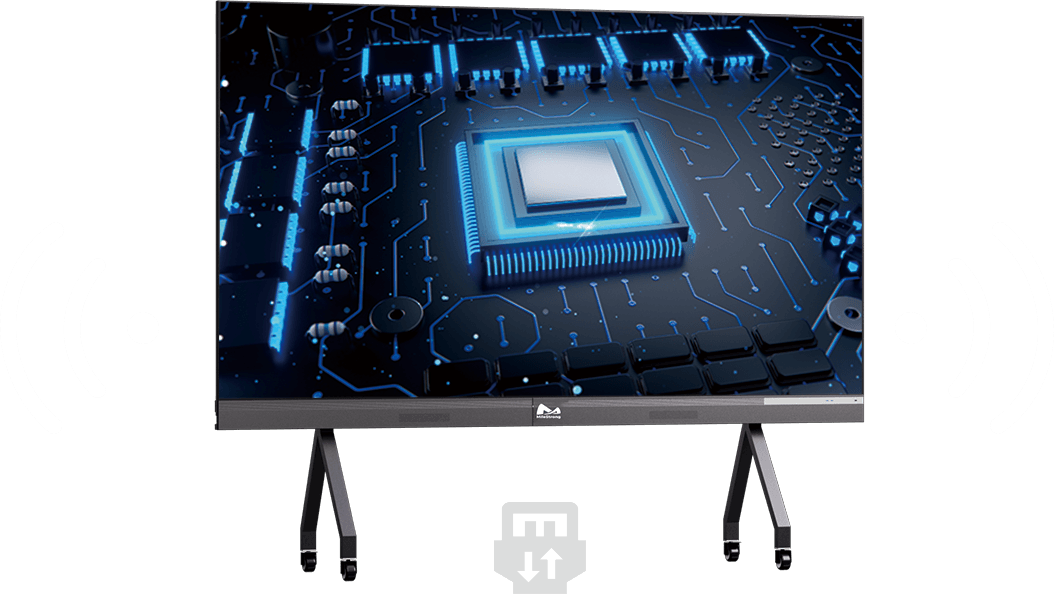

Multi-Platform Wireless Casting

Supporting wireless screen sharing from Windows, iOS, Android, and dedicated casting devices, the SE-B Series enables effortless content collaboration.
Up to four screens can be displayed simultaneously, enhancing teamwork and interactive presentations.

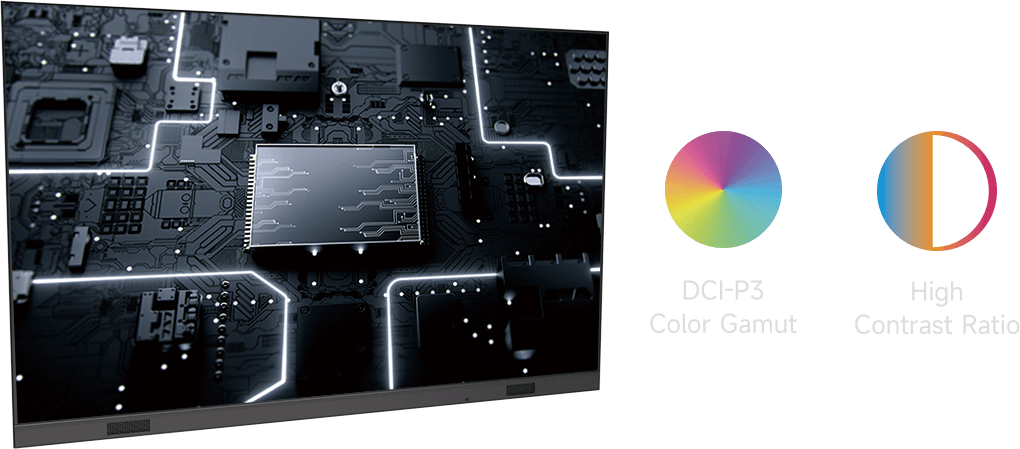

Advanced COB Technology

Equipped with cutting-edge COB panels, the display offers a wide color gamut and high contrast ratio,
delivering vivid colors and sharp, lifelike details for professional visual performance.

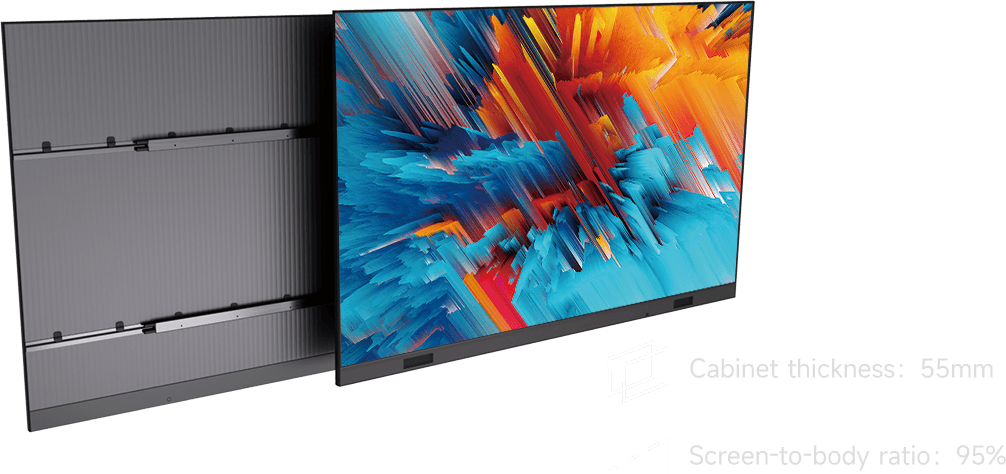

Ultra-Thin & Elegant Design

Featuring a profile aluminium structure and a 55mm ultra-thin cabinet, the SE-B Series combines durability with a sleek appearance.
Available in 130", 147", and 158" sizes to suit various space requirements.

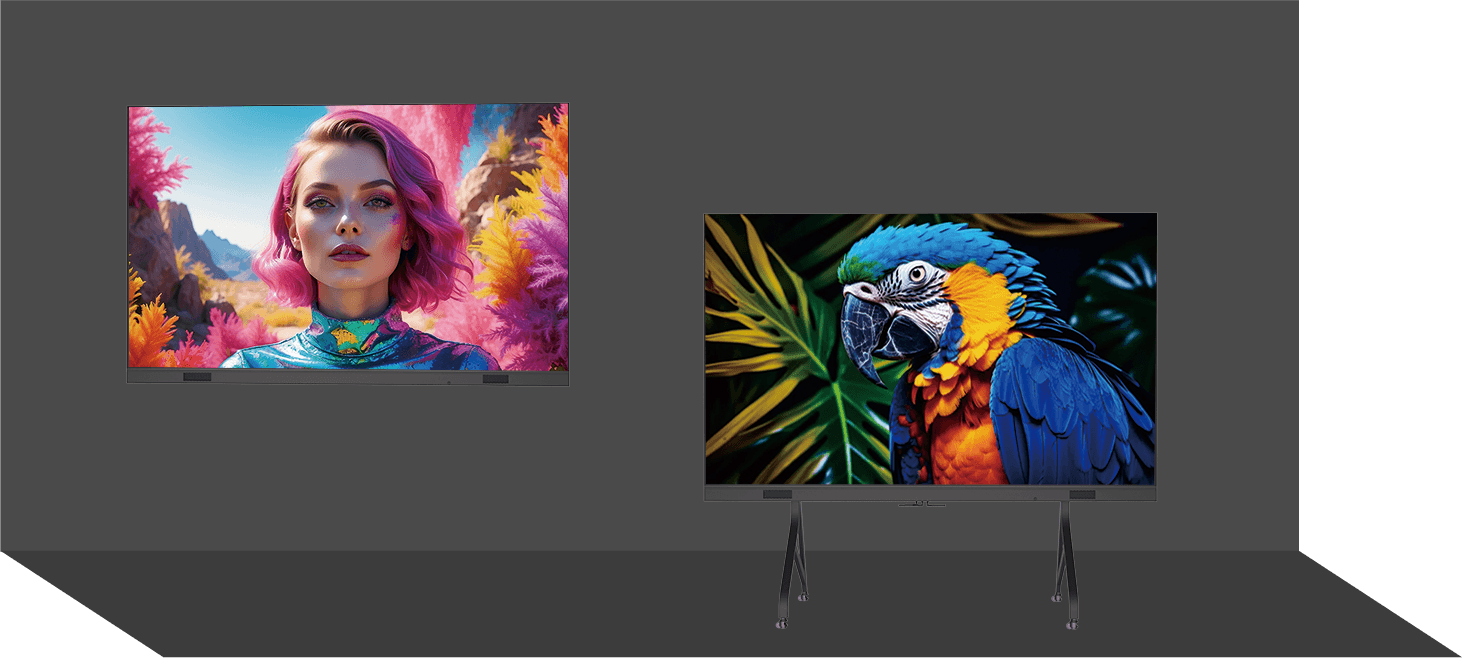

Flexible Installation & Easy Maintenance

Designed for versatility, the system supports both wall-mounted and mobile stand installations. Full front access allows convenient installation and servicing,
while hot-swappable modules ensure uninterrupted display operation during maintenance.

SE-C Series (SMD)

110" · 130" · 165" · 220"

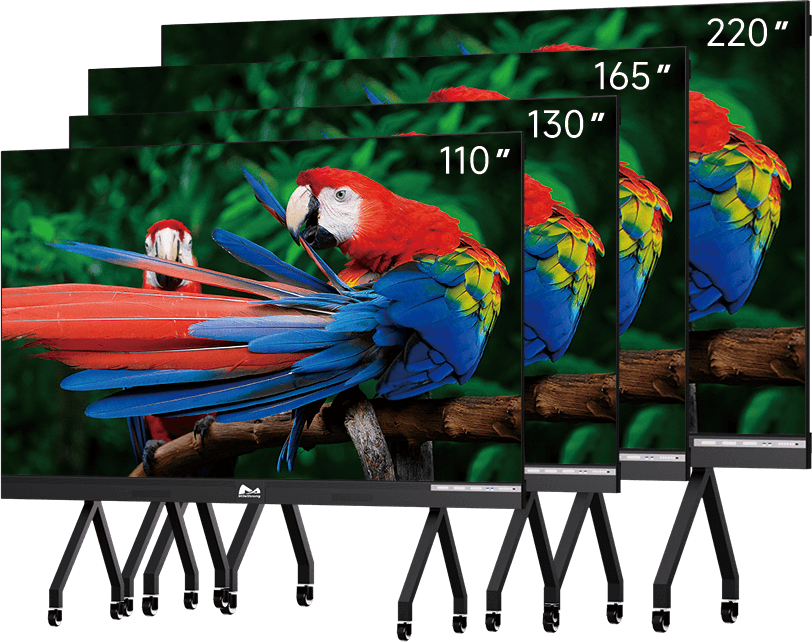

Standard Sizes, Flexible Choice

Available in 110", 130", 165", and 220" display sizes, the SE-C Series features a 16:9 standard aspect ratio, delivering instant standard FHD visuals with seamless large-screen presentation.

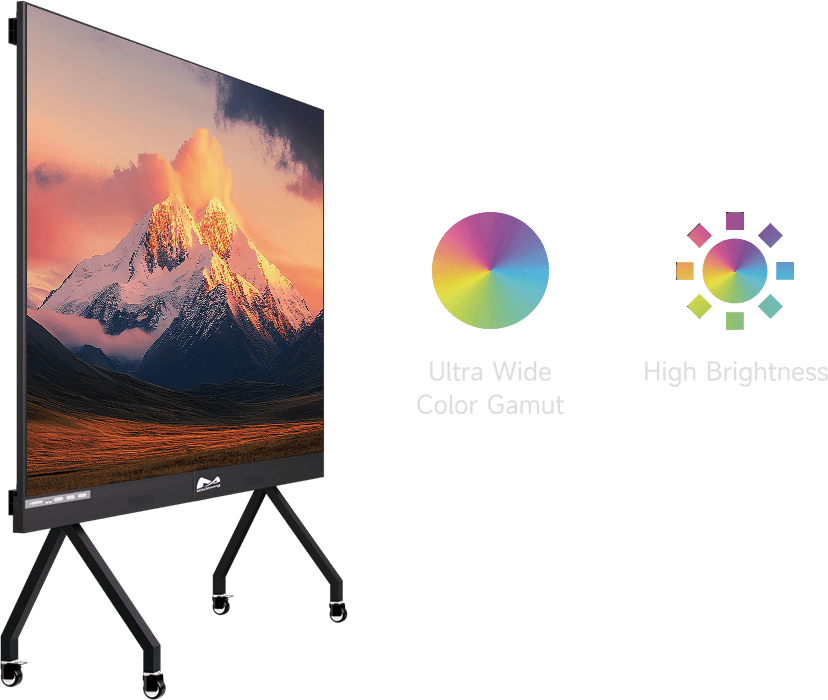

Brilliant Clarity, Every Detail Revealed

Equipped with fine-pitch LED panels and self-illuminating SMD LEDs, the display reaches up to 800 nits brightness.
With an ultra-wide color gamut, it faithfully reproduces micro-details and presents vivid, true-to-life colors.

Powerful System Performance

Powered by an octa-core processor and high-performance GPU, the system supports both Windows and Android platforms.
Seamless switching and easy application installation ensure smooth and efficient operation.

All-in-One Integration

Integrated high-quality speakers and a comprehensive range of input and output interfaces
allow effortless connection to external devices such as cameras, microphones, and other multimedia equipment.

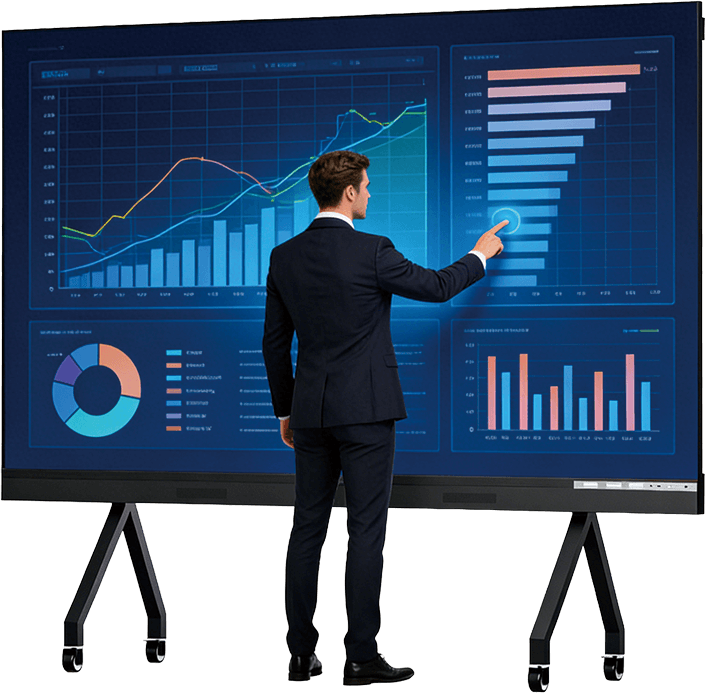

Infrared Touch, Instant Interaction

High-precision infrared touch technology delivers sensitive and accurate interaction, enabling smooth writing and intuitive operation for efficient meetings and collaborative sessions.

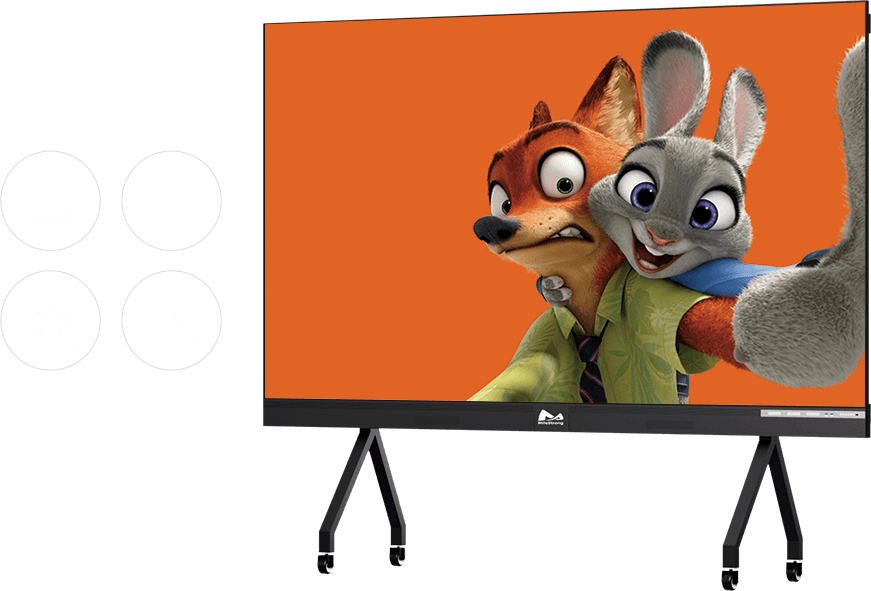

Four Display Modes

Four preset scene modes — Standard, Soft, Cinema, and Video — optimize display performance for different usage scenarios, ensuring the best visual experience at all times.

Multi-Platform Wireless Sharing

Supporting wireless screen sharing across Windows, macOS, iOS, and Android platforms,
the system allows up to four users to share their screens simultaneously, enhancing collaboration efficiency.

Front Maintenance & Easy Installation

The front maintenance design with modular assembly enables quick installation and convenient servicing.
The system supports both wall mounting and mobile stand installation to meet diverse application requirements.

Diverse Software Ecosystem

Pre-installed with conference whiteboard, video conferencing, and multimedia applications, the SE-C Series supports remote meetings,
document presentations, and video playback with comprehensive functionality.

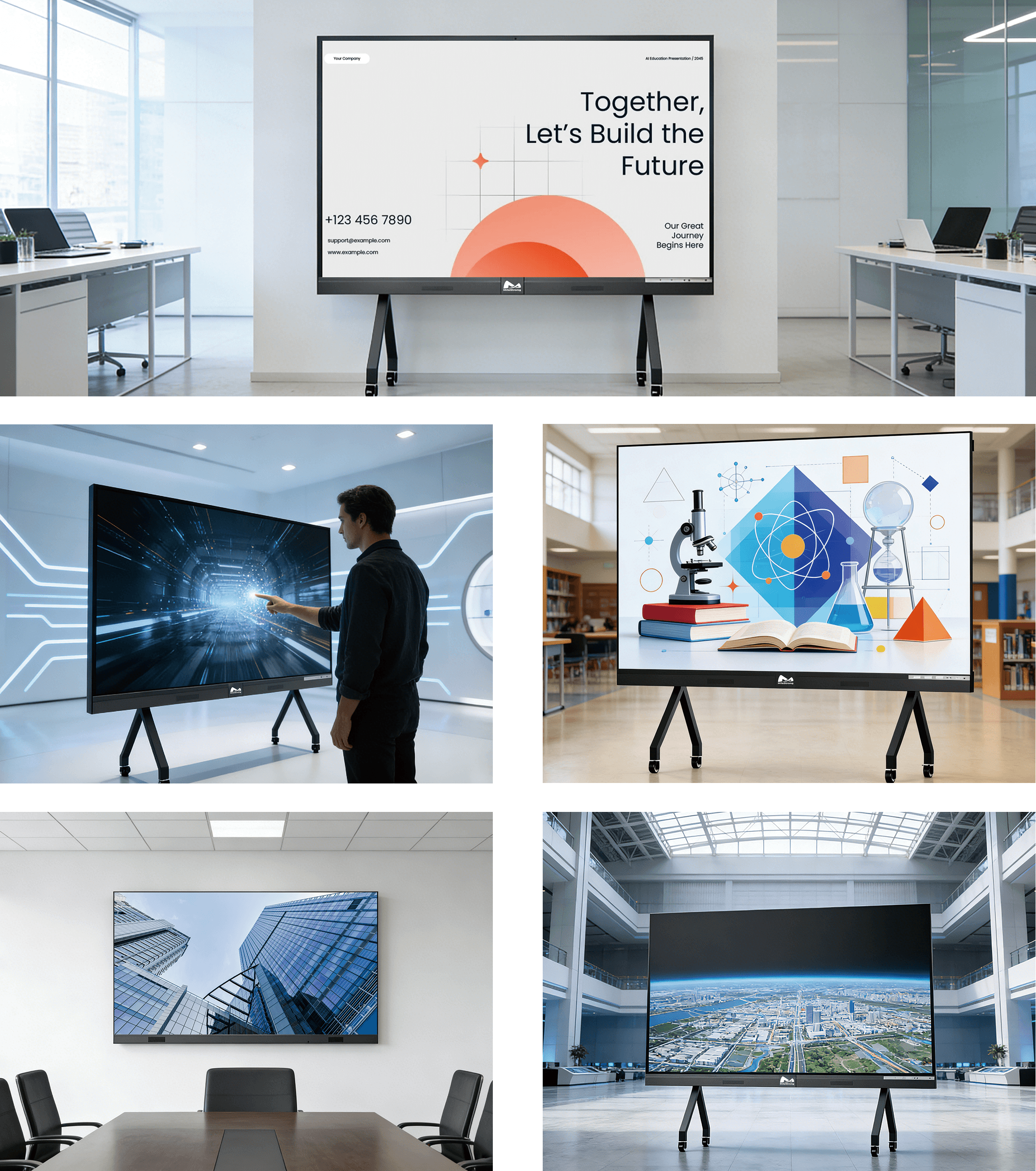

Application Scenarios

Ideal for conference rooms, corporate meeting spaces, educational institutions, training centers, exhibition halls, and command centers,
the SE Series provides reliable performance and immersive large-screen collaboration experiences.

Parameters

Download
Comparison of Basic Specifications
Product Series Panel Technology Display Size Resolution Touch Control OPS Android Memory Screen Mirroring Installation Method
SE-A Series COB 108" FHD Optional Optional 11.0
13.0		 8+128G √ Mobile Stand / Wall Mounting
135"
163"
216" 4K UHD None Wall Mounting
SE-B Series COB 130" 1,872×1,040 None None 13 4+64G √ Mobile Stand / Wall Mounting
147" 1,720×1,032
158" 1,892×1,032
SE-C Series SMD 110" FHD Optional Optional 11.0
13.0		 8+128G √ Mobile Stand / Wall Mounting
130"
165"
220" None Wall Mounting
SE-A Series (COB)
Items SE-A108 SE-A135 SE-A163 SE-A216
Display Size 108'' 135'' 163'' 216''
Resolution (W×H) 1,920×1,080 1,920×1,080 3,840×2,160 1,920×1,080 3,840×2,160 3,840×2,160
Aspect Ratio 16:9
Touch Control Infrared touch (optional) No
Overal Dimensions (mm) 2,425×1,487×45
Bottom Thickness 59.5		 3,025×1,825×45
Bottom Thickness 59.5		 3,625×2,162×45
Bottom Thickness 59.5		 4,825×2,837×45
Bottom Thickness 59.5
Actual Screen Dimensions (mm) 2,400×1,350 3,000×1,687.5 3,600×2,025 4,800×2,700
Installation Method Mobile Stand / Wall Mounting Wall Mounting
Refresh Rate (Hz) 3,840
Brightness (nits) 600
Grayscale (bit) 22
Contrast Ratio 10,000:1
Viewing Angle (H/V) 160°/160°
Maintenance Front
Operating System Android 11.0, 8+128G
Input Voltage AC100V–AC240V, 50/60Hz
Peak Power Consumption (W/m²) 1,200 1,850 2,580 2,450 2,750 4,600
Average Power Consumption (W/m²) 400 620 860 820 920 1,550
Operating Environment -10 ℃ ~ 50 ℃, 10% ~ 80% RH
Storage Environment -20 ℃ ~ 60 ℃, 10% ~ 90% RH
SE-B Series (COB)
Items SE-B130 SE-B147 SE-B158
Display Size 130'' 147'' 158''
Resolution (W×H) 1,872×1,040 1,720×1,032 1,892×1,032
Overal Dimensions (mm) 2,896×1,718×55 3,126×2,038×55 3,536×2,038×55
Actual Screen Dimensions (mm) 2,880×1,600 3,200×1,920 3,520×1,920
Installation Method Mobile Stand / Wall Mounting
Refresh Rate (Hz) 3,840
Brightness (nits) 600
Grayscale (bit) 14
Contrast Ratio 10,000:1
Viewing Angle (H/V) 170°/170°
Maintenance Front
Operating System Android 13.0, 4+64G
Input Voltage AC100V–AC240V, 50/60Hz
Peak Power Consumption (W/m²) 2,100 2,800 3,060
Average Power Consumption (W/m²) 700 935 1,020
Operating Environment -10 ℃ ~ 50 ℃, 10% ~ 80% RH
Storage Environment -20 ℃ ~ 60 ℃, 10% ~ 90% RH
SE-C Series (SMD)
Items SE-C110 SE-C130 SE-C165 SE-C220
Display Size 110'' 130'' 165'' 220''
Resolution (W×H) 1,920×1,080
Aspect Ratio 16:9
Touch Control No Infrared touch No Infrared touch No Infrared touch No
Overal Dimensions (mm) 2,434×1,493.5×39
Bottom Thickness 47		 2,447×1,500×45
Bottom Thickness 47		 2,890×1,750×39
Bottom Thickness 47		 2,903×1,756.5×45
Bottom Thickness 47		 3,646×2,175.2×39
Bottom Thickness 47		 3,659×2,182×45
Bottom Thickness 47		 4,858×2,857×39
Bottom Thickness 47
Actual Screen Dimensions (mm) 2,424×1,363.5 2,880×1,620 3,636×2,045.25 4,848×2,727
Installation Method Mobile Stand / Wall Mounting Wall Mounting
Refresh Rate (Hz) 3,840
Brightness (nits) 800
Grayscale (bit) 22
Contrast Ratio 4,000:1
Viewing Angle (H/V) 160°/160°
Maintenance Front
Operating System Android 11.0, 8+128G
Input Voltage AC100V–AC240V, 50/60Hz
Peak Power Consumption (W/m²) 2,050 2,900 3,800 6,700
Average Power Consumption (W/m²) 690 970 1,270 2,240
Operating Environment -10 ℃ ~ 50 ℃, 10% ~ 80% RH
Storage Environment -20 ℃ ~ 60 ℃, 10% ~ 90% RH
