MT Series

Pixel Pitch (mm) : 0.93/1.25/1.56/1.87/2.5
Cabinet Size (mm): 600*337.5

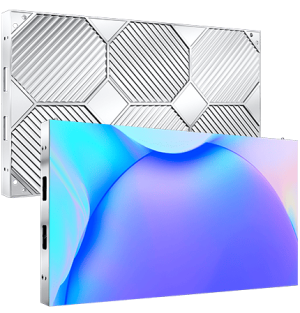

mt-cabinet

Sleek And Durable

This fine pixel pitch LED displays feature a cabinet size of 600*337.5 mm, crafted from high-quality die-casting aluminum.
The modular design ensures easy assembly and maintenance, while the elegant cabinet body adds a touch of sophistication to any setting.

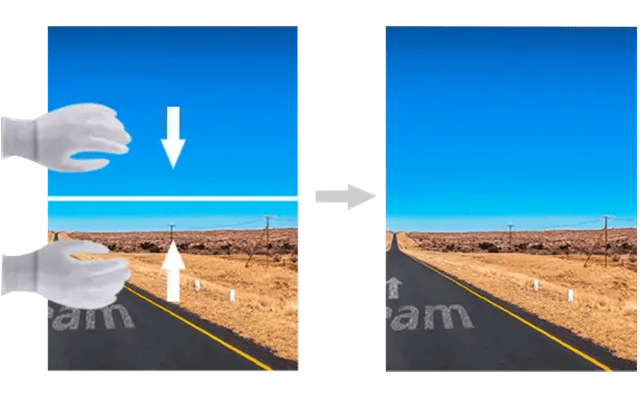

Seamless Splicing

The innovative floating connection technology between modules and cabinets effectively eliminates splicing errors, ensuring a perfectly seamless display.
With fine-tuning support, assembling your LED screen becomes easier than ever, guaranteeing a flawless and cohesive visual experience.

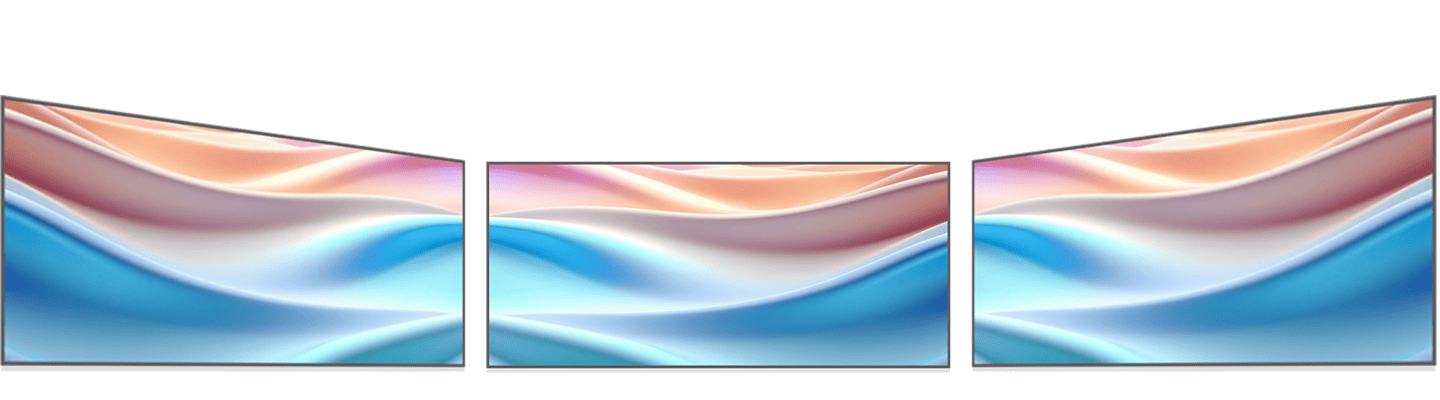

Ultra Large Viewing Angle

The LED display screens offer an ultra large viewing angle with a LED light emitting angle reaching 160°.
They can be seamlessly spliced in any size and direction, accommodating multiple video source specifications. Easily achieve FHD, 4K large screens, and stunning LED displays.

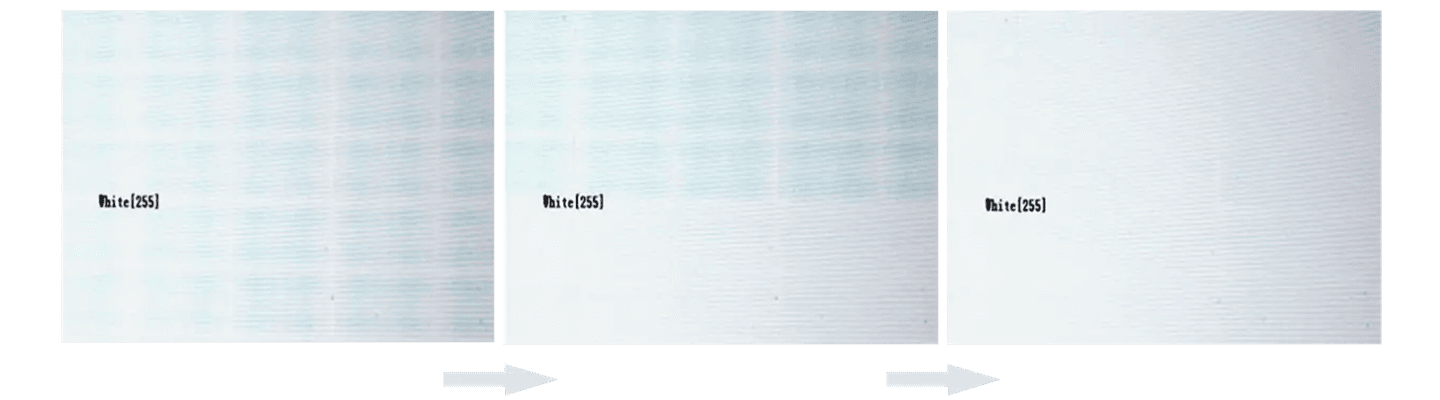

Thermal Effects Calibration

The advanced Thermal Effects Calibration technology provides the perfect solution to the phenomenon of bluing that occurs after temperature rises.
This innovative feature ensures consistent color accuracy and performance, maintaining the integrity of your display's visual quality even under varying thermal conditions.

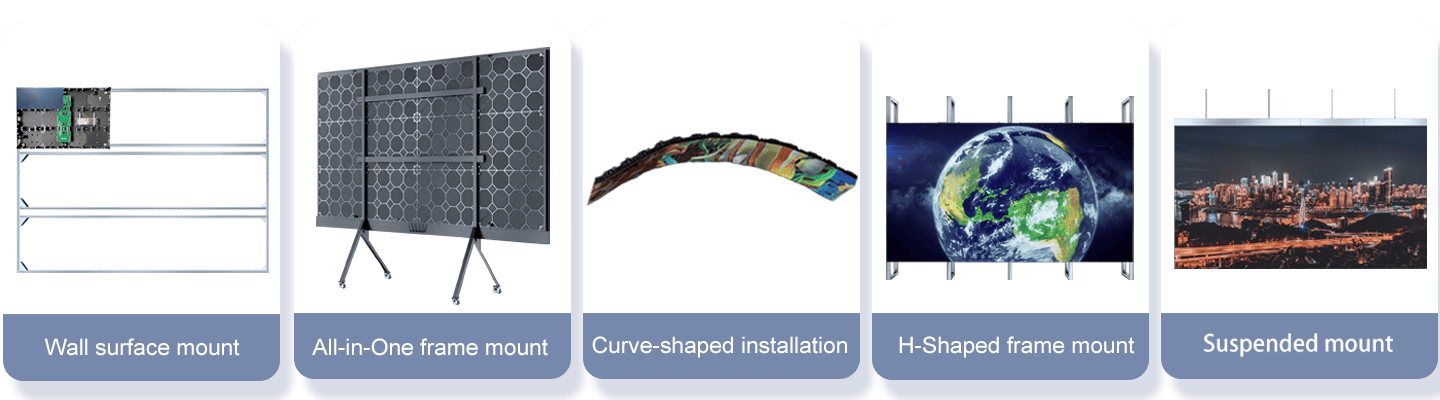

Versatile Installation Solutions

Ensure a seamless setup of your LED display with our versatile installation options.
Choose from wall surface mounts for a sleek, space-saving solution, or opt for all-in-one frame mounts for an integrated look.
For unique design needs, we offer curve-shaped installations and H-shaped frame mounts, providing flexibility and style.
Additionally, our hanging installation option is perfect for maximizing visibility in open spaces.

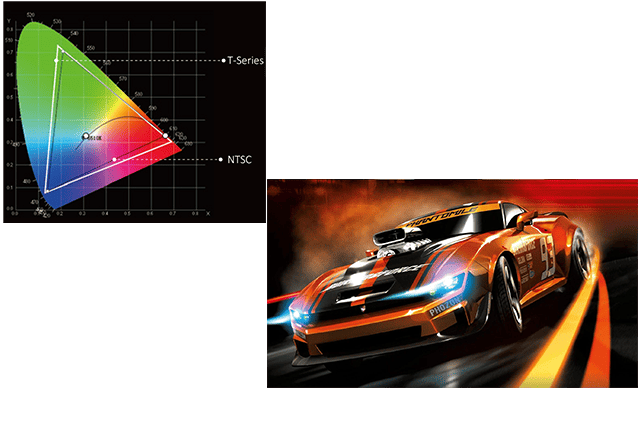

Stunning HDR Visuals

In comparison with SDR, HDR shows wider color range between black and white, which means richer colors and higher contrast ratios.
With High Dynamic Range (HDR) technology, our LED displays surpass the limitations of Standard Dynamic Range (SDR) by offering a significantly wider color range and higher contrast ratios.
This advancement results in richer, more vibrant colors and enhanced details, from the deepest blacks to the brightest whites.

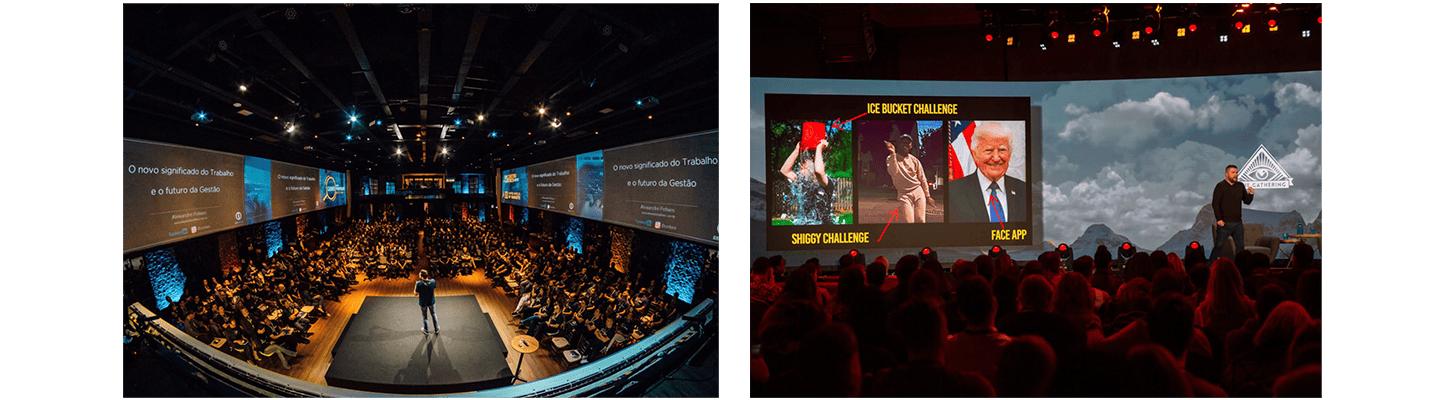

Application Scenarios

The LED screen is perfect for a wide range of indoor settings, enhancing visual experiences and operational efficiency. Whether it's for enterprise commerce, studios,
command and control rooms, retail spaces, educational institutions, or hospitality venues, the displays provide unparalleled clarity and flexibility.

Parameters

Download
Item MT 0.93 Common-cathode MT 1.25 Common-cathode MT 1.25 MT 1.56 MT 1.87 MT 2.5
Pixel Pitch (mm) 0.93 1.25 1.25 1.56 1.87 2.5
Module Size (mm) 150x168.75 150x168.75 150x168.75 150x168.75 150x168.75 150x168.75
Module Resolution (WxH) 168x180 120x135 120x135 96x108 80x90 60x135
Scanning Mode 1/60 1/45 1/45 1/48 1/30 1/30
Cabinet Flatness (mm) ≤0.10 ≤0.10 ≤0.10 ≤0.10 ≤0.10 ≤0.10
LED Configuration 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
LED Type Common-cathode 1010 (4in1) SMD 1010 Common-cathode SMD 1010 SMD 1212 SMD 1515 SMD 1515
Service Way Front Service Front Service Front Service Front Service Front Service Front Service
Installation Way Front/Back installation Front/Back installation Front/Back installation Front/Back installation Front/Back installation Front/Back installation
Cabinet Size (mm) 600x337.5x39 600x337.5x39 600x337.5x39 600x337.5x39 600x337.5x39 600x337.5x39
Cabinet Resolution (WxH) 640x360 480x270 480x270 384x216 320x180 240x135
Physical Density (pixle/㎡) 1,137,778 640,000 640,000 409,600 284,444 160,000
Brightness (cd/㎡) 500~900 4500~5000 500~900 500~900 500~900 500~800
Max. Power Consumption 550W 550W 650W 650W 650W 500W
Avg. Power Consumption 180W 180W 200W 200W 200W 170W
Cabinet Material Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum
Contrast Ratio ≥8000:1 ≥8000:1 ≥8000:1 ≥8000:1 ≥8000:1 ≥8000:1
Gray Scale 14bit (software 16bit) 14bit (software 16bit) 14bit (software 16bit) 14bit (software 16bit) 14bit (software 16bit) 14bit (software 16bit)
Refresh Rate (Hz) ≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
Refresh Frame Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Horizontal View Angle ≥140° ≥140° ≥140° ≥140° ≥140° ≥140°
Vertical View Angle ≥120° ≥120° ≥120° ≥120° ≥120° ≥120°
Best Viewing Distance 1.3m 1.3m 1.3m 1m 1.3m 1.3m
Module Supply Voltage DC 2.8+3.8V 2.8+3.8V 4.2V 4.2V 4.2V 4.2V
Module Max Current DC 1.5A+2.8A 1.5A+2.5A 4A 4A 4A 6.8A
Input Voltage (V) 110-220V 110-220V 110-220V 110-220V 110-220V 110-220V
Working Temperature (°C) -20°C~45°C -20°C~45°C -20°C~45°C -20°C~45°C -20°C~45°C -20°C~45°C
Working Humidity (RH) 10%~95% 10%~95% 10%~95% 10%~95% 10%~95% 10%~95%
Lifespan (Hrs) ≥100,000 ≥100,000 ≥100,000 ≥100,000 ≥100,000 ≥100,000
Certification RoHS/FCC/CE RoHS/FCC/CE RoHS/FCC/CE RoHS/FCC/CE RoHS/FCC/CE RoHS/FCC/CE
