MSC Series
LED Poster Display

Pixel Pitch (mm) : 1.25 / 1.53 / 1.86 / 2.5 / 3
Versions: Non-Foldable / Two-Fold / Three-Fold / Outdoor

1

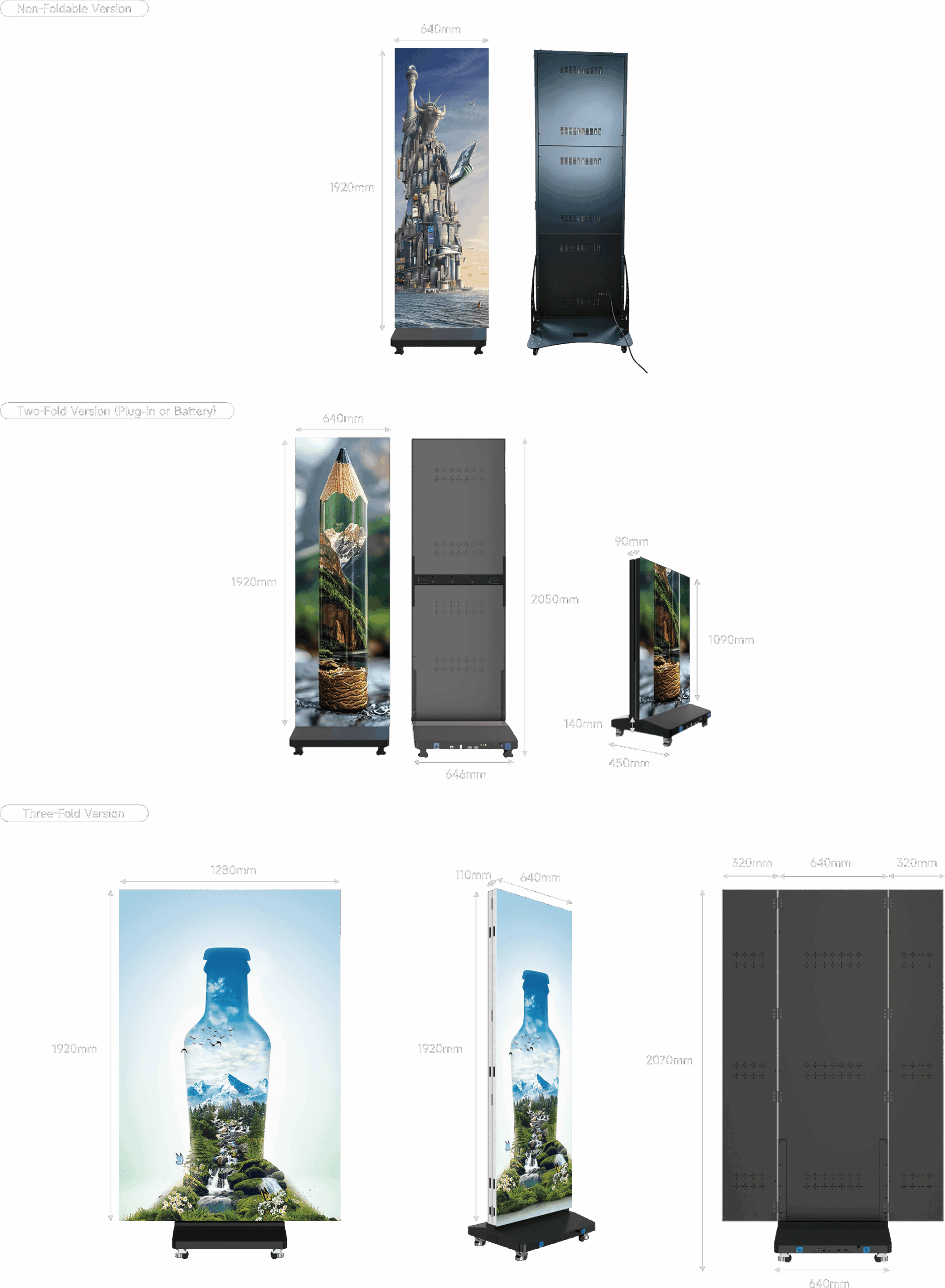

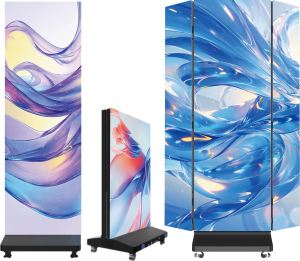

Versatile LED Poster Display

The MSC Series LED poster display is available in four models: the standard non-foldable version, the two-fold version, the three-fold version, and the outdoor version,
offering flexible choices for different display needs.

3

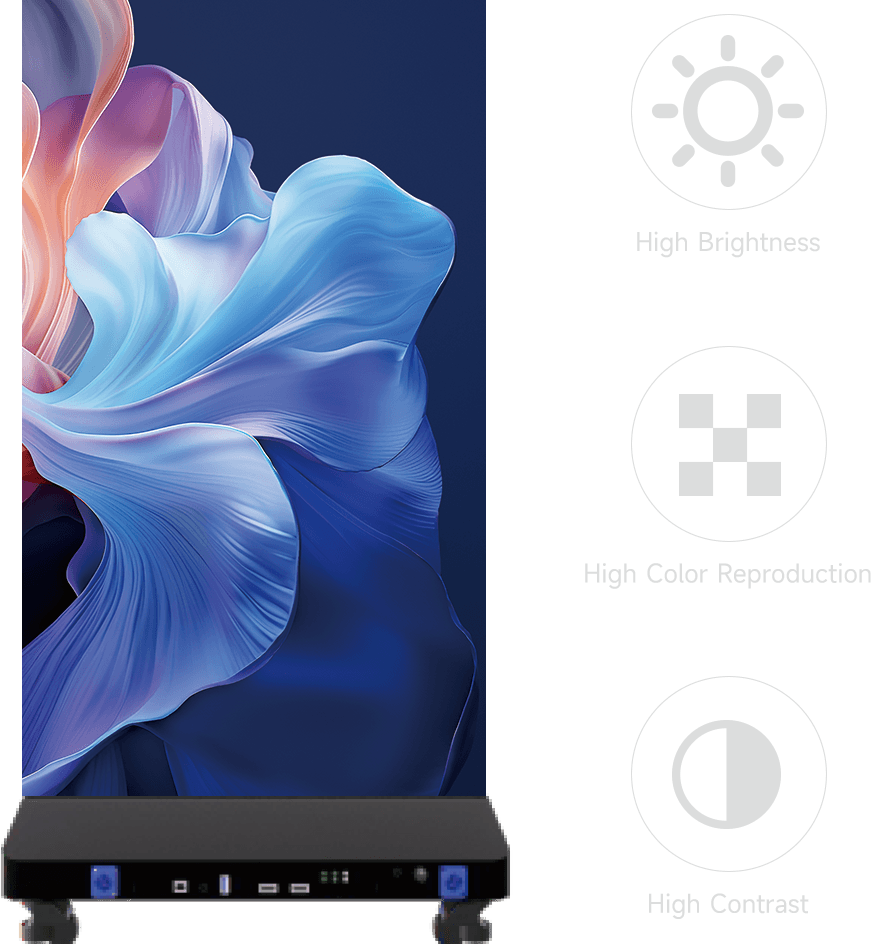

Stunning Visuals

Featuring high resolution, high brightness, excellent color reproduction, and high contrast, the MSC Series delivers crystal-clear and vibrant visuals.

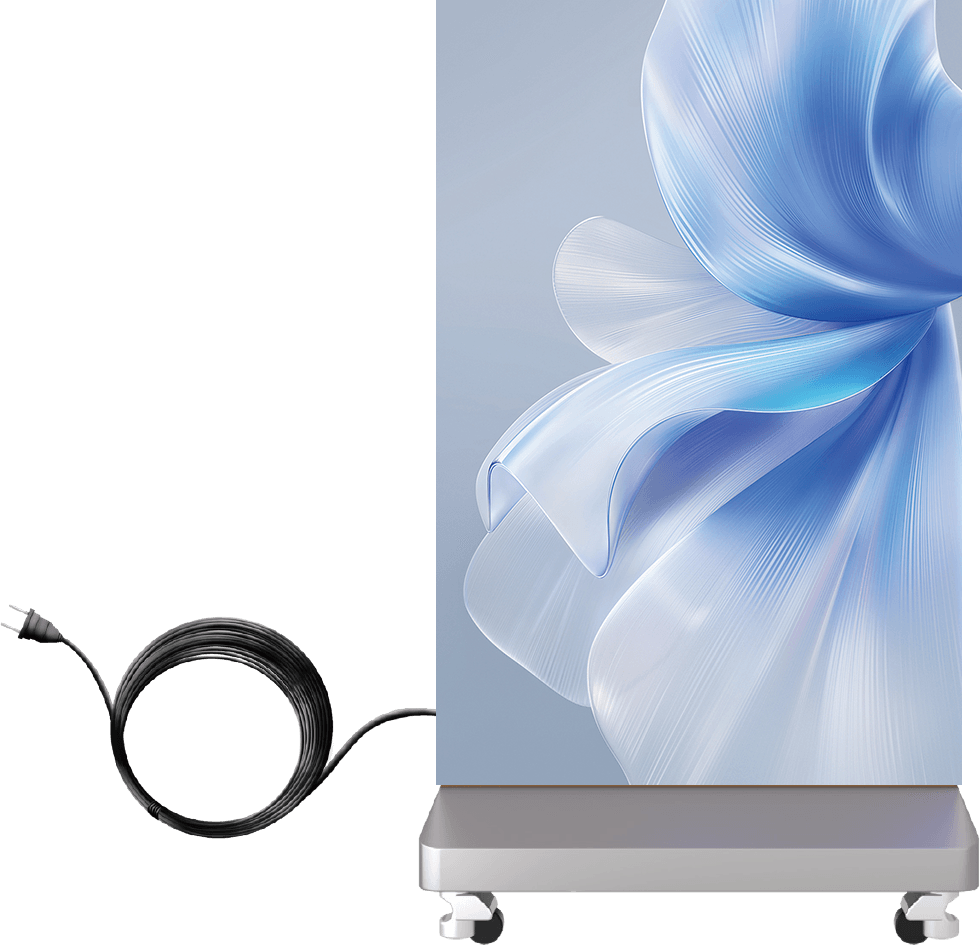

Plug and Play

No installation required — simply power on and it's ready to use. Shipped as a fully assembled product, the MSC Series ensures a hassle-free experience without the need for professional setup.

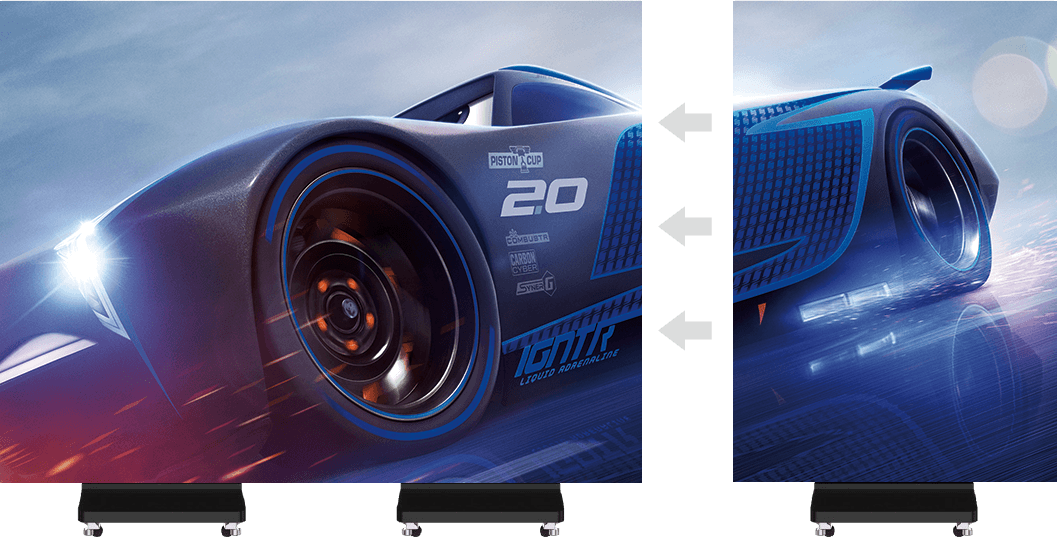

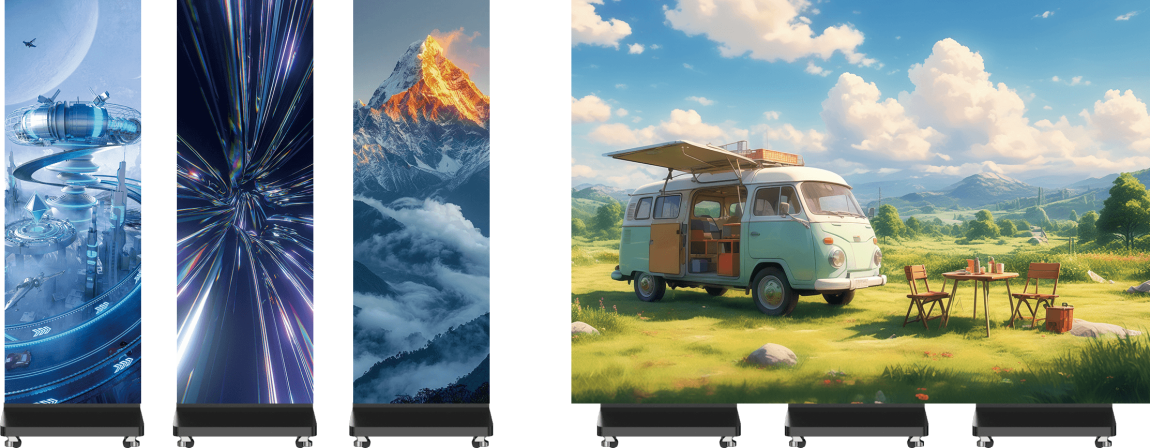

Seamless Splicing

Use it as a stand-alone display or seamlessly splice multiple units into a larger screen. This flexibility makes it suitable for a wide range of applications.

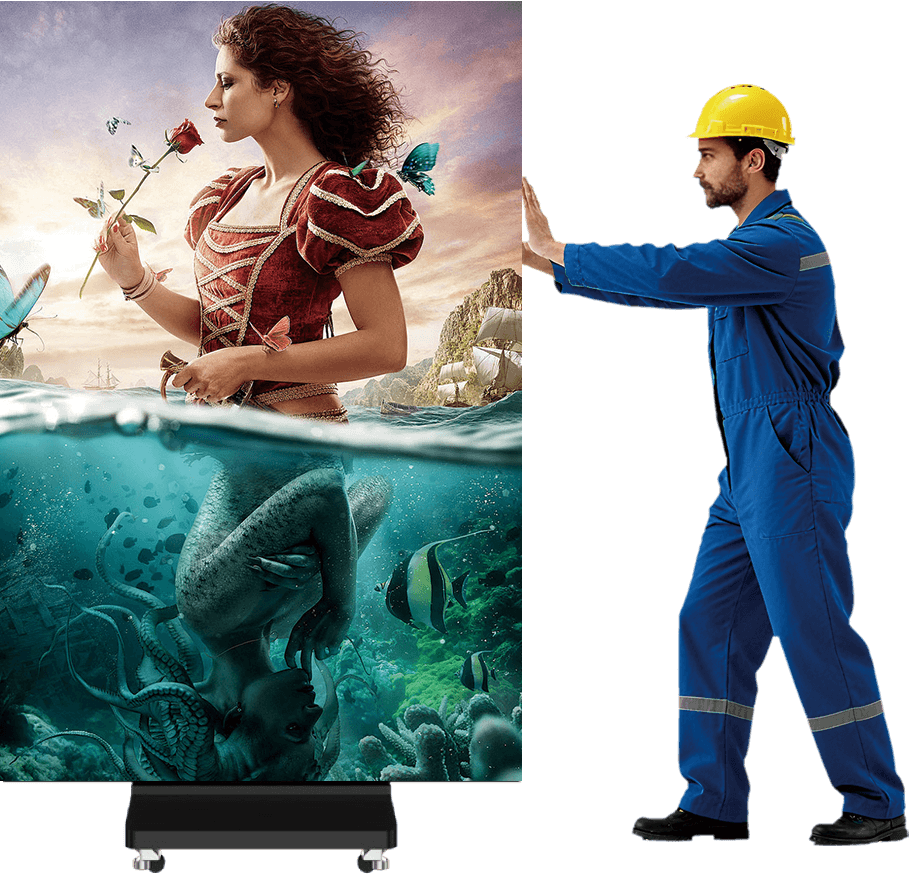

Universal Wheel Design

Equipped with four swivel wheels, the display can be easily moved and repositioned for flexible placement in different environments.

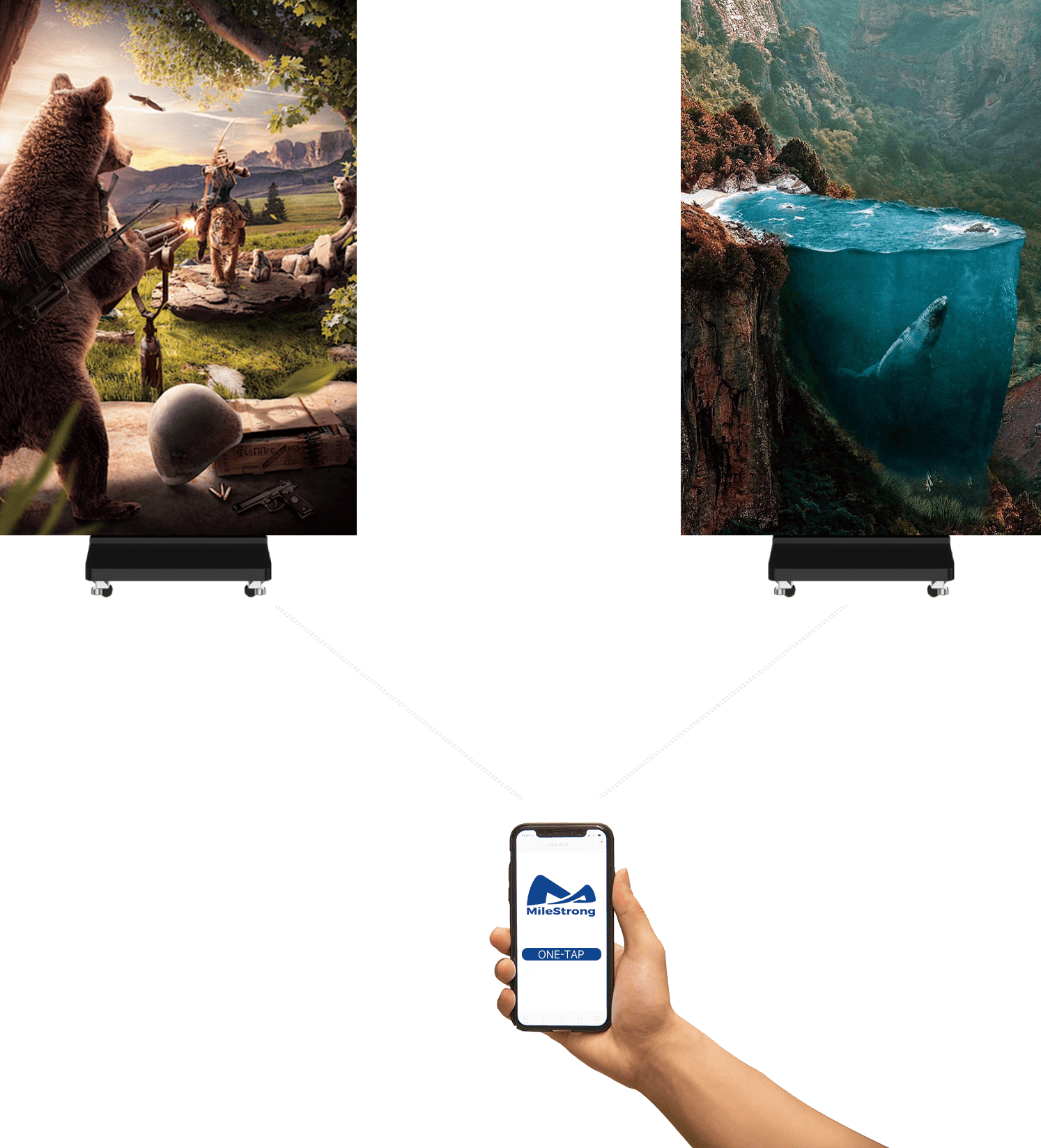

Effortless Control

With one-click release via a mobile app, users can quickly upload content from mobile devices. The user-friendly software ensures easy operation, even for non-technical users.

Synchronous & Asynchronous Modes

Supporting both synchronous and asynchronous display, the MSC Series can play offline content in a loop for advertising or synchronize with live broadcasts and meetings.

11

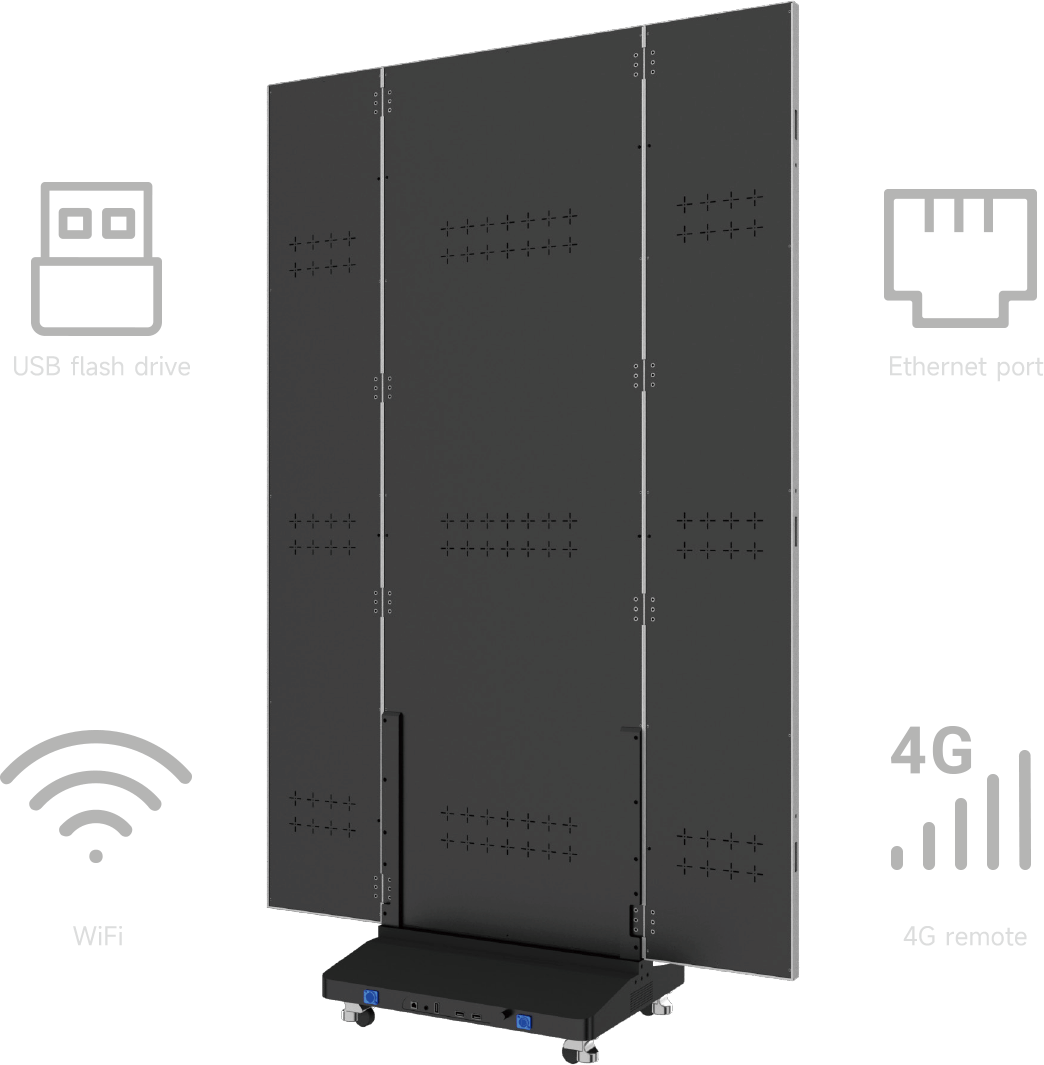

Multiple Transmission Options

Standard transmission methods include USB, WiFi, and Ethernet port. Optional HDMI and wireless 4G modules are also supported for expanded connectivity.

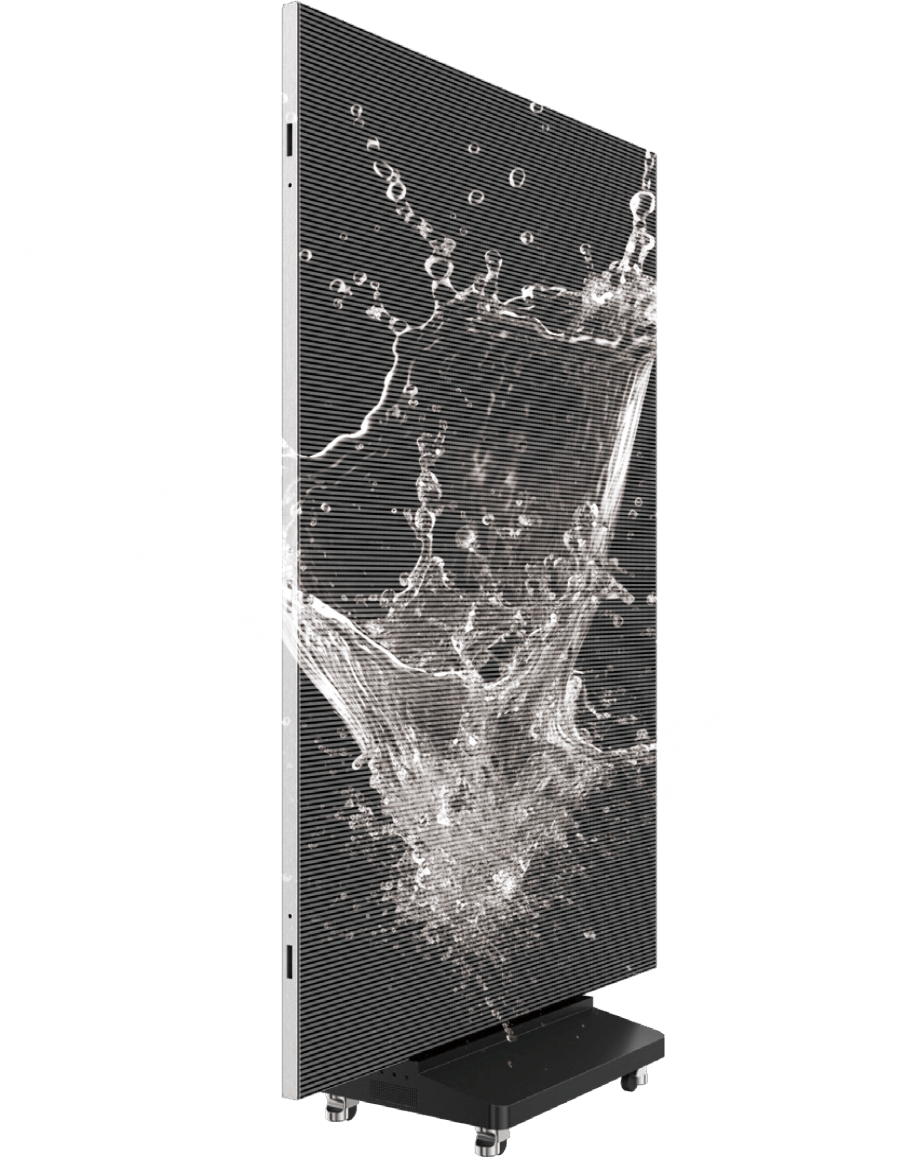

Floor-Tile-Grade GOB Technology

The non-foldable version offers optional GOB protection, while the foldable versions come with GOB by default.
This technology makes the surface splash-proof, scratch-resistant, impact-resistant, and moisture-proof, ensuring long-lasting durability.

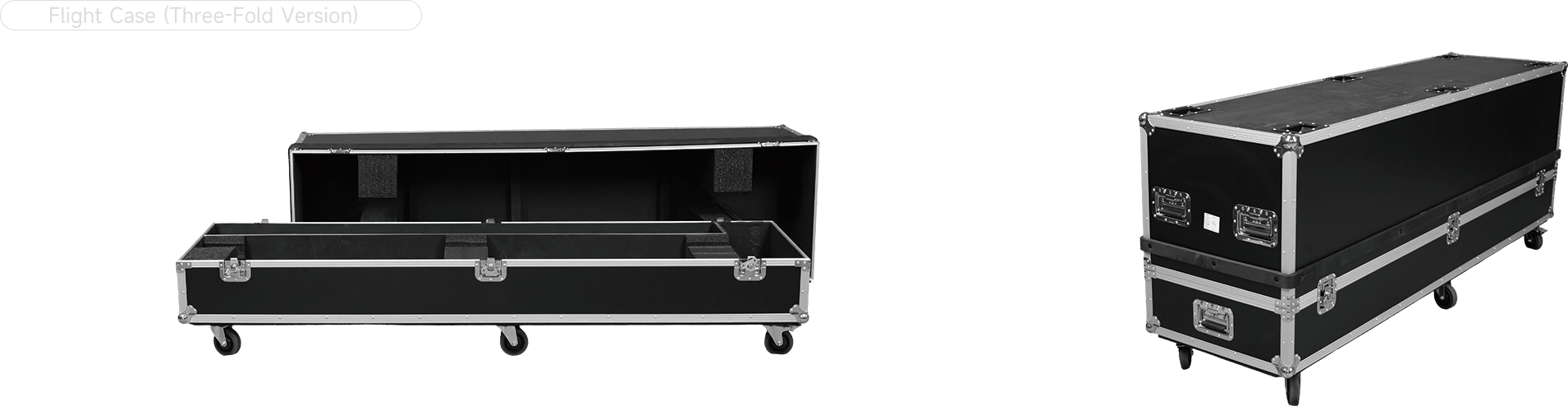

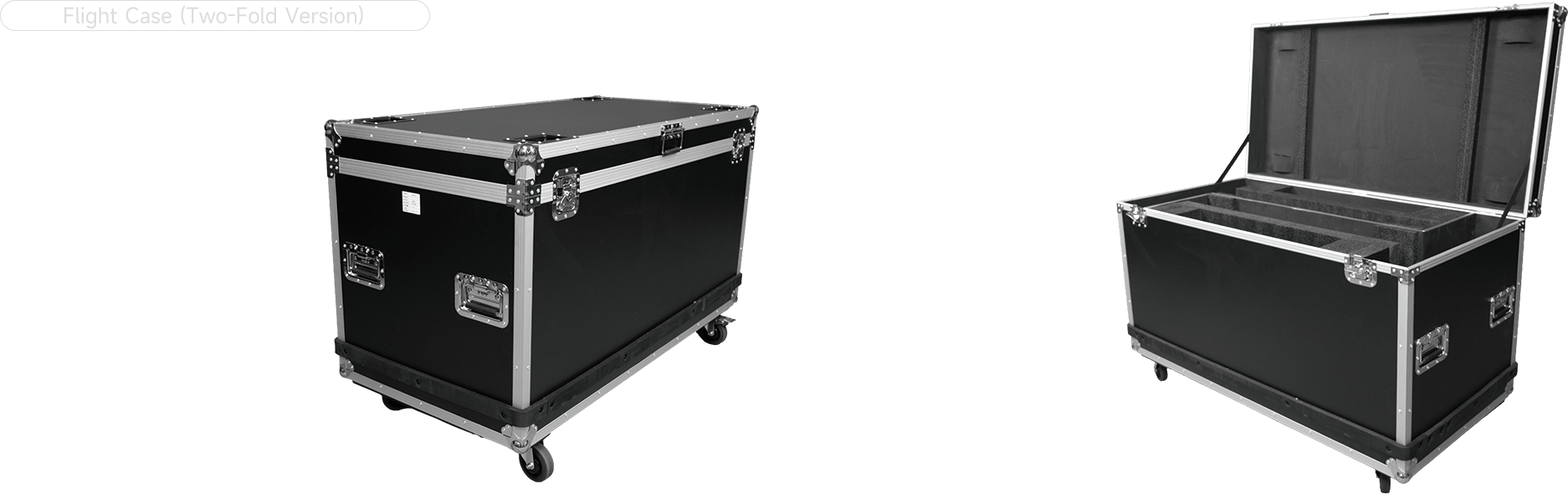

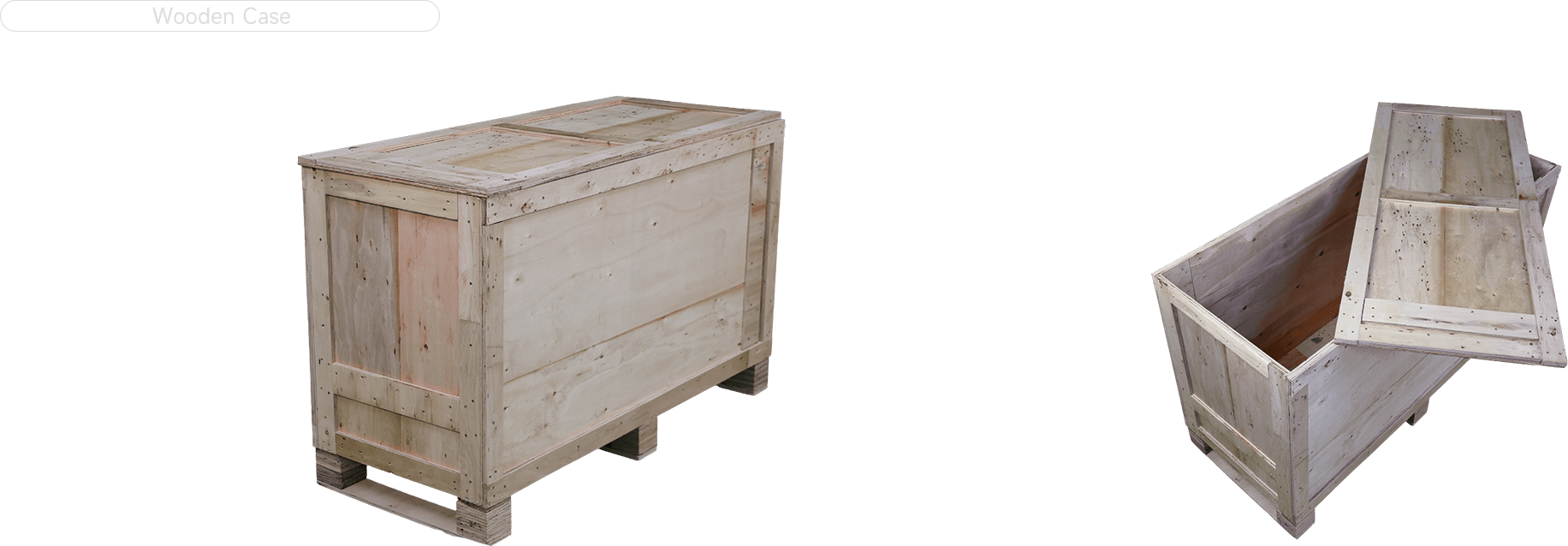

Flexible Packaging Options

To meet different transportation and project requirements, multiple packaging solutions are available, including wooden cases and flight cases.
Each option is designed to ensure safe handling, efficient loading, and reliable protection during transit, supporting both standard delivery and project-based applications.

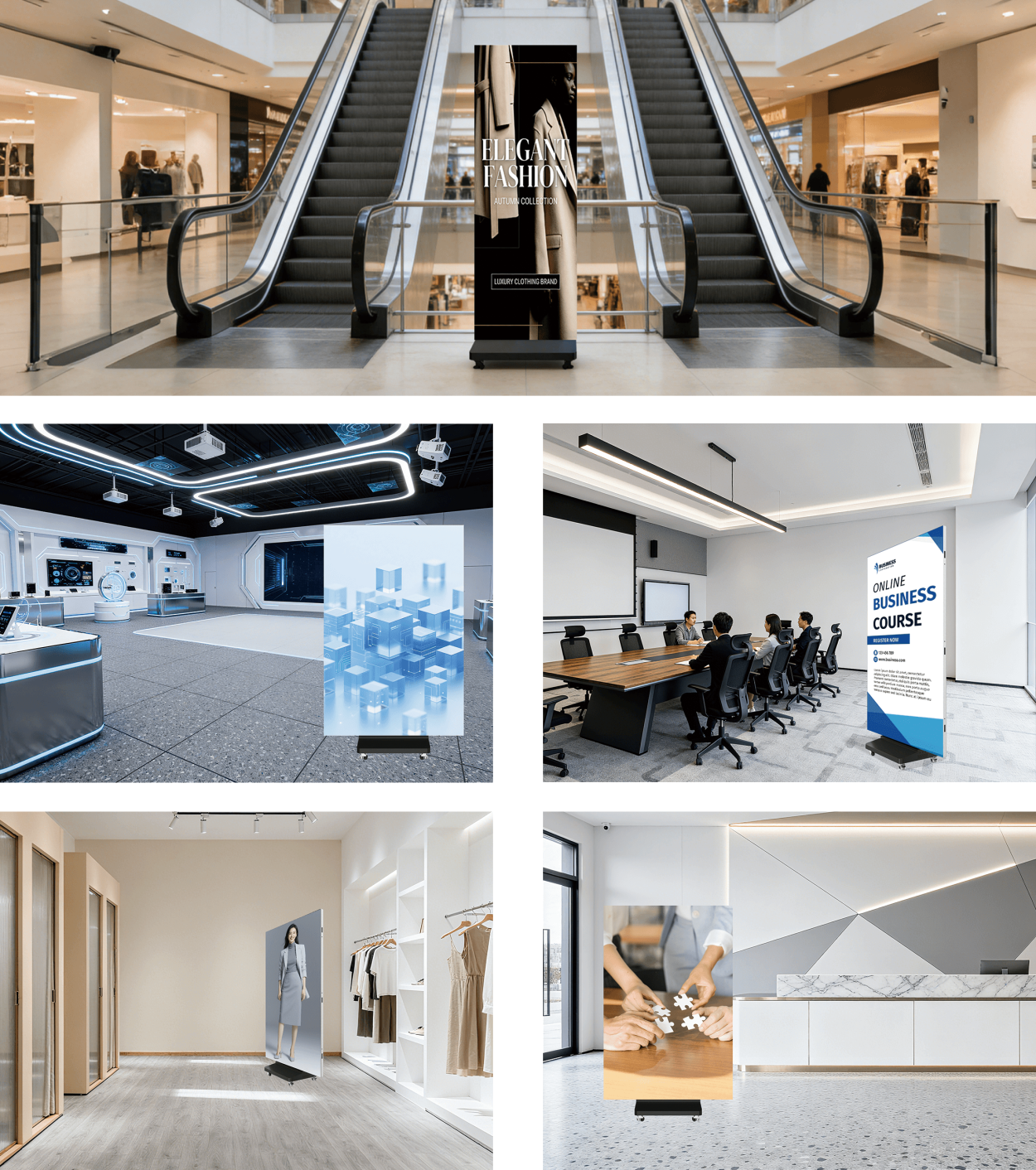

Application Scenarios

Ideal for shopping malls, retail stores, airports, hotels, exhibition halls, conferences, and various commercial advertising environments,
the MSC Series LED poster display brings versatile and impactful visual communication.

12

Parameters

Download
Non-Foldable Version
Items MP12 MP15 MP18 MP25
Pixel Pitch (mm) 1.25 1.53 1.86 2.5
Pixel Construction SMD 3-in-1 LED SMD 3-in-1 LED SMD 3-in-1 LED SMD 3-in-1 LED
Module Resolution (W×H) 256×128 204×104 172×86 128×64
Module Size (W×H) 320×160mm
Module Weight (kg) 0.55
Module Arrangement (W×H) 2×12
Product Resolution (W×H) 512×1,536 416×1,248 344×1,032 256×768
Display Size (W×H) 640×1,920mm
Flatness Tolerance 0.5mm
Brightness (nits) 650
Grayscale (bit) 14–16 (adjustable)
Color Temperature (K) 3,200–9,000 (adjustable)
Viewing Angle (H/V) 160°/160°
Contrast Ratio 8,000:1
Input Voltage AC110V–AC240V
Peak Power Consumption (W/PC) 1,000 680 680 680
Average Power Consumption (W/PC) 334 230 230 230
Control System Synchronous / Asynchronous
Communication Method APP / USB drive / Ethernet port / 4G remote
Interface JS485×1, WiFi ×1, USB×1, HDMI×2
Built-in Speaker 50×12mm×2PCS
Audio 3.5 Audio Interface / Supports External Amplifier
Driving Method Constant current
Frame Rate (Hz) 60
Refresh Rate (Hz) ≥3,840
Typical Lifespan Values (h) 50,000
Operating Environment -40 ℃ ~ 50 ℃, 10% ~ 80% RH, no condensing
Storage Environment -50 ℃ ~ 50 ℃, 10% ~ 85% RH, no condensing
Two-Fold Version
Items 2F125 2F153 2F186 2F25
Pixel Pitch (mm) 1.25 1.53 1.86 2.5
Pixel Construction SMD 3-in-1 LED SMD 3-in-1 LED SMD 3-in-1 LED SMD 3-in-1 LED
Module Resolution (W×H) 256×128 204×104 172×86 128×64
Module Size (W×H) 320×160mm
Protective Technology GOB
Module Weight (kg) 0.55
Module Arrangement (W×H) 2×12
Product Resolution (W×H) 512×1,536 416×1,248 344×1,032 256×768
Display Size (W×H) 640×1,920mm
Product Size (W×H) 646×2,050mm
Product Weight (kg) 43
Flatness Tolerance 0.5mm
Brightness (nits) 650
Grayscale (bit) 14–16 (adjustable)
Color Temperature (K) 3,200–9,000 (adjustable)
Viewing Angle (H/V) 160°/160°
Contrast Ratio 8,000:1
Input Voltage AC110V–AC240V
Peak Power Consumption (W/PC) 650 550 450 430
Average Power Consumption (W/PC) 220 185 150 145
Control System Synchronous / Asynchronous
Communication Method APP / USB drive / Ethernet port / 4G remote
Interface JS485×1, WiFi ×1, USB×1, HDMI×2
Built-in Speaker 50×12mm×2PCS
Audio 3.5 Audio Interface / Supports External Amplifier
Driving Method Constant current
Frame Rate (Hz) 60
Refresh Rate (Hz) ≥3,840
Typical Lifespan Values (h) 50,000
Operating Environment -40 ℃ ~ 50 ℃, 10% ~ 80% RH, no condensing
Storage Environment -50 ℃ ~ 50 ℃, 10% ~ 85% RH, no condensing
Three-Fold Version
Items 3F125 3F153 3F186 3F25
Pixel Pitch (mm) 1.25 1.53 1.86 2.5
Pixel Construction SMD 3-in-1 LED SMD 3-in-1 LED SMD 3-in-1 LED SMD 3-in-1 LED
Module Resolution (W×H) 256×128 204×104 172×86 128×64
Module Size (W×H) 320×160mm
Protective Technology GOB
Module Weight (kg) 0.55
Module Arrangement (W×H) 4×12
Single-Sided Display Resolution (W×H) 1,024×1,536 832×1,248 688×1,032 512×768
Double-Sided Display Resolution (W×H) 512×1,536 416×1,248 344×1,032 256×768
Single-Sided Display Size (W×H) 1,280×1,920mm
Double-Sided Display Size (W×H) 640×1,920mm
Single-Sided Product Size (W×H) 1,280×2,070mm
Double-Sided Product Size (W×H) 640×2,070mm
Product Weight (kg) 78
Flatness Tolerance 0.5mm
Brightness (nits) 750 700 650 600
Grayscale (bit) 14–16 (adjustable)
Color Temperature (K) 3,200–9,000 (adjustable)
Viewing Angle (H/V) 160°/160°
Contrast Ratio 8,000:1
Input Voltage AC100V–AC240V
Peak Power Consumption (W/PC) 1,600 1,200 900 650
Average Power Consumption (W/PC) 565 400 300 220
Control System Synchronous / Asynchronous
Communication Method APP / USB drive / Ethernet port / 4G remote
Interface JS485×1, WiFi ×1, USB×1, HDMI×2
Built-in Speaker 50×12mm×2PCS
Audio 3.5 Audio Interface / Supports External Amplifier
Driving Method Constant current
Frame Rate (Hz) 60
Refresh Rate (Hz) ≥3,840
Typical Lifespan Values (h) 50,000
Operating Environment -40 ℃ ~ 50 ℃, 10% ~ 80% RH, no condensing
Storage Environment -50 ℃ ~ 50 ℃, 10% ~ 85% RH, no condensing

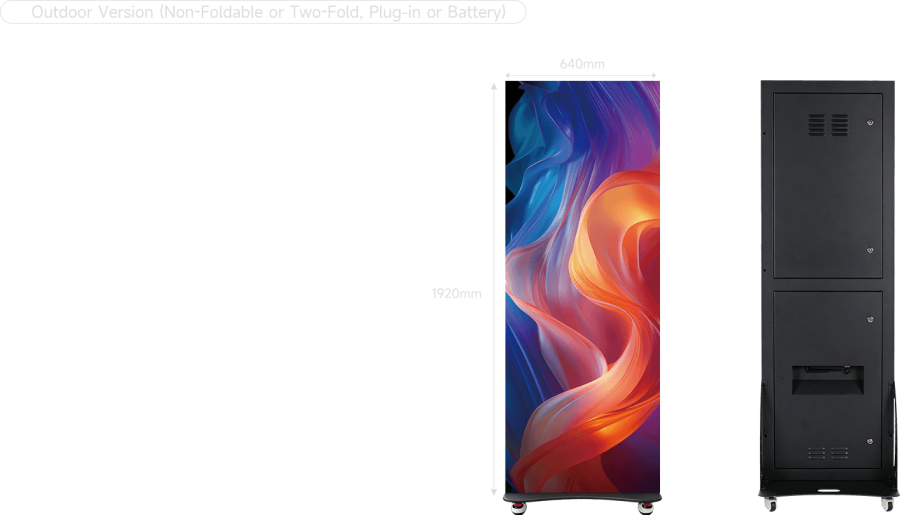

Outdoor Version
Items O25 O30
Pixel Pitch (mm) 2.5 3
Pixel Construction SMD 3-in-1 LED SMD 3-in-1 LED
Module Resolution (W×H) 128×64 104×52
Module Size (W×H) 320×160mm
Module Weight (kg) 0.6
Module Arrangement (W×H) 2×12
Product Resolution (W×H) 256×768 208×624
Display Size (W×H) 640×1,920
Product Size (W×H) 640×2000×450
Gross Weight (kg) 69
Flatness Tolerance 0.5mm
Brightness (nits) 4,500
Grayscale (bit) 14–16
Color Temperature (K) 3,200–9,000 (adjustable)
Viewing Angle (H/V) 160°/160°
Contrast Ratio 8,000:1
Input Voltage AC100V–AC240V
Contrast Ratio 8,000:1
Input Voltage AC100V–AC240V
Peak Power Consumption (W/PC) 1,100
Average Power Consumption (W/PC) 350
Control System Synchronous / Asynchronous
Communication Method APP / USB drive / Ethernet port / 4G remote
Interface JS485×1, WiFi ×1, USB×1, HDMI×2
Built-in Speaker 50×12mm×2PCS
Audio 3.5 Audio Interface / Supports External Amplifier
Driving Method Constant current
Frame Rate (Hz) 60
Refresh Rate (Hz) ≥3,840
Typical Lifespan Values (h) 50,000
Operating Environment -40 ℃ ~ 50 ℃, 10% ~ 80% RH, no condensing
Storage Environment -50 ℃ ~ 50 ℃, 10% ~ 85% RH, no condensing
Battery Type Lithium Iron Phosphate (LiFePO4)
Battery Capacity 200Ah
Output Voltage 12.8V-14.6V
Charging Voltage 110-240V AC
Endurance 8-10 hours
Charging Duration 4 hours
Packaging Specifications
Product Packaging Dimensions (mm) Weight (Package + Screen + Accessories, kg)
Indoor Non-Foldable Version, Wooden Case – Set 1 2,020×240×840 74
Indoor Non-Foldable Version, Wooden Case – Set 2 2,210×520×690 127
Indoor Non-Foldable Version, Flight Case – Set 1 2,200×530×860 85
Indoor Non-Foldable Version, Flight Case – Set 2 2,200×650×860 150
Indoor Two-Fold Version, Wooden Case – Set 1 1,150×510×830 75
Indoor Two-Fold Version, Wooden Case – Set 2 1,340×560×830 120
Indoor Two-Fold Version, Flight Case – Set 1 1,160×530×860 80
Indoor Two-Fold Version, Flight Case – Set 2 1,350×670×870 136
Indoor Three-Fold Version, Wooden Case – Set 1 2,120×550×810 140
Indoor Three-Fold Version, Wooden Case – Set 2 2,290×590×810 225
Indoor Three-Fold Version, Flight Case – Set 1 2,300×580×860 132
IndoorThree-Fold Version, Flight Case – Set 2 2,300×730×870 225
Outdoor Non-Foldable Version, Wooden Case – Set 1 2,230×640×830 125
Outdoor Non-Foldable Version, Wooden Case – Set 2 2,000×500×830 195
Outdoor Non-Foldable Version, Flight Case – Set 1 2,060×570×870 125
Outdoor Non-Foldable Version, Flight Case – Set 2 840×620×1,280 118
OutdoorTwo-Fold Version, Wooden Case – Set 1 1,120×560×830 96
Outdoor Two-Fold Version, Wooden Case – Set 2 1,350×580×830 180

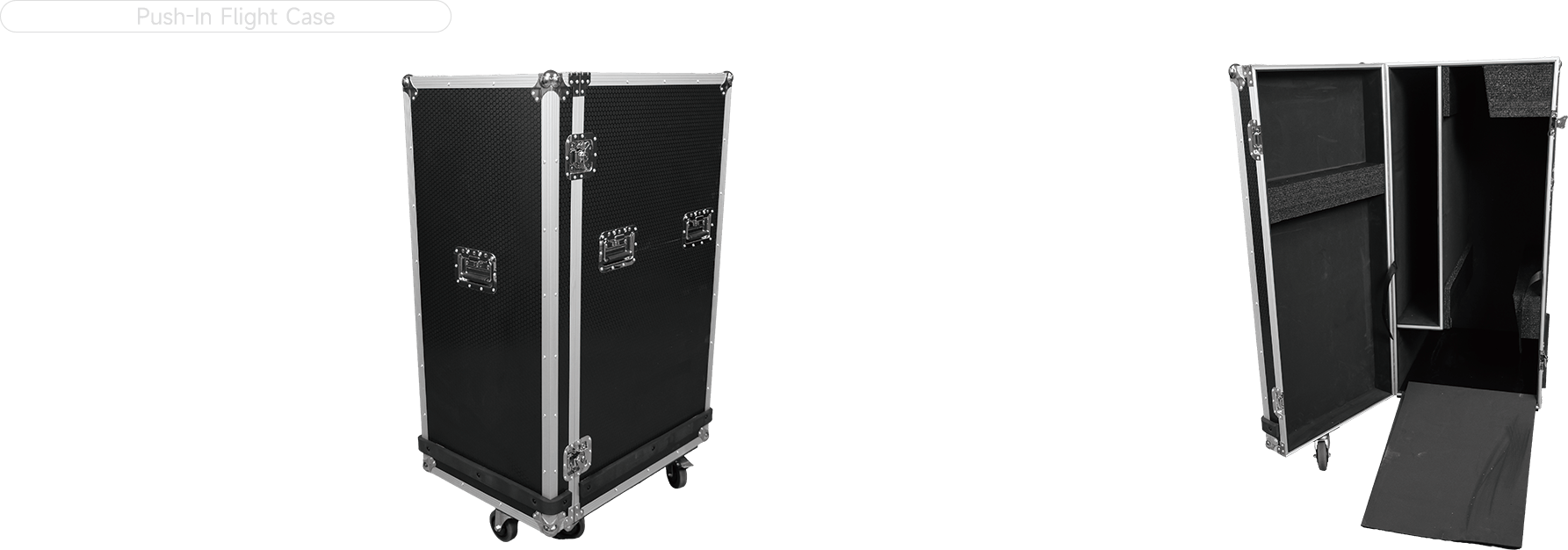

Push-In Flight Case – Set 1 590×830×1,320 90
*All specifications are subject to slight variations due to manufacturing tolerances.
