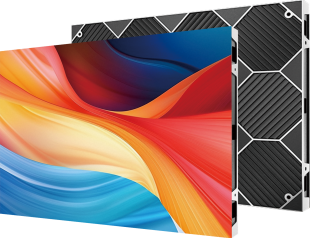

MIS Series

Pixel Pitch (mm): 1.25 / 1.53 / 1.86 / 2.5

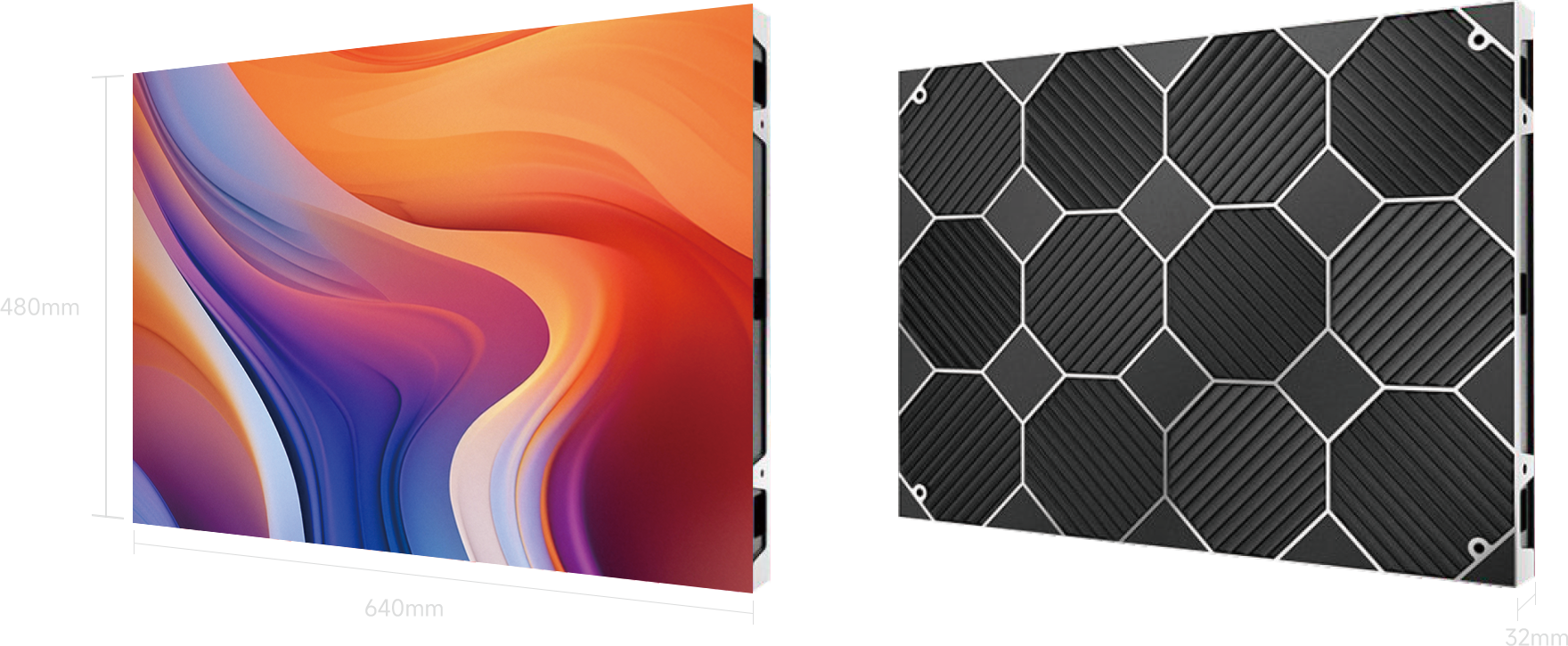

Cabinet Size (mm): 640×480×32

Concise Appearance

The MIS Series features a sleek honeycomb frame, with each cabinet precisely crafted using CNC machining.
This ensures structural stability under stress while enhancing heat dissipation for long-term performance.

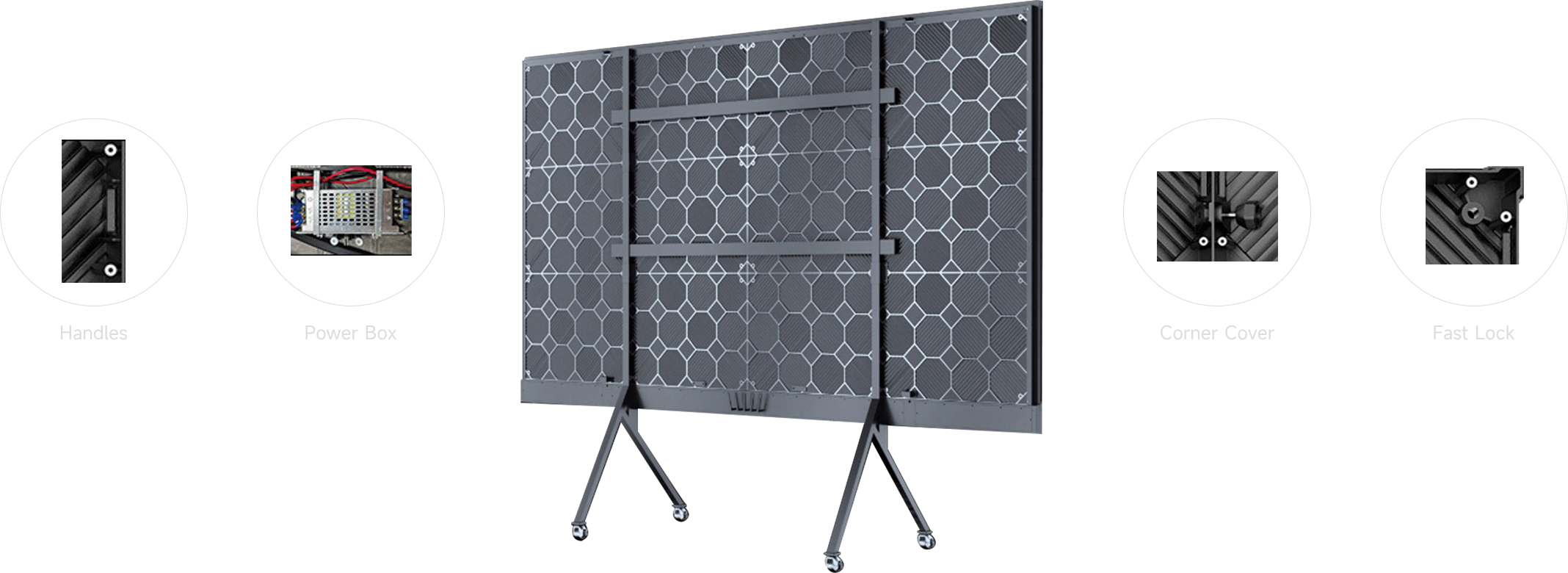

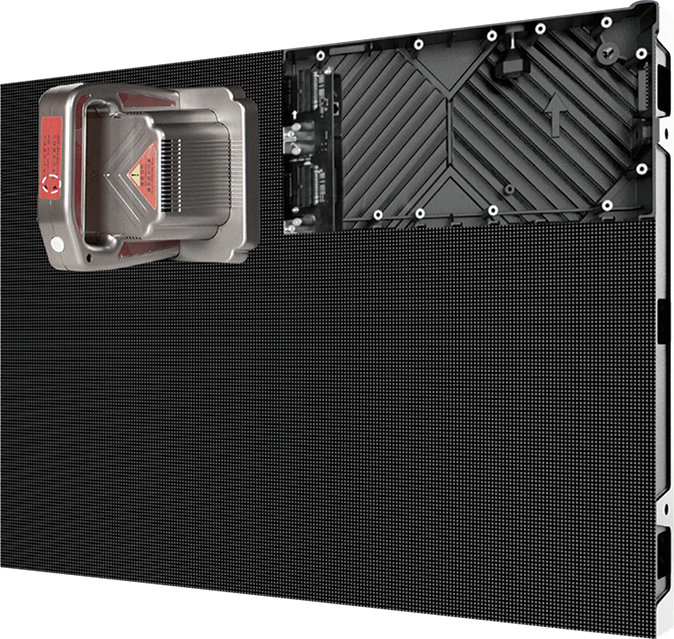

Front Maintenance

Designed with full front maintenance support, the MIS Series allows quick and convenient servicing, reducing downtime and simplifying operations.

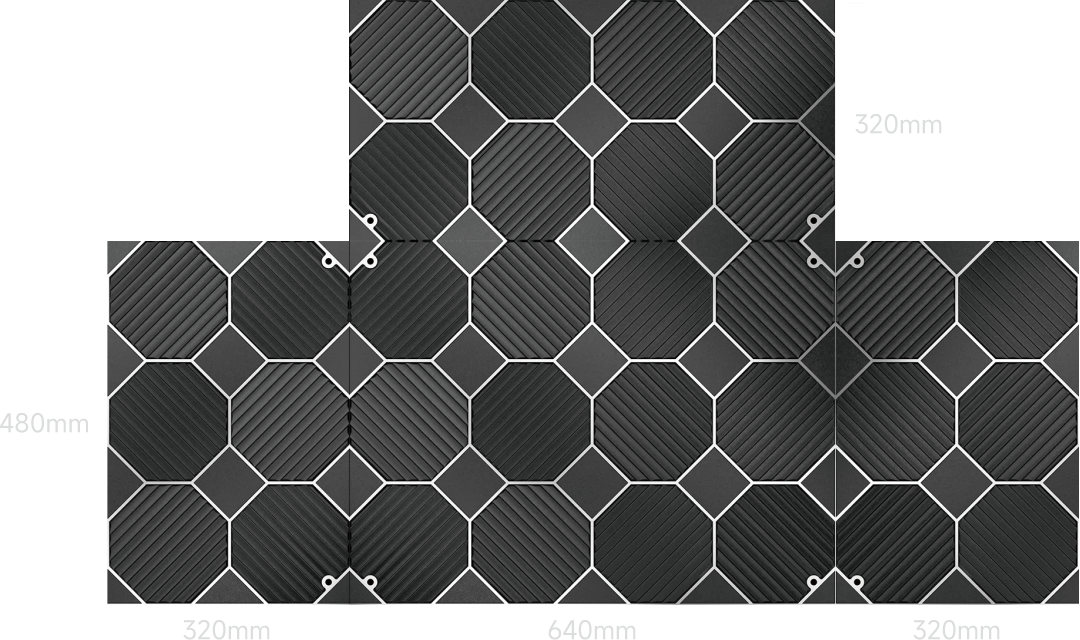

Cable-Free Splicing

Cabinet-to-cabinet installation is achieved without cables, delivering a clean and seamless splicing effect that improves both aesthetics and reliability.

Superior Visual Performance

With high resolution, high refresh rate, and excellent grayscale levels, the MIS Series provides smooth, flicker-free visuals.
A high degree of color gradient ensures vibrant, accurate colors that bring content to life.

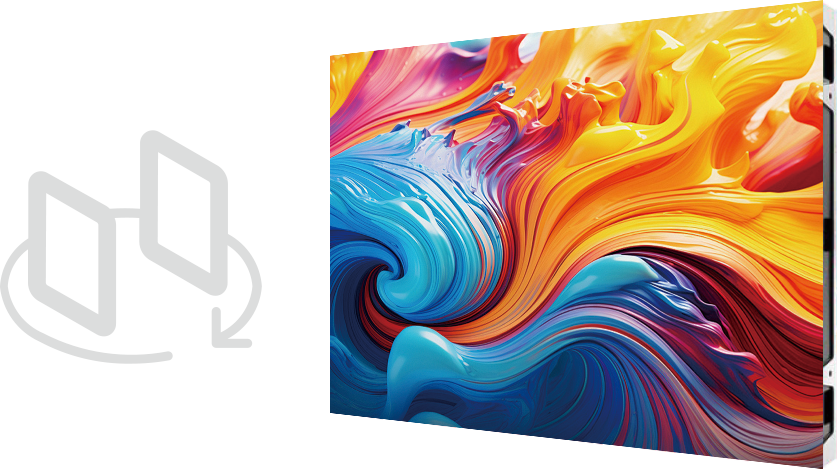

Customizable Solutions

The MIS Series is tailored to meet specific size requirements, offering flexible configurations.
Currently, it supports separated power and signal connections, ensuring precision for unique installation needs.

Dual Redundancy Support

For mission-critical environments, the MIS Series supports dual backup for both power and signal. This design prevents unexpected downtime and guarantees stable operation.

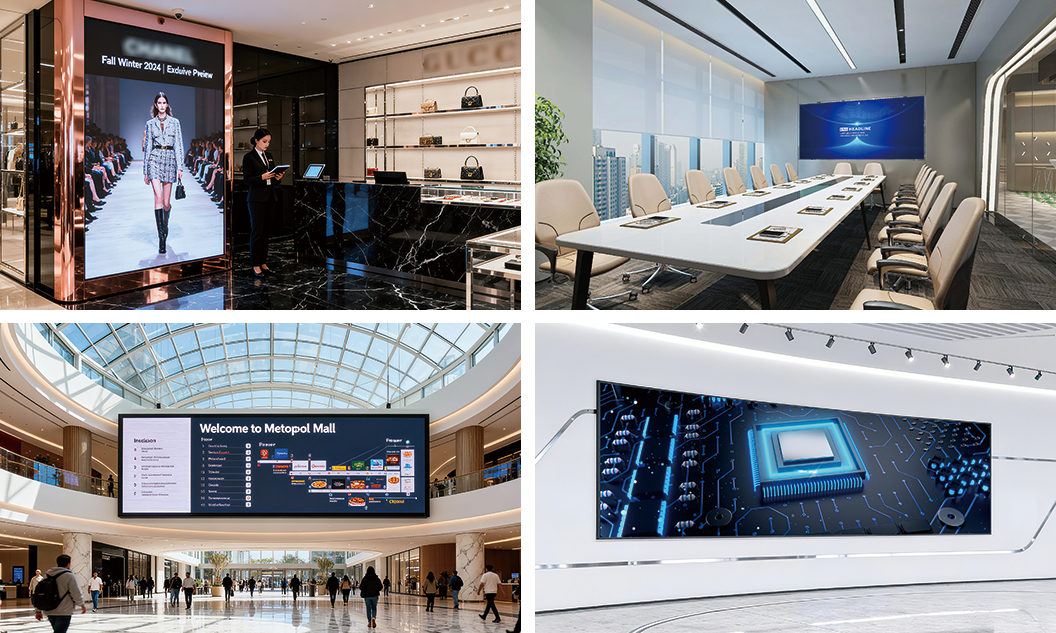

Application Scenarios

The MIS Series is ideal for corporate commerce, broadcast studios, command and control centers, retail environments, and a wide range of commercial applications.

Parameters

Items	MIS125	MIS153	MIS186	MIS25
Pixel Pitch (mm)	1.25	1.53	1.86	2.5
Module Size (W×H)	320×160mm
Cabinet Size (mm)	640×480×32
Module Arrangement (W×H)	2×3
Cabinet Resolution (W×H)	512×384	416×312	344×258	256×192
Scan Mode	1/64	1/52	1/43	1/32
Viewing Angle (H/V)	120°/120°
Cabinet Weight (kg)	7.5
Protection Level	IP30
Maintenance	Front
Brightness (nits)	≥500
Color Temperature (K)	6,500–8,500
Contrast Ratio	≥4,000:1
Frame Rate (Hz)	60
Grayscale (bit)	≥13
Refresh Rate (Hz)	3,840
Peak Power Consumption (W/PC)	≤120	≤110	≤105	≤90
Average Power Consumption (W/PC)	50–80	30–45	25–45	20–40
Input Voltage	AC100V–AC200V
Flatness	≥98%
High Voltage Safety Protection	Automatic leakage protection
Screen Temperature Rise	≤5°C
Operating Environment	-10 ℃ ~ 60 ℃, 35% ~ 75% RH, no condensing
