What Is The Difference Between LED Soft Film Group And Regular LED Module?

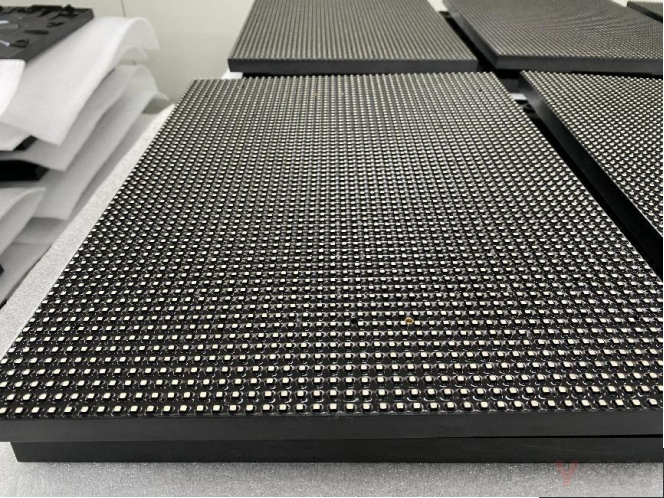

Soft module is relative to the conventional led display module, the normal size group is made of hard board PCB board and bottom shell mask, without any softness, a hard board. In the face of curvature, the curved place either cannot be used, or it needs to be made by special processes such as cutting corners.

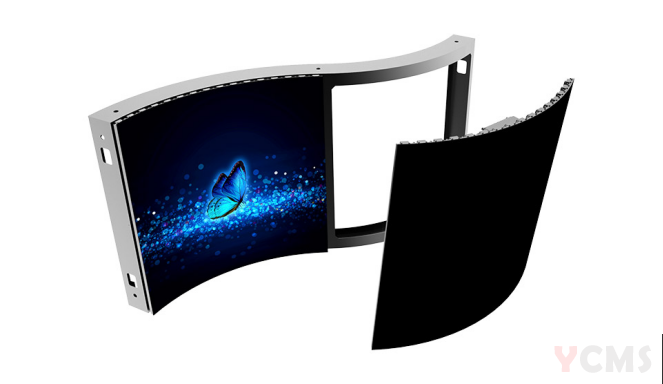

Led soft module in order to solve the above problems and was developed, led soft module is also known as led flexible screen, led soft screen, because of its module flexibility is relatively high, foldable, flexible.

Led soft module and conventional led electronic screen in the display principle is the same, the difference is the use of flexible PCB and bottom mask, making the flexibility of the module is particularly good, can achieve 120 degrees of folding.

So where Are The Led Soft Modules Used?

1, Arc Led Screen:

If it is an internal arc led display and the arc is not very large or better to do, as long as the steel structure of the display is made into an arc with the conventional indoor display module installation can be completed. However, if the inner arc arc is relatively large, or the outer arc, then the conventional display module can not be produced, and the led soft module is very good to produce.

2, Cylindrical Led Screen:

In some hotels, conference rooms, bars, etc., there are many columns in the lobby are cylindrical, the designer will design these columns into a display screen, play some special videos to enhance the decoration grade or create a special atmosphere, it is very complicated to do with conventional screens, and led soft modules to make it easy.

3, Waves, Ribbons And Other Special Shapes:

Wave, ribbon some special shape of the position is often used by the designer concept, how to achieve the real need for led display manufacturers to do, in the long road to explore, led soft module successfully solved this problem.

There are many applications of led soft modules, mainly the application of its module flexibility is relatively high, foldable, flexible, as long as your idea can be achieved with this feature can be used, dragon luster to provide you with a comprehensive display system solution

LED Soft Screen Features:

Strong Installation Adaptability:

It can achieve a variety of opposites, such as spherical, curved, etc., and can be installed in horizontal and longitudinal bending deformation, without application scenario restrictions.

Cool:

Transparent material optional, creative double-sided display, to achieve real 3D

Easy maintenance: The original LED embedded bar structure can be used on site to achieve fast maintenance;

Light:

weight is only 10kg/㎡, easy to install and handle products, save installation time and cost;

Permeability: pixel strip structure design, permeability can reach 60%, low wind resistance, can also be used safely in windy weather.

Thin:

the thickness is only about 10mm, occupying small space, saving installation and transportation space

High protection:

protection level up to IP65, no fear of bad rain weather, outdoor safe use;

Conventional LED Display Features:

High Brightness:

outdoor brightness is greater than 8000mcd/m2, it is a large display terminal supporting outdoor all-weather use; Indoor brightness greater than 2000md/m2;

Long Life:

LED life of up to 100,000 hours, this parameter generally refers to the design life, brightness dark also counts;

Large Viewing Angle:

indoor viewing Angle can be greater than 160 degrees, outdoor viewing Angle can be greater than 120 degrees. The size of the viewing Angle depends on the shape of the LED.

LED Soft Screen And Conventional LED Display Which Is Better

Through the above characteristics analysis, we know that the LED soft screen is lighter, thinner, transparent, easy to install and maintain, flexible bending, and more energy saving than the conventional LED display. It doesn't mean which one of them is good. This needs to see the specific application field and display needs. For example, the traditional use of squares, hotels, commercial streets and other places, just display video advertising, etc., it is recommended that the traditional full-color LED display application effect will be better; If it is the field of stage design, nightclubs and building surface decoration, which requires cool and personalized, then the LED soft screen will be better, which can be made into various shape effects such as spherical or curved.
